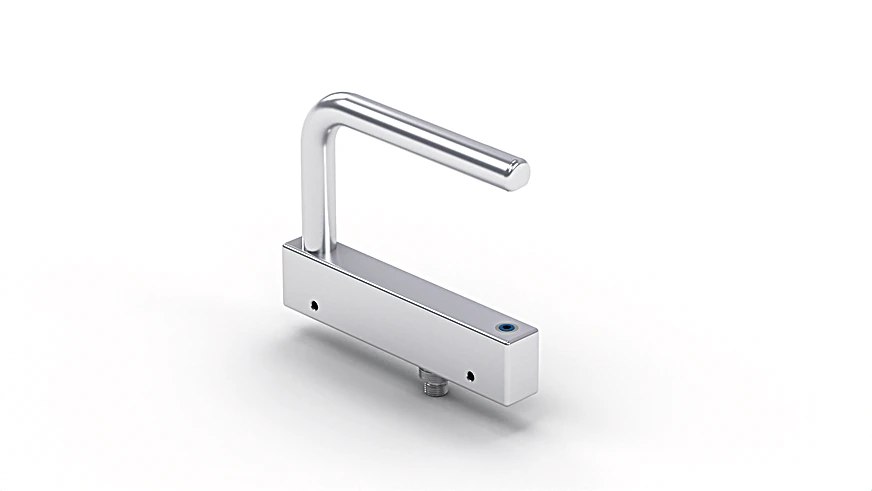

Wenglor P1HJ006 Fork Sensor

Fork Sensor.

$730.00
Part Number
  • P1HJ006
Highlights...

Features

  • Recognition of transparent objects
  • Collimated laser beam (Ø 0.35 mm diameter over the entire fork width)
  • Rugged, corrosion-free V4A stainless steel housing in hygienic design
  • Teach-in key and external teach-in

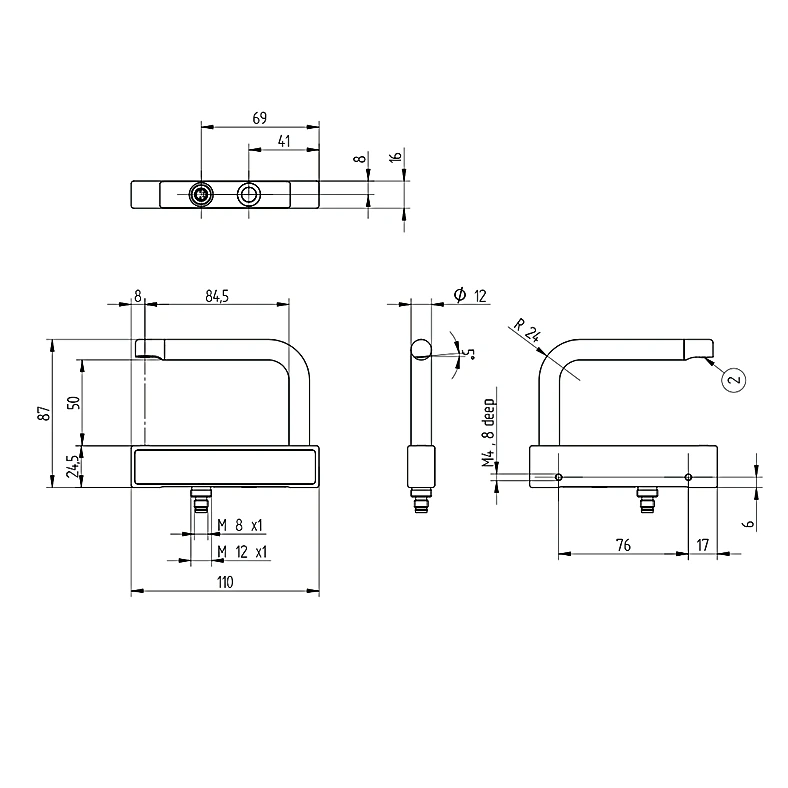

  • Fork Width: 50 mm
  • Smallest Recognizable Part: 40 µm
  • Smallest Detectable Gap: 50 µm
  • Switching Hysteresis: < 10 %
  • Light Source: Laser (red)
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: 0.35 mm
  • Repeat Accuracy: < 5 µm
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 20 mA
  • Switching Frequency: 10 kHz
  • Response Time: 50 µs
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Teach Mode: NT, MT
  • Protection Class: III
  • Setting Method: Teach-In
  • Housing Material: Stainless steel, V4A (1.4404/316L)
  • Optic Cover: Glass
  • Degree of Protection: IP69K

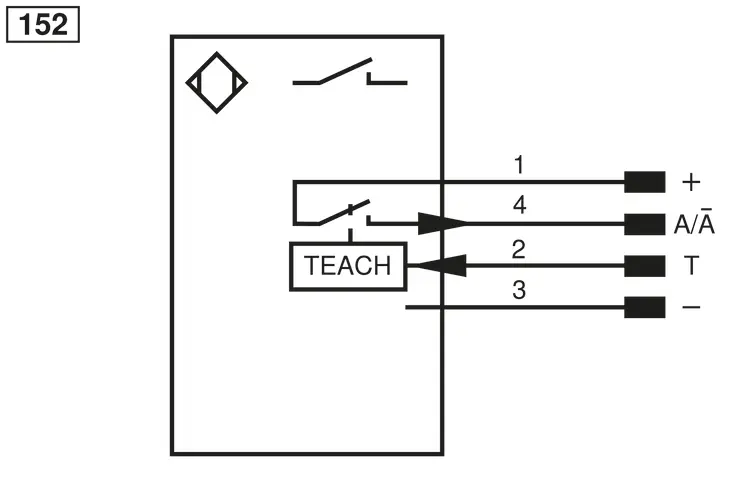

  • Connection: M8 × 1; 4-pin
  • Weight: 268 g
  • MTTFd (EN ISO 13849-1): 1,615.89 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • Approvals: Ecolab, FDA compliant
  • PNP NO: yes
  • External teach-in input: yes
  • Circuit: NC, NC/NO, NO
Fork sensors have a collimated laser beam with a very small diameter of 0.35 mm over the entire fork width. As a result, they're capable of detecting extremely small parts down to a size of just 40 µm and even transparent objects at high speeds of up to 10 kHz. The innovative layout of the fork sensors in hygienic design permits various fork widths within a range of 50 to 220 mm, and allows contamination and cleaning agents to flow off of the surface in an ideal manner.
