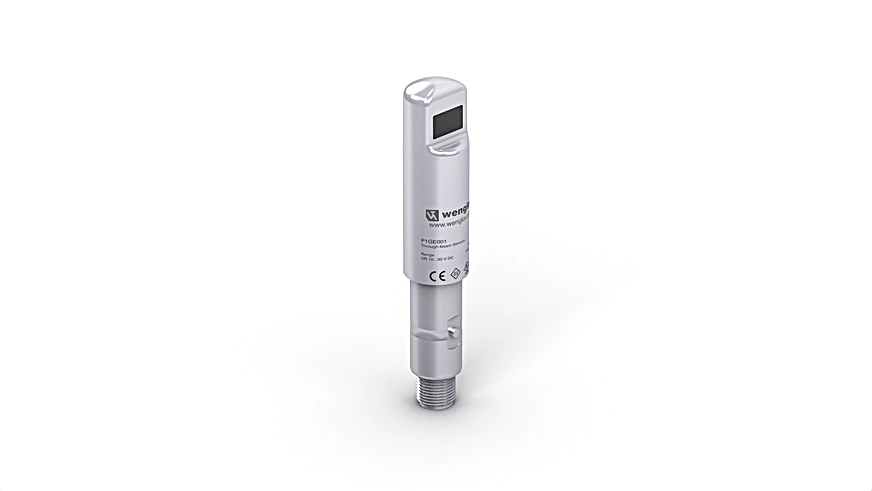

Wenglor P1GE001 Through-Beam Sensor

Through-Beam Sensor.

$315.00
Part Number
  • P1GE001
Highlights...

Features

  • Hygienic design makes it easy to clean
  • Made with food safe materials that are FDA approved
  • Waterproof (IP68/IP69K)
  • External teach-in
  • Range: 4,000 mm
  • Switching Hysteresis: < 15 %
  • Light Source: Red Light
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 3 °
  • Sensor Type: Receiver
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Switching Frequency: 500 Hz
  • Response Time: 1 ms
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Teach Mode: NT, MT, XT
  • Protection Class: III
  • Setting Method: Teach-In
  • Housing Material: Stainless steel, V4A (1.4404/316L)
  • Degree of Protection: IP69K, IP68
  • Connection: M12 × 1; 4-pin
  • Optic Cover: Plastic, PMMA (FDA)
  • Weight: 105 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • Approvals: Ecolab, FDA compliant
  • PNP NC: yes
  • RS-232 with Adapterbox: yes
  • External teach-in input: yes
  • Circuit: NC, NC/NO, NO
  • Complementary Products: Adapterbox A232, PNP-NPN Converter BG2V1P-N-2M, Software

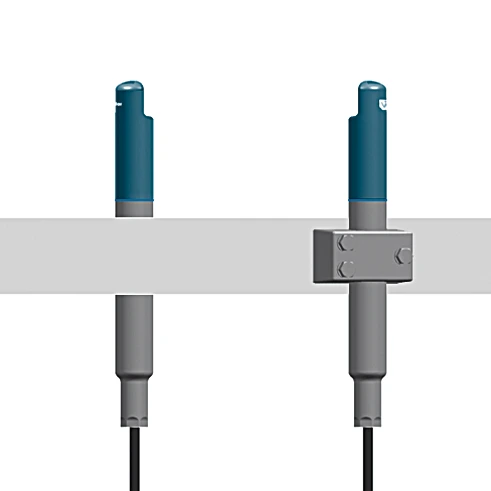

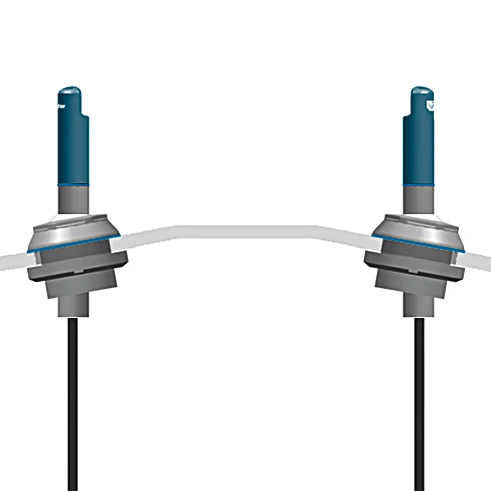

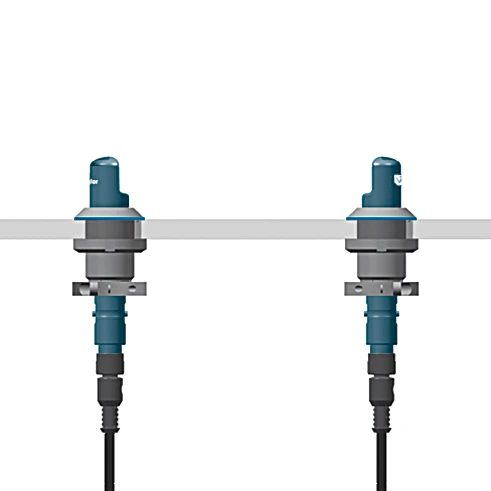

The sensors are distinguished by their innovative format, which allows dirt and cleaning agents to flow off them. A large number of components form a complete system that integrates seamlessly into the machine. The laser-welded 316L stainless steel housing (1.4404/V4A) is corrosion-free and resistant to cleaning agents. Mounted flush with a bayonet lock and fitted with undetachable optics, it is also ideal for environments that require a great deal of cleaning. Setting is performed by external teach-in.
