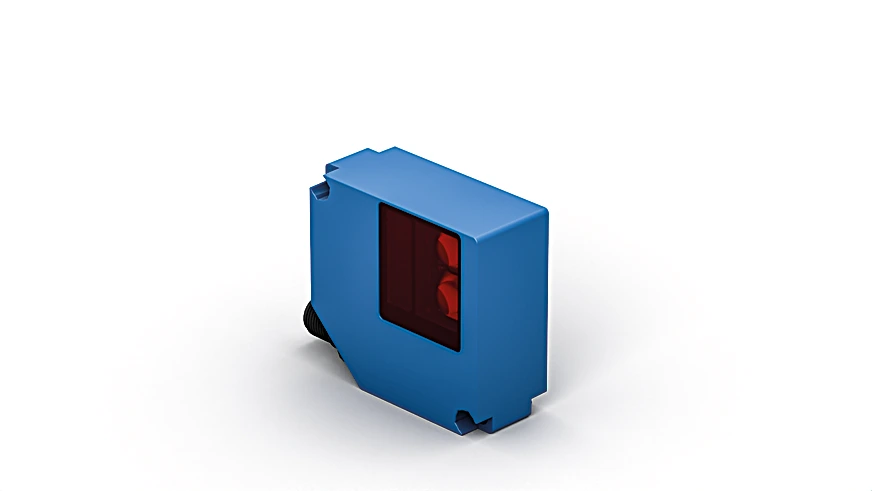

Wenglor P1EL101 Retro-Reflex Sensor with light band

Retro-Reflex Sensor with light band.

$357.00
Part Number
  • P1EL101
Highlights...

Features

  • Compensation of uneven conveyor belt areas with dynamic teach-in

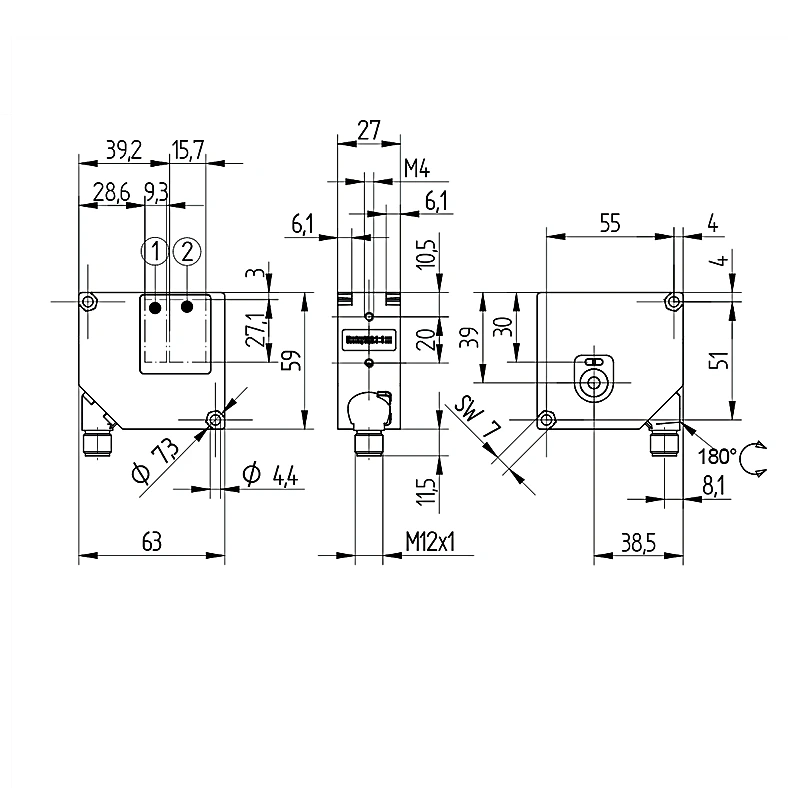

  • Flexible mounting options thanks to 180° rotatable plug
  • Precise front edge detection with non-uniform objects
  • Dynamic readjustment of the switching threshold
  • Range: 2,500 mm
  • Reference Reflector/Reflector Foil: Z90R007
  • Smallest Recognizable Part: see table 1
  • Light Source: Laser (red)
  • Wavelength: 650 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Max. Ambient Light: 10,000 Lux
  • Light Strip Height: 27 mm
  • Supply Voltage: 12 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Switching Frequency: 275 Hz
  • Response Time: 1.8 ms
  • Temperature Range: -22°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • FDA Accession Number: 2310248-000

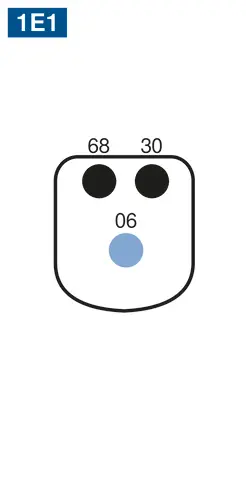

  • Setting Method: Teach-In
  • Housing Material: Plastic, ABS-GF, Plastic, PC
  • Degree of Protection: IP67, IP68

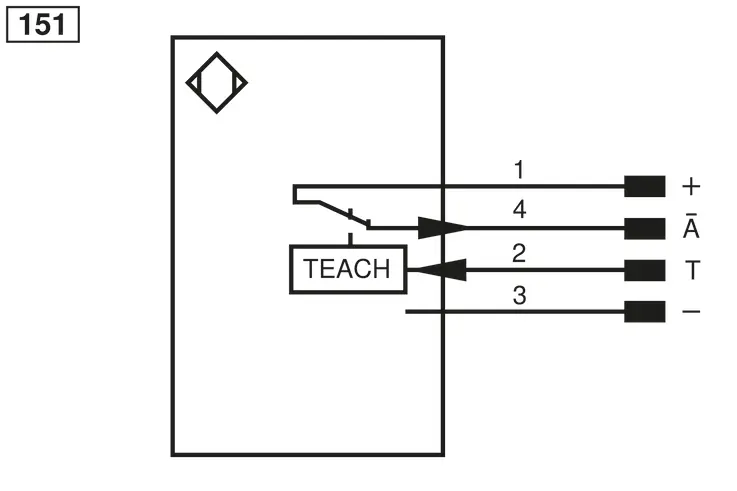

  • Connection: M12 × 1; 4-pin
  • Optic Cover: Plastic, PMMA
  • Weight: 62 g
  • MTTFd (EN ISO 13849-1): 1,942.78 a
  • Scope of delivery: 1 × Z1PE002 mounting set, 1 × initial start-up instructions, 1 × sensor
  • PNP NC: yes
  • Distance, Sensor to Reflector: 0,35 to 1,60 m, 1,60 to 2,50 m
  • Smallest Recognizable Part: 4 mm, 10 mm
  • Z90R004: 0.4 to 1.6 m
  • Z90R005: 0.4 to 1.6 m
  • Z90R007: 0.35 to 2.5 m
  • Z90R008: 0.35 to 2.5 m
  • Z90R009: 0.35 to 2.5 m
  • ZRDF03K01: 0.4 to 1.6 m
  • ZRDF10K01: 0.4 to 1.6 m
  • Complementary Products: PNP-NPN Converter BG2V1P-N-2M
The Retro-Reflex Sensor with Light Band scans a significantly larger range than a retro-reflex sensor with a dot-shaped light spot. This makes it ideally suitable for reliably detecting the front edges of objects with irregular shapes or variable sizes. The sensor's collimated laser light band is absolutely homogeneous and can thus be precisely aligned to the conveyor belt's level. The sensor detects objects as small as just four millimeters. The compact format can be integrated into the smallest of spaces, for example in the side panels of conveyor systems.
