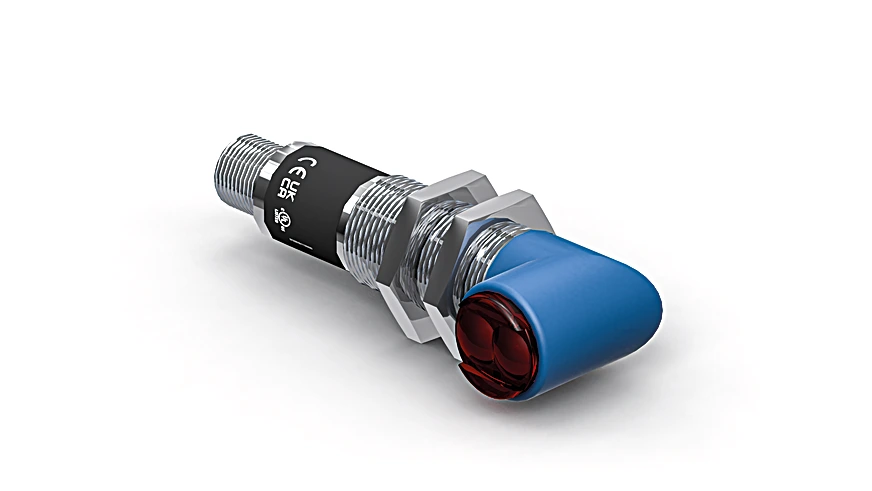

Wenglor P18L003 Retro-Reflex Sensor Universal

Retro-Reflex Sensor Universal.

$199.00
Part Number
  • P18L003
Highlights...

Features

  • Stainless steel housing
  • Condition monitoring
  • IO-Link 1.1
  • Red light
  • Adjustable switching distance
  • Range: 6,000 mm
  • Reference Reflector/Reflector Foil: RQ100BA
  • Switching Hysteresis: < 15 %
  • Light Source: Red Light
  • Polarization Filter: yes
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 5 °
  • Optics: Two-Lens Optic
  • Supply Voltage: 10 to 30 V DC
  • Supply Voltage with IO-Link: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Switching Frequency: 1,000 Hz
  • Switching frequency (speed mode): 1,500 Hz
  • Response Time: 0.5 ms
  • Response time (speed mode): 0.35 ms
  • Temperature Drift: < 10 %
  • Temperature Range: 14°F to 140°F
  • Switching Output Voltage Drop: < 2 V
  • PNP Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Interface: IO-Link V1.1
  • Protection Class: III

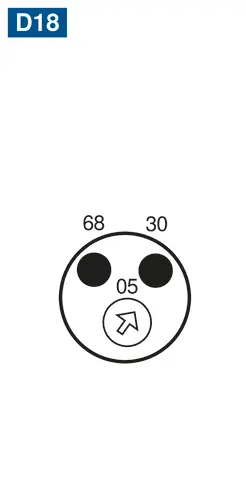

  • Setting Method: Potentiometer
  • Housing Material: Stainless steel, V2A (1.4305/303), Plastic, PBT
  • Full Encapsulation: yes
  • Degree of Protection: IP67

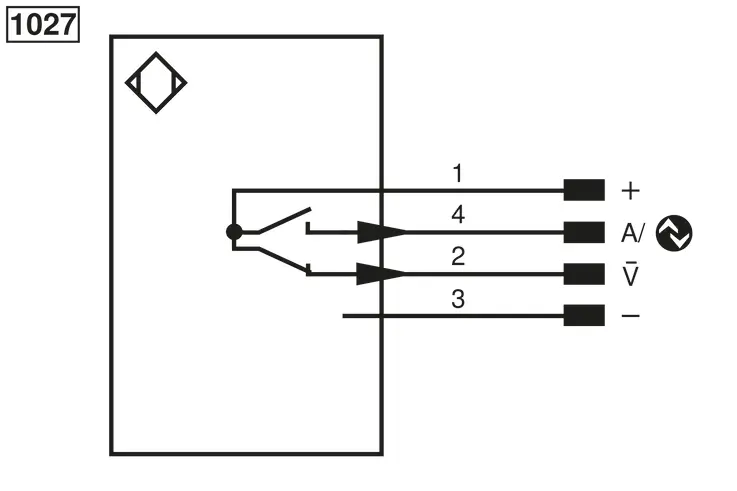

  • Connection: M12 × 1; 4-pin
  • Weight: 39 g
  • MTTFd (EN ISO 13849-1): 3,126.88 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M18-E003 hex nut, 1 × sensor
  • IO-Link: yes
  • Contamination Output: yes
  • PNP NO: yes
  • Output: Push-pull, NPN, PNP
  • Circuit: inactive, Error output, NC, NC+NO, NO
  • Other parameters: Off-delay, On-delay, Mode of operation, Hysteresis, Switching point, Emitted light
  • RQ100BA: 0.02 to 6 m
  • RE18040BA: 0.02 to 3.3 m
  • RQ84BA: 0.01 to 4.5 m
  • RR84BA: 0.02 to 4.5 m
  • RE9538BA: 0.02 to 1.5 m
  • RE6151BM: 0.01 to 4.5 m
  • RE6151BA: 0.02 to 2.3 m
  • RR50_A: 0.02 to 4 m
  • RE6040BA: 0.02 to 4 m
  • RE8222BA: 0.01 to 2 m
  • RR34_M: 0.01 to 2.4 m
  • RE3220BM: 0.01 to 1.6 m
  • RE6210BM: 0.01 to 1.6 m
  • RR25_M: 0.02 to 1.6 m
  • RR25KP: 0.02 to 1.4 m
  • RR21_M: 0.01 to 1.6 m
  • ZRAE02B01: 0.02 to 3 m
  • ZRME01B01: 0.02 to 1 m
  • ZRME03B01: 0.02 to 2.8 m
  • ZRMR02K01: 0.02 to 1.1 m
  • ZRMS02_01: 0.01 to 1.5 m
  • RF505: 0.06 to 1.6 m
  • RF255: 0.06 to 1.2 m
  • RF508: 0.06 to 1.6 m
  • RF258: 0.06 to 1.2 m
  • ZRDF__K01: 0.06 to 4 m
  • Complementary Products: Reflector, Reflector Foil, IO-Link Master, Software
The retro-reflex sensor works with red light and a reflector. It also reliably detects objects with reflective or glossy surfaces at high speeds. Thanks to its great range, the sensor can, for example, be used to manage feed and presence controls as well as to detect objects on wide feed belts. The IO-Link interface can be used to configure retro-reflective barriers (PNP/NPN, NC/NO, switching distance), as well as for reading out switching statuses and signal values.
