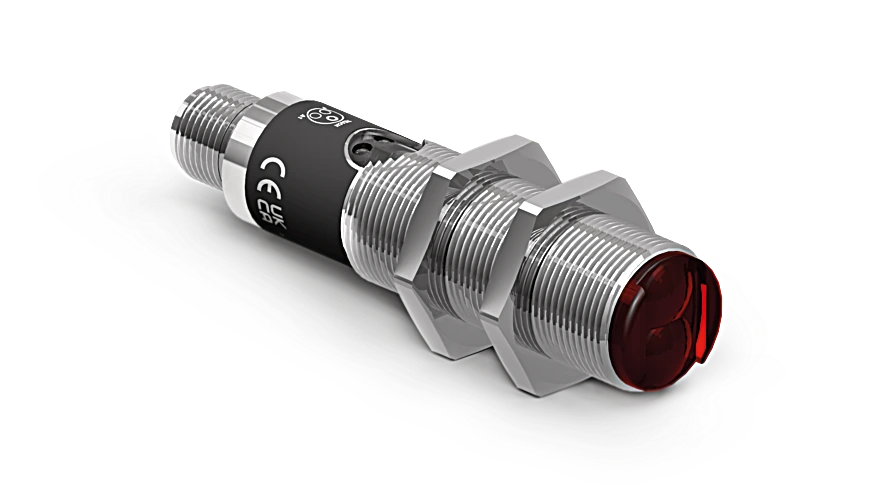

Wenglor P18H002 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$231.00
Part Number
  • P18H002
Highlights...

Features

  • Stainless steel housing
  • IO-Link 1.1
  • Reliably detect objects against any background
  • Red light
  • Teach-in, external teach-in
  • Range: 120 mm
  • Setting Range: 35 to 120 mm
  • Switching Hysteresis: < 5 %
  • Light Source: Red Light
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Principle: Triangulation
  • Supply Voltage: 10 to 30 V DC
  • Supply Voltage with IO-Link: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 20 mA
  • Switching Frequency: 750 Hz
  • Switching Frequency (interference-free mode): 500 Hz
  • Response time (interference-free mode): 1 ms
  • Response Time: 0.67 ms
  • Temperature Drift: < 5 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • NPN Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Teach Mode: HT, VT
  • Interface: IO-Link V1.1
  • Protection Class: III
  • Setting Method: Teach-In
  • Housing Material: Stainless steel, V2A (1.4305/303)
  • Full Encapsulation: yes
  • Degree of Protection: IP67, IP68
  • Connection: M12 × 1; 4-pin
  • Weight: 37 g
  • MTTFd (EN ISO 13849-1): 1,244.24 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M18-E003 hex nut, 1 × sensor
  • NPN NO: yes
  • External teach-in input: yes
  • IO-Link: yes

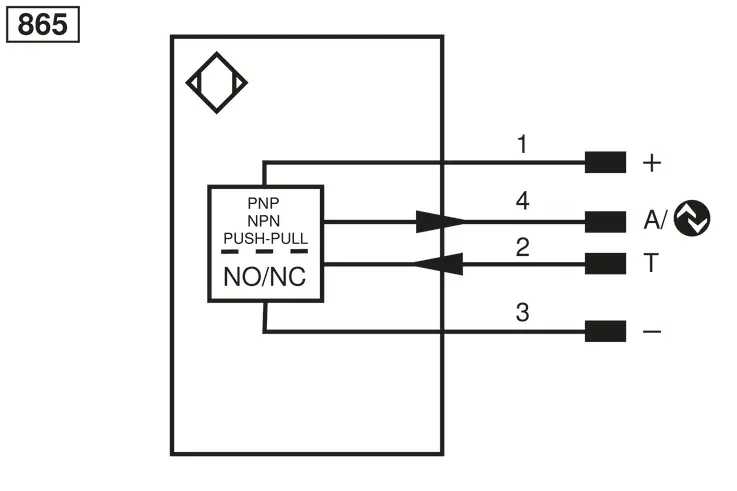

  • Output: Push-pull, NPN, PNP
  • Circuit: Error output, NC, NC+NO, NO
  • Other parameters: Off-delay, On-delay, Mode of operation, Switching point, Emitted light, Teach-in mode
  • Detection Range: 60 mm, 120 mm
  • Light Spot Diameter: 2 mm, 4 mm
  • Complementary Products: Dust Extraction Tube STAUBTUBUS-01, Software, IO-Link Master
The reflex sensor with background suppression works with red light according to the angle measurement principle and is suitable for the detection of objects against any background. The sensor has almost the same switching distance, regardless of the color, shape and surface of the objects. Minimal height differences can be detected with the sensors and, for example, various parts can be reliably differentiated from each other. The IO-Link interface can be used to configure reflex sensors (PNP/NPN, NC/NO) and to output switching statuses.
