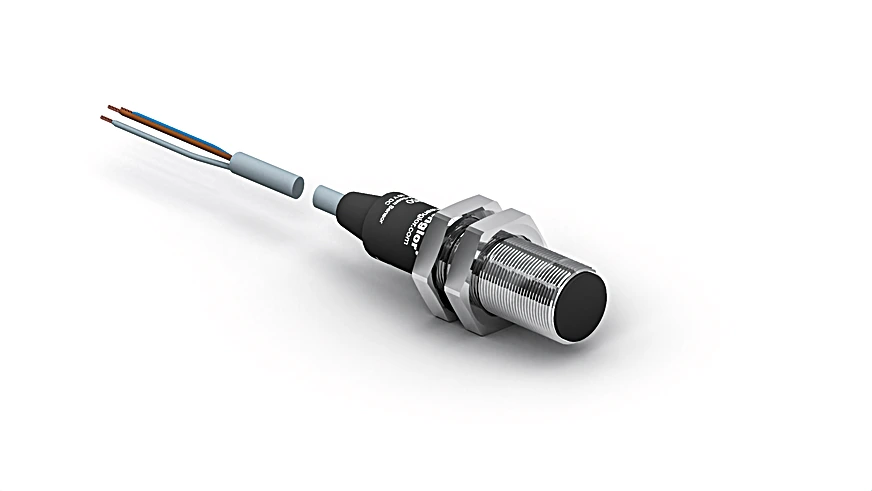

Wenglor P12E001 Through-Beam Sensor Emitter

Through-Beam Sensor Emitter.

$57.90
Part Number
  • P12E001
Highlights...

Features

  • Functions reliably with severe contamination
  • No interactive influence
  • For connection to LV250 controller
  • Light Source: Infrared Light
  • Service Life (T = 77°F): 100,000 h
  • Opening Angle: 12 °
  • Sensor Type: Emitter
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Housing Material: Brass, nickel-plated
  • Full Encapsulation: yes
  • Degree of Protection: IP67
  • Connection: M8 × 1
  • Cable length (L): 200 mm
  • Cable Jacket Material: Plastic, PUR
  • Weight: 60 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M12-E001 hex nut, 1 × sensor
  • For connection to LV250 control module: yes
  • Complementary Products: Controller LV250, Connecting Line ZCGL001
These through-beam sensors work in combination with the LV250 controller. They can be freely positioned as desired. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments.
