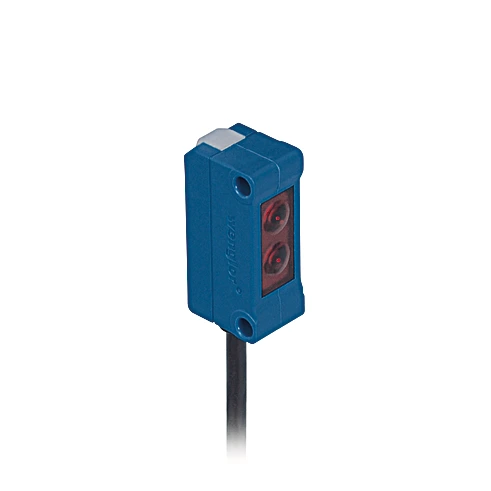

Wenglor OYKS934 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$526.00
Part Number
  • OYKS934
Highlights...

Features

  • Low current consumption < 15 mA
  • High switching frequency
  • Laser light
  • Miniature design
  • Range: 80 mm
  • Setting Range: 18 to 80 mm
  • Switching Hysteresis: < 10 %
  • Light Source: Laser (red)
  • Wavelength: 655 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: see table 1
  • Principle: Triangulation
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 15 mA
  • Switching Frequency: 1,900 Hz
  • Response Time: 263 µs
  • Temperature Drift: < 5 %
  • Temperature Range: -40°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • FDA Accession Number: 1120743-000

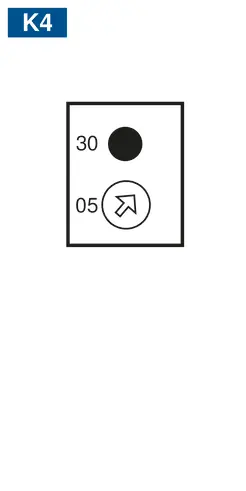

  • Setting Method: Potentiometer
  • Housing Material: Plastic, PBT
  • Full Encapsulation: yes
  • Degree of Protection: IP67
  • Connection: M12 × 1; 4-pin
  • Cable length (L): 200 mm
  • Weight: 22 g
  • Scope of delivery: 1 × BEF-SET-01 mounting set, 1 × initial start-up instructions, 1 × sensor
  • PNP NC, PNP NO: yes
  • Circuit: NC, NC+NO, NO
  • Detection Range: 40 mm, 80 mm
  • Light Spot Diameter: 1,5 mm, 1 mm
  • Complementary Products: PNP-NPN Converter BG7V1P-N-2M
These sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape and surface characteristics of the object have practically no influence on sensor switching performance.
