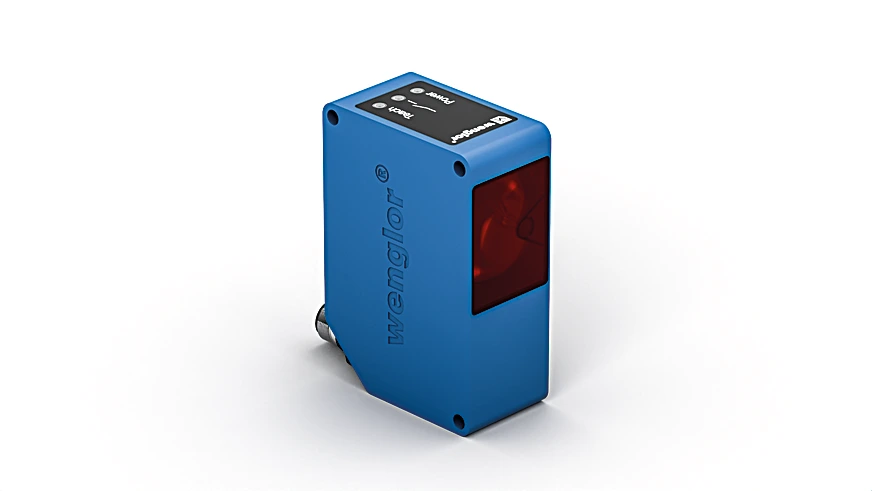

Wenglor OY2TA403AT235 Laser Distance Sensor Time of Flight

Laser Distance Sensor Time of Flight.

$662.00
Part Number
  • OY2TA403AT235
Highlights...

Features

  • Working range up to 4 m
  • Scratch-resistant optic cover
  • Very high switching frequency
  • Working Range: 0 to 4,000 mm
  • Setting Range: 250 to 4,000 mm

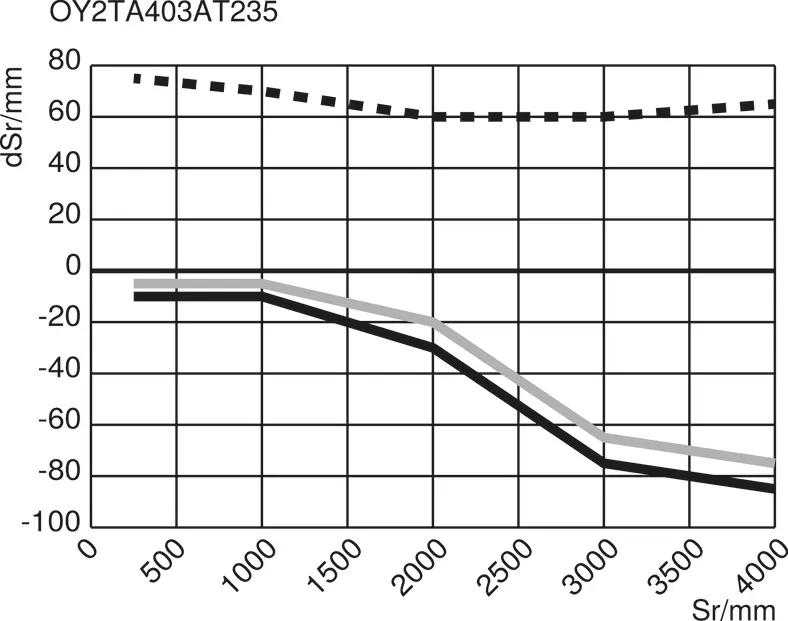

  • Switching Hysteresis: < 25 mm
  • Light Source: Laser (red)
  • Wavelength: 660 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 2
  • Beam Divergence: < 2 mrad
  • Max. Ambient Light: 10,000 Lux
  • Reflector required: no
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 70 mA
  • Switching Frequency: 1,000 Hz
  • Response Time: 500 µs
  • Temperature Drift: < 2 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • FDA Accession Number: 0820345-001
  • Setting Method: Teach-In
  • Housing Material: Plastic, ABS, Plastic, PC
  • Optic Cover: Plastic, PMMA
  • Degree of Protection: IP68

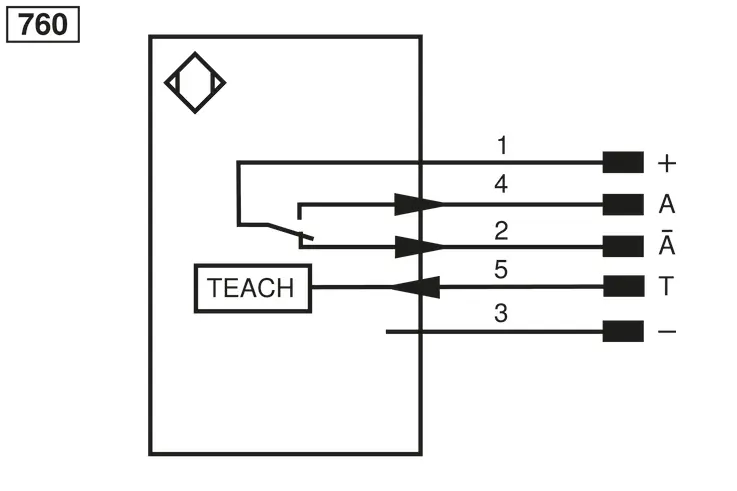

  • Connection: M12 × 1; 5-pin
  • Weight: 84 g
  • MTTFd (EN ISO 13849-1): 628.4 a
  • Scope of delivery: 1 × BEF-SET-34 mounting set, 1 × initial start-up instructions, 1 × laser warning sign, 1 × sensor
  • PNP NC, PNP NO: yes
  • External teach-in input: yes
  • Working Distance: 0 m, 4 m
  • Light Spot Diameter: 5 mm, < 8 mm
  • Complementary Products: Set Protective Housing ZST-NN-02, PNP-NPN Converter BG2V1P-N-2M
These sensors have scratch-resistant optics and measure the distance between the sensor and the object in accordance with the principle of transit time measurement. The sensor also reaches a very high switching frequency. Artificial light (e.g. from an energy saving lamp) or the background does not influence the correct sensor function. The working range is also valid for dark objects.
