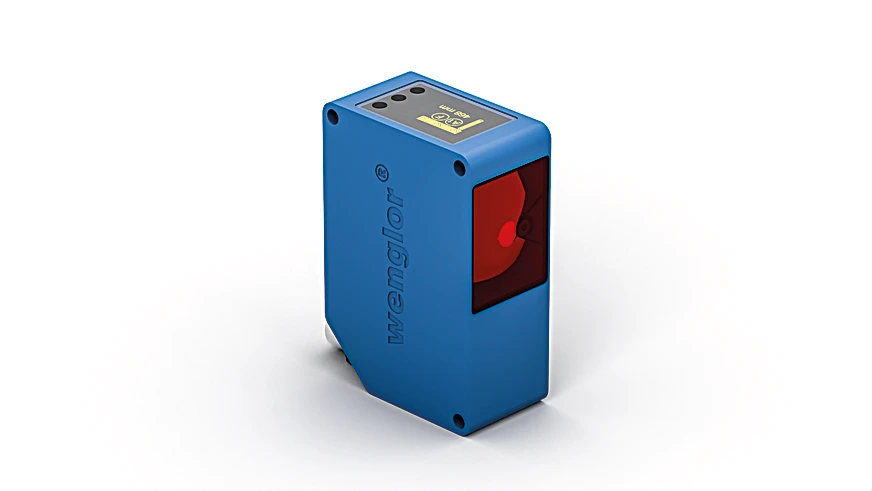

Wenglor OY2TA104P0150E Laser Distance Sensor Time of Flight

Laser Distance Sensor Time of Flight.

$1,283.00
Part Number
  • OY2TA104P0150E
Highlights...

Features

  • Secure detection of black objects also in extremely inclined positions with wintec
  • Industrial Ethernet
  • Reliable in case of glossy objects with wintec
  • Web server and graphic display for simple operation
  • Working Range: 0.1 to 10.1 m
  • Reproducibility maximum: 7 mm
  • Linearity Deviation: 20 mm
  • Light Source: Laser (red)
  • Wavelength: 660 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Beam Divergence: < 2 mrad
  • Max. Ambient Light: 5,000 Lux
  • Light Spot Diameter: see table 1
  • Reflector required: no
  • Port Type: 100BASE-TX
  • PoE Class: 1
  • Response Time: 10 ms
  • Temperature Range: -13°F to 122°F
  • Reverse Polarity Protection: yes
  • Interface: EtherNet/IP™
  • Protection Class: III

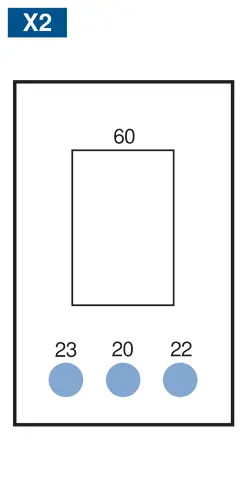

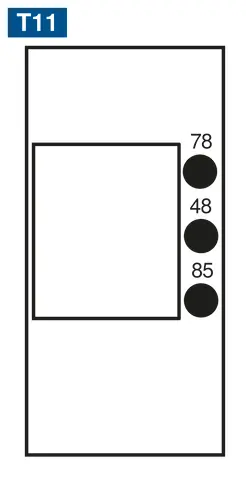

  • Setting Method: Menu (OLED), Web server
  • Housing Material: Plastic, ABS, Plastic, PC
  • Optic Cover: Plastic, PMMA
  • Degree of Protection: IP68

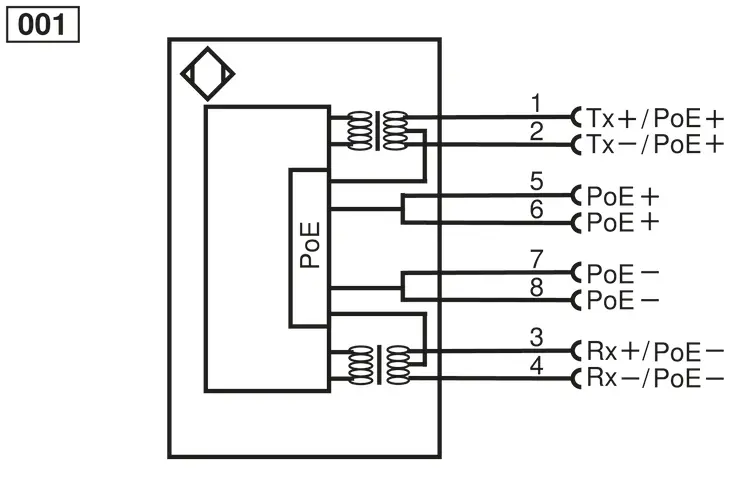

  • Connection: M12 × 1; 8-pin, X-cod.
  • Weight: 233 g
  • Scope of delivery: 1 × BEF-SET-34 mounting set, 1 × initial start-up instructions, 1 × sensor
  • EtherNet/IP™: yes
  • External teach-in input: yes
  • Working Distance: 0 m, 10 m
  • Light Spot Diameter: 5 mm, < 20 mm
  • Complementary Products: Set Protective Housing ZST-NN-02, Midspan Adapter Z0029, Switch/Junction with PoE ZAC50xN0x
These sensors have scratch-resistant optics and the emitted light can be switched off. They use the transit time measurement principle to measure the distance between the sensor and the object. Sensors with Industrial Ethernet make the analog and digital input cards at control units unnecessary, as all service and measurement data is read, analyzed and processed in the control unit in real time, without the need for conversion. Power over Ethernet connects data transfer and power supply in one cable and thus reduces the wiring effort.
