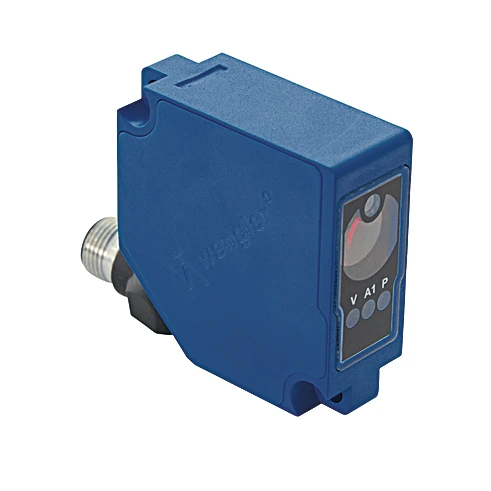

Wenglor OY1PS941 Laser Distance Sensor Time of Flight

Laser Distance Sensor Time of Flight.

$546.00
Part Number
  • OY1PS941
Highlights...

Features

  • Analog output (0 to 10 V/4 to 20 mA)
  • Secure detection of black objects also in extremely inclined positions with wintec
  • Reliable in case of glossy objects with wintec
  • 2 mutually independent switching outputs
  • IO-Link interface
  • Working Range: 50 to 3,050 mm
  • Laser Class (EN 60825-1): 1
  • Supply Voltage: 18 to 30 V DC
  • Analog Output: 0 to 10 V
  • Weight: 42 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
These sensors have scratch-resistant optics and the emitted light can be switched off. They use the transit time measurement principle to measure the distance between the sensor and the object. wenglor interference-free technology (wintec) has revolutionized sensor technology: It makes it possible to mount several sensors directly next to, or opposite each other without the sensors influencing each other. The sensors reach a very high switching frequency and use laser class 1, which is safe for the human eye.
