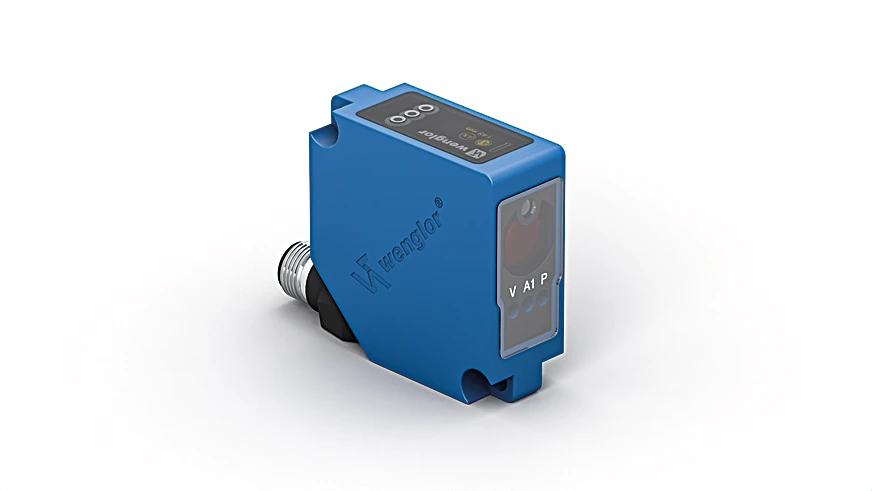

Wenglor OY1P303P0189 Laser Distance Sensor Time of Flight

Laser Distance Sensor Time of Flight.

$1,211.00
Part Number
  • OY1P303P0189
Highlights...

Features

  • Analog output (0 to 10 V/4 to 20 mA)
  • Graphical display for easy operation
  • Secure detection of black objects also in extremely inclined positions with wintec
  • Reliable in case of glossy objects with wintec
  • 2 mutually independent switching outputs
  • Working Range: 50 to 3,050 mm
  • Measuring Range: 3,000 mm
  • Reproducibility maximum: 1 mm

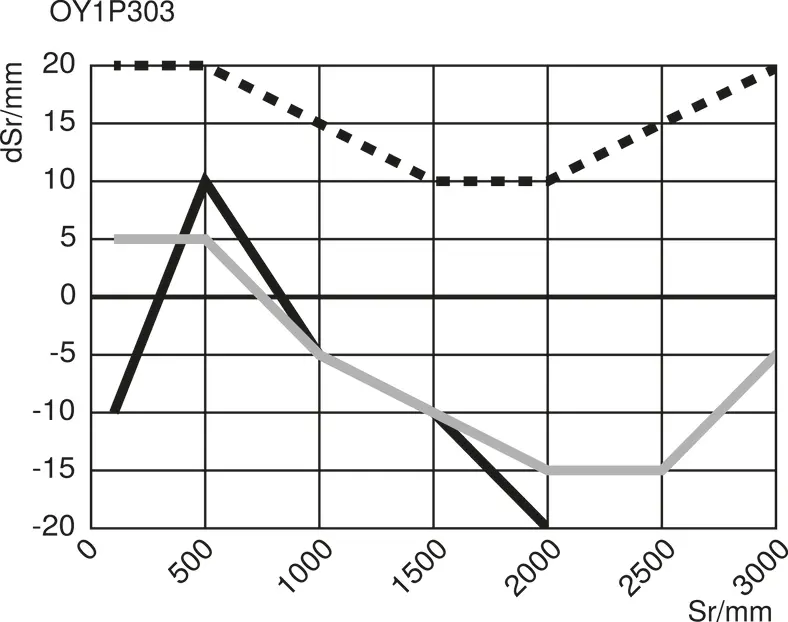

  • Linearity Deviation (200…3050 mm): 7 mm
  • Linearity Deviation (50…200 mm): 15 mm
  • Switching Hysteresis: 3 to 20 mm
  • Light Source: Laser (red)
  • Wavelength: 660 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Max. Ambient Light: 10,000 Lux
  • Beam Divergence: < 2 mrad
  • Reflector required: no
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 70 mA
  • Switching Frequency: 250 Hz
  • Measuring Rate: 1 to 500 /s
  • On-/Off-Delay: 0 to 10,000 ms
  • Temperature Drift: < 0.4 mm/K
  • Temperature Range: -40°F to 122°F
  • Number of Switching Outputs: 2
  • Switching Output Voltage Drop: < 2.5 V
  • Switching Output/Switching Current: 100 mA
  • Analog Output: 4 to 20 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Teach Mode: HT, VT, FT, TP
  • Interface: RS-232
  • Protection Class: III
  • FDA Accession Number: 2310477-000
  • Setting Method: Menu (OLED)
  • Housing Material: Plastic, ABS, Plastic, PC
  • Optic Cover: Plastic, PMMA
  • Degree of Protection: IP68

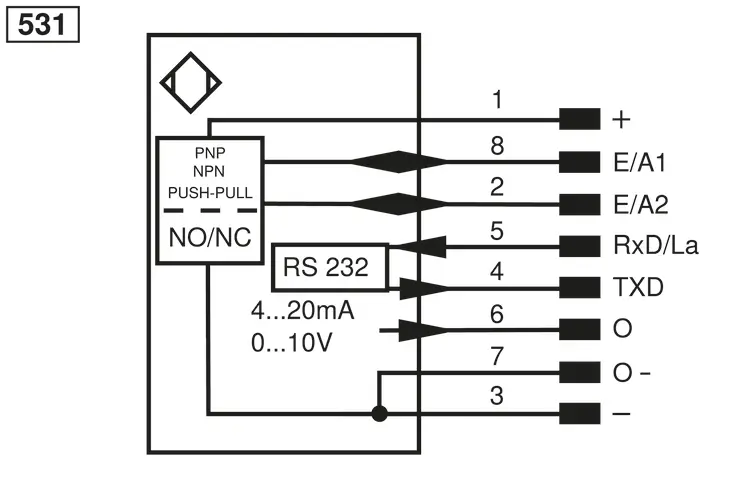

  • Connection: M12 × 1; 8-pin
  • Weight: 45 g
  • MTTFd (EN ISO 13849-1): 344.3 a
  • Scope of delivery: 1 × BEF-SET-44 mounting set, 1 × initial start-up instructions, 1 × sensor
  • Error Output: yes
  • Analog Output: yes
  • RS-232 Interface: yes
  • External teach-in input: yes
  • Analog output: 0 to 10 V, 4 to 20 mA
  • Output: Analog Output, Error Output, Push-pull, NPN, PNP, Contamination Output
  • Other parameters: Off-delay, Scale analog output, On-delay, Filter, Hysteresis, Emitted light, Teach mode, Switching point
  • Working Distance: 0 m, 3 m
  • Light Spot Diameter: 5 mm, 9 mm
  • Complementary Products: Analog Evaluation Unit AW02, Fieldbus Gateway ZAGxxxN01, EPGG001, IO-Link converter, Interface Cable S232W3, Protective Housing ZSV-0x-01, Set Protective Housing ZSP-NN-02, Software, Dust extraction tube
These sensors have scratch-resistant optics and the emitted light can be switched off. They use the transit time measurement principle to measure the distance between the sensor and the object. wenglor interference-free technology (wintec) has revolutionized sensor technology: It makes it possible to mount several sensors directly next to, or opposite each other without the sensors influencing each other. The sensors reach a very high switching frequency and use laser class 1, which is safe for the human eye.
