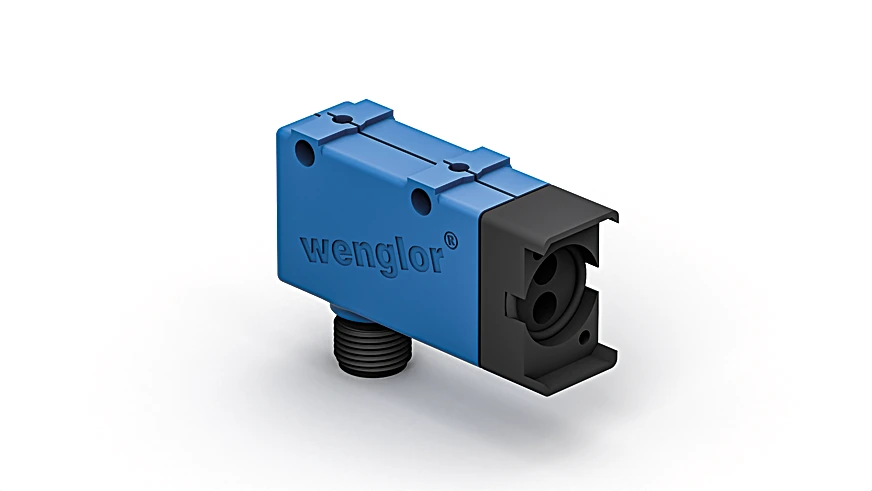

Wenglor OUM502C0002 Fiber-optic amplifier

Fiber-optic amplifier.

$342.00
Part Number
  • OUM502C0002
Highlights...

Features

  • IO-Link interface
  • Teach-in, external teach-in
  • Compact housing
  • Range: 500 mm
  • Switching Hysteresis: < 10 %
  • Light Source: Infrared Light
  • Wavelength: 875 nm
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 53.6°Furrent Consumption (Ub = 24 V): < 30 mA
  • Switching Frequency: 2.5 kHz
  • Response Time: 200 µs
  • On-/Off-Delay: 0 to 60 s
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Teach Mode: NT, MT
  • Interface: IO-Link V1.0
  • Protection Class: III
  • Setting Method: Teach-In
  • Housing Material: Plastic, PBT
  • Full Encapsulation: yes
  • Degree of Protection: IP67

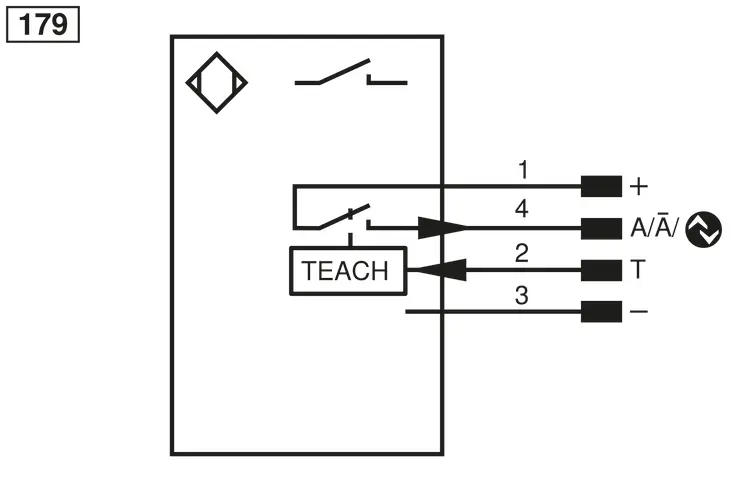

  • Connection: M12 × 1; 4-pin
  • Weight: 66 g
  • Scope of delivery: 1 × BEF-SET-02 mounting set, 1 × BEF-SET-08 mounting set, 1 × initial start-up instructions, 1 × sensor
  • External teach-in input: yes
  • IO-Link: yes
  • PNP NO: yes
  • Circuit: NC, NC/NO, NO
  • Other parameters: Off-delay, On-delay
  • Complementary Products: Glass Fiber-Optic Cable, IO-Link Master, PNP-NPN Converter BG2V1P-N-2M, Software
These sensors are equipped for use with glass fiber optic cables but can be used with or without one. The transmitter and receiver are located in a single housing. The sensor evaluates transmitted light reflected back from the object and the output is switched as soon as an object passes the selected range. Bright objects reflect more light than dark objects, and can thus be recognized from greater distances.
