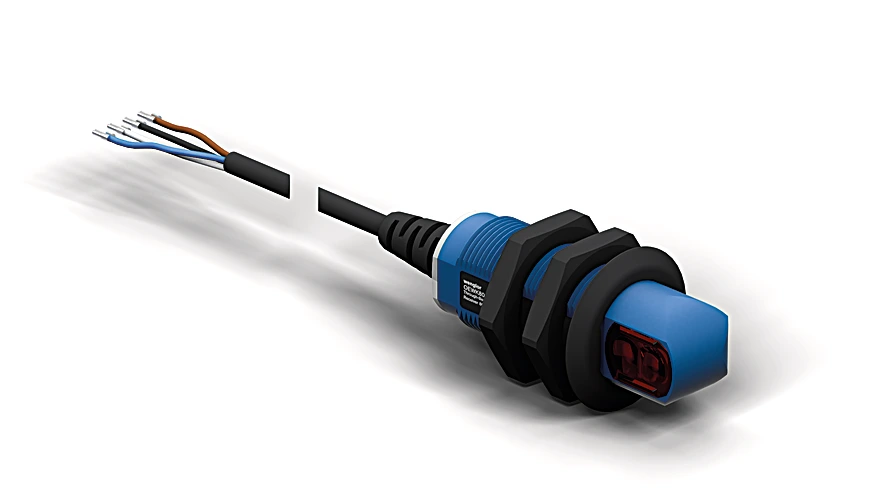

Wenglor OTWK502A0091 Reflex Sensor Energetic

Features

• Clever inclusive mounting technology
• Simple installation
• Adjustable detection range
• Large detection range
• IO-Link 1.1
• Minimal installation space
• Range: 500 mm
• Switching Hysteresis: < 15 %
• Light Source: Infrared Light
• Service Life (T = 77°F): 100,000 h
• Max. Ambient Light: 10,000 Lux
• Opening Angle: 5 °
• Light Spot Diameter: see table 1
• Supply Voltage: 10 to 30 V DC
• Supply Voltage with IO-Link: 18 to 30 V DC
• Current Consumption (Ub = 24 V): < 30 mA
• Switching Frequency: 500 Hz
• Response Time: 1 ms
• Temperature Drift: < 10 %
• Temperature Range: -13°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• PNP Switching Output/Switching Current: 200 mA
• Residual Current Switching Output: < 50 µA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Lockable: yes
• Interface: IO-Link V1.1
• Protection Class: III

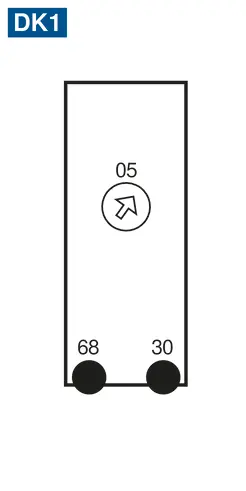

• Setting Method: Potentiometer
• Housing Material: Plastic, ABS-GF
• Degree of Protection: IP67

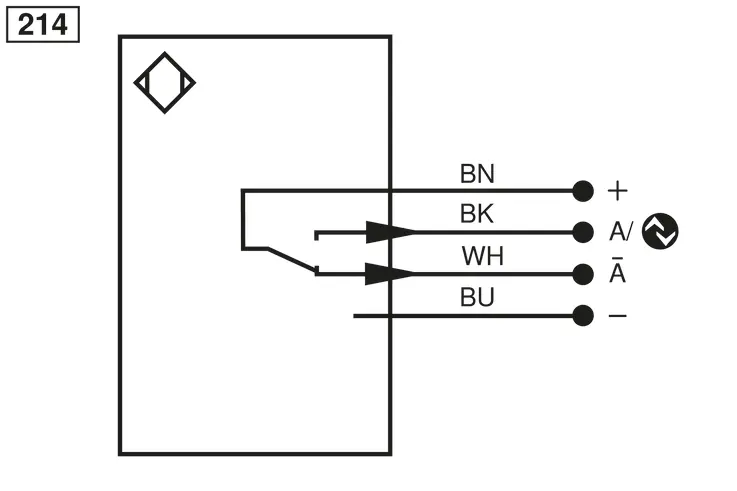

• Connection: Cable; 4-wire
• Cable length (L): 2 m
• Cable Jacket Material: PVC
• Weight: 59 g
• MTTFd (EN ISO 13849-1): 2,988.01 a
• Scope of delivery: 1 × Z0008 mounting console, 1 × initial start-up instructions, 1 × MUTTER-M18-E012 hex nut, 1 × sensor
• Packaging unit: 1 Piece
• IO-Link: yes
• PNP NC, PNP NO: yes
• Output: Push-pull, NPN, PNP
• Circuit: NC, NC+NO, NO
• Other parameters: Off-delay, On-delay, Mode of operation, Error output, Switching hysteresis, Emitted light
• Detection Range: 100 mm, 300 mm, 500 mm
• Light Spot Diameter: 11 mm, 26 mm, 41 mm
• Complementary Products: IO-Link Master, Software
