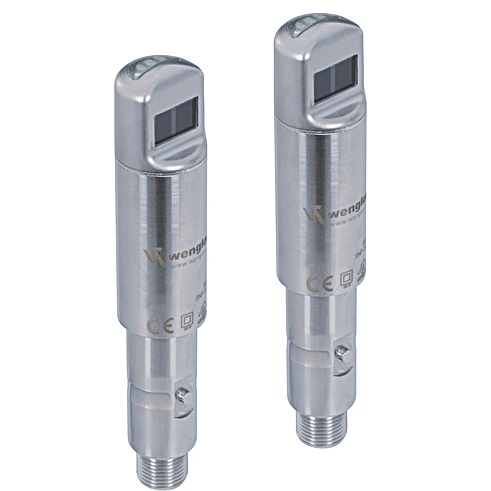

Wenglor OSII403Z0103 Through-Beam Sensor

Through-Beam Sensor.

$246.00
Part Number
  • OSII403Z0103
Highlights...

Features

  • Hygienic design makes it easy to clean
  • Made with food safe materials that are FDA approved
  • Touch teach-in, external teach-in
  • Waterproof (IP68/IP69K)
  • Range: 4,000 mm
  • Light Source: Red Light
  • Service Life (T = 77°F): 100,000 h
  • Opening Angle: 3 °
  • Sensor Type: Emitter
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Teach Mode: NT, MT, XT
  • Test input: yes
  • Protection Class: III
  • Setting Method: Teach-In
  • Housing Material: Stainless steel, V4A (1.4404/316L)
  • Degree of Protection: IP69K, IP68

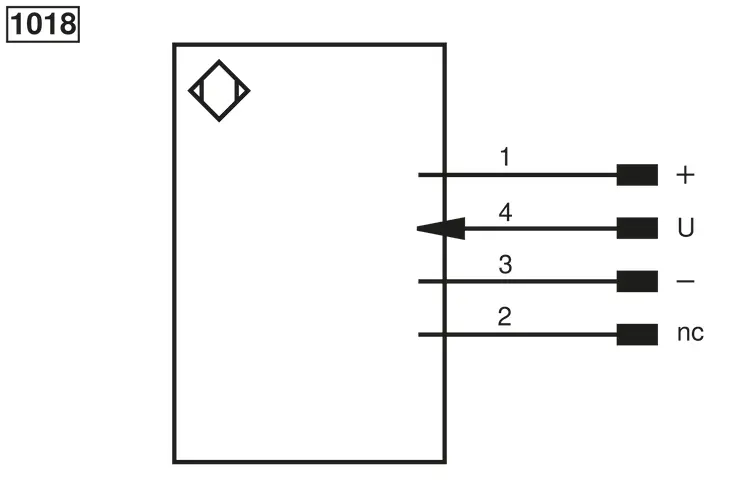

  • Connection: M12 × 1; 4-pin
  • Optic Cover: Plastic, PMMA (FDA)
  • Material Control Panel: Plastic, PC (FDA)
  • Weight: 106 g
  • Approvals: Ecolab, FDA compliant
  • Complementary Products: Adapterbox A232
The photoelectronic sensors in the hygienic housing are distinguished by a captive optic cover and food-safe, FDA-compliant materials. The hygienic design with no corners or edges enables optimal flow of cleaning agents. The laser-welded 316L stainless steel housing (1.4404/V4A) is resistant to high-pressure cleaning (degree of protection IP69K) and suitable for cleaning-intensive applications. When combined with the available accessories, gap-free installation is guaranteed for the highest hygiene requirements. Setting is performed by means of touch teach-in through the hermetically sealed housing.
