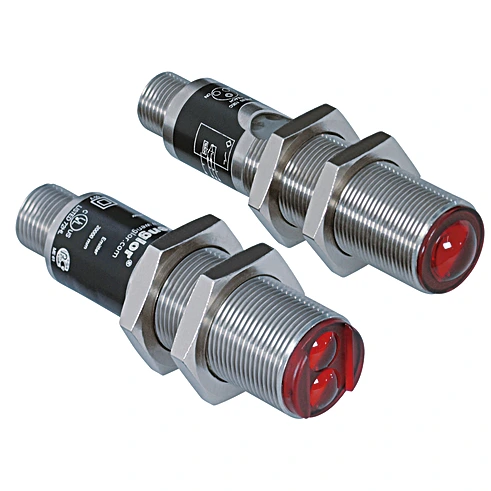

Wenglor OSD124Z0003 Through-Beam Sensor

Through-Beam Sensor.

$309.00
Part Number
  • OSD124Z0003
Highlights...

Features

  • Special coated optics
  • Range: 12,000 mm
  • Light Source: Laser (red)
  • Wavelength: 655 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Beam Divergence: 10 mrad
  • Sensor Type: Emitter
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 15 mA
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Reverse Polarity Protection: yes
  • Protection Class: III
  • FDA Accession Number: 1120741-000
  • Housing Material: Stainless steel, V2A (1.4305/303)
  • Coated Optics: yes
  • Full Encapsulation: yes
  • Degree of Protection: IP67
  • Connection: M12 × 1; 4-pin
  • Weight: 72 g
  • MTTFd (EN ISO 13849-1): 3,715.77 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M18-E003 hex nut, 1 × sensor
  • Complementary Products: Dust Extraction Tube STAUBTUBUS-01
These through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.
