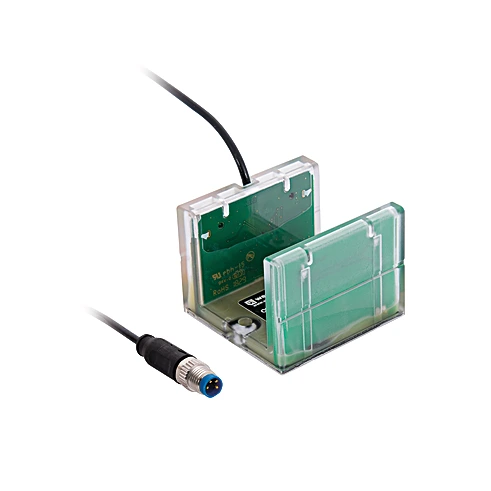

Wenglor OPT347 Fork Sensor

Fork Sensor.

$205.00
Part Number
  • OPT347
Highlights...

Features

  • Up to four states are detected and output via the switching outputs
  • Suitable for easy precision rack positioning
  • No reflector required
  • Fast and easy installation thanks to emitter + receiver in one housing

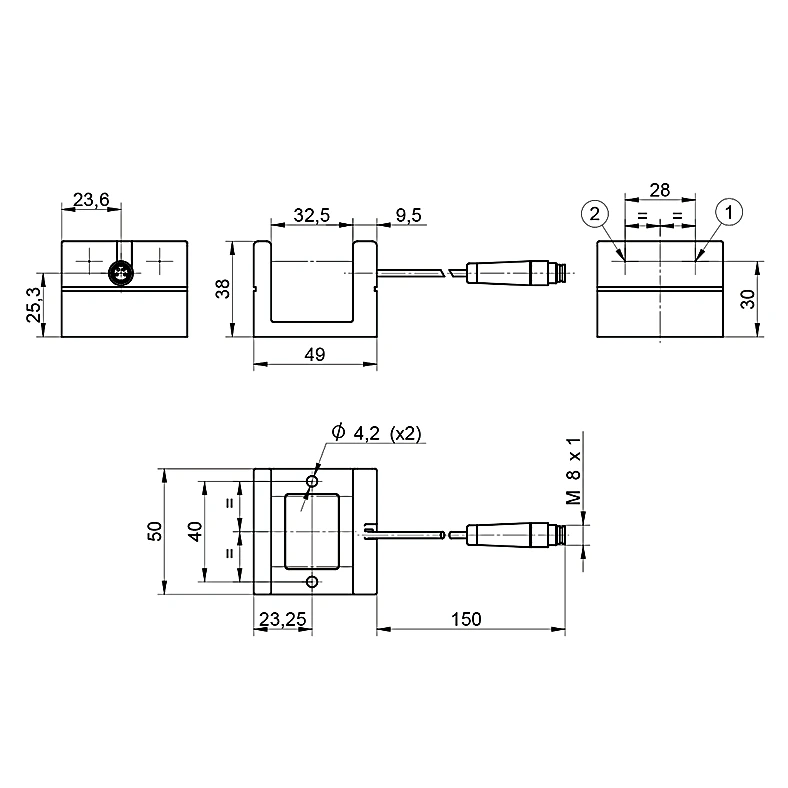

  • Fork Width: 32 mm
  • Light Source: Infrared Light
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Switching Frequency: 5 kHz
  • Response Time: 100 µs
  • Temperature Range: -22°F to 122°F
  • Number of Switching Outputs: 2
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 50 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Housing Material: Plastic
  • Degree of Protection: IP67

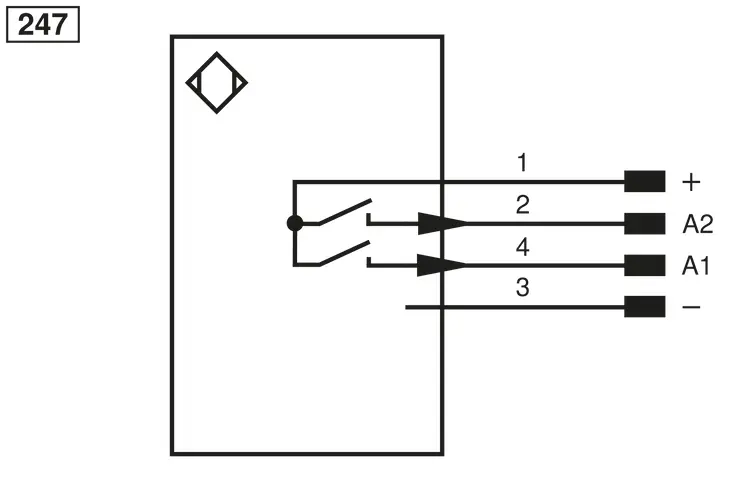

  • Connection: M8 × 1; 4-pin
  • Cable length (L): 150 mm
  • Weight: 60 g
  • Scope of delivery: 1 × sensor
  • Packaging unit: 1 Piece
  • PNP NO: yes
Double fork sensors are used for rapid rough and precision positioning. A recess in the object to be referenced, which encompasses both light beams exactly, serves as a position mark. When approaching, one beam is released first to determine the approximate position. As soon as the second beam is released, an exact positioning, the precise position, is found. The sequence in which the beams are released provides additional direction information. The sensor outputs the information in a universal format via two digital switching outputs. The integration of the emitter and receiver into a single housing allows for fast installation without additional alignment or a reflector, even in confined spaces. One example of a typical application is precision positioning in intralogistics.
