Wenglor OPT342 Inductive Sensor

Features

• Switching Distance: 2 mm
• Switching Hysteresis: < 15 %
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 20 mA
• Switching Frequency: 800 Hz
• Temperature Drift: < 10 %
• Temperature Range: -13°F to 158°F
• Number of Switching Outputs: 2
• Switching Output Voltage Drop: < 2 V DC
• Switching Output/Switching Current: 100 mA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Housing Material: Plastic

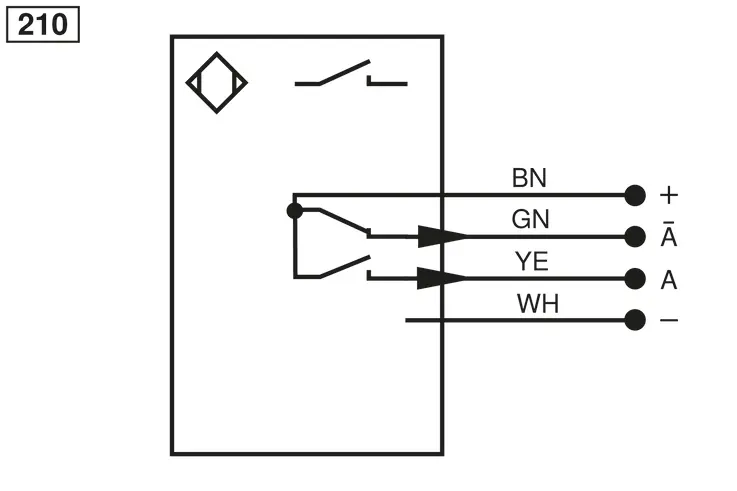

• Connection: Cable; 4-wire
• Cable length (L): 500 mm
• Cable Jacket Material: Plastic, PUR
• Wire cross-section: 0.25 mm²
• Weight: 23 g
• MTTFd (EN ISO 13849-1): 2,418.19 a
• Scope of delivery: 1 × sensor
• PNP NO: yes
• PNP NC: yes
