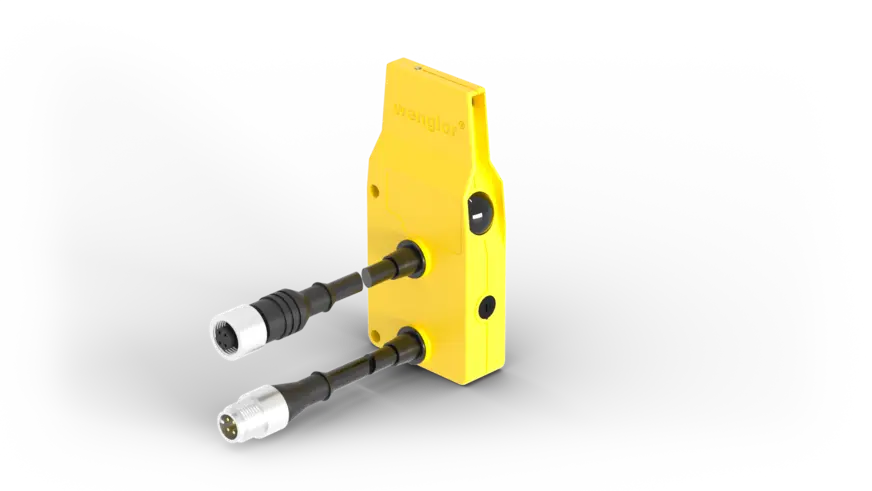

Wenglor OPT339-P06 Logic Unit for Roller Conveyor Systems

Logic Unit for Roller Conveyor Systems.

$412.00
Part Number
  • OPT339-P06
Highlights...

Features

  • Integrated logic
  • Fully encapsulated
  • Energy-saving trough automatic roll cutoff
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption Sensor (Ub = 24 V): < 10 mA
  • Off-Delay: 0 to 2 s
  • Temperature Range: -13°F to 140°F
  • Number of Switching Outputs: 3
  • Switching Output Voltage Drop: < 0.8 V
  • PNP Switching Output/Switching Current: 200 mA
  • Valve or Motor Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Logic: yes
  • Single Discharge: yes
  • Output Magnetic Valve/Engine: yes
  • Automatic Roller Shutdown: yes
  • Protection Class: III
  • Setting Method: Potentiometer
  • Housing Material: Plastic
  • Full Encapsulation: yes
  • Degree of Protection: IP65
  • Connection: M12 × 1; 4-pin
  • Cable length (L): 1.5 m
  • Weight: 243 g
  • Scope of delivery: 1 × logic unit
  • PNP NC: yes
These sensors have been specially designed for use in accumulation roller conveyors. Their compact design allows for installation between two rollers below the conveyor level. They are thus protected against mechanical damage.
