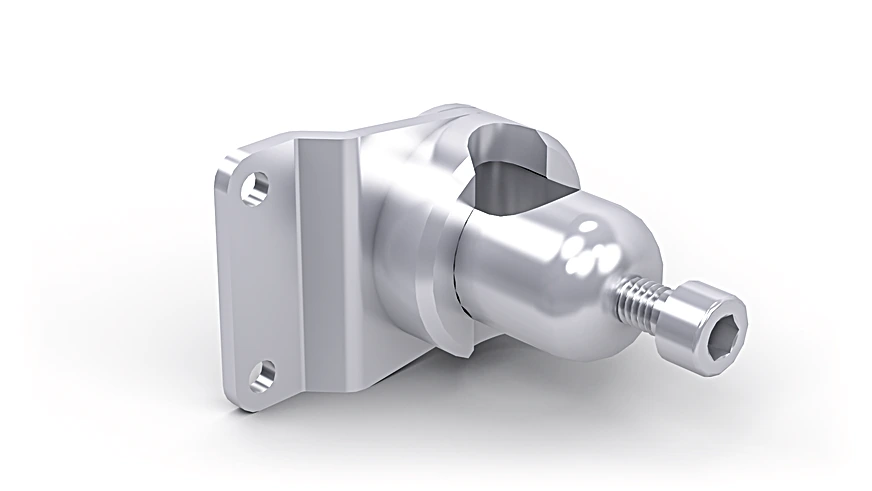

Wenglor OPT317 Mounting for 54,5 × 27 × 16 mm (M)
Mounting for 54,5 × 27 × 16 mm (M).
$63.30
Part Number
- OPT317
Highlights...
Overview
Features
- Aluminum
- Simple installation
- Flexible alignment options
- For 54.5 × 27 × 16 mm (M)
- Mounting type, device-side: Screwable to mounting plate
- Mounting type, system-side: Mounting bar
- Material: Aluminum, anodised
- Material Mounting Head: Aluminum, anodised
- Material Mounting Plate: Stainless steel, V2A (1.4301/304)
- for Round Profile Diameter: 8 to 13 mm
- Rod length: 500 mm
- Weight: 543 g
- Scope of delivery: 1 × WMS12AL mounting, 1 × bent mounting bar, 1 × ZMSBS0001 mounting clamp
- Packaging unit: 1 Piece
- Use: for square housing
Description
The mounting allows wenglor sensors and reflectors to be easily adjusted and rotated 360° on the vertical and horizontal planes.
Documents
Spec Sheets
Other

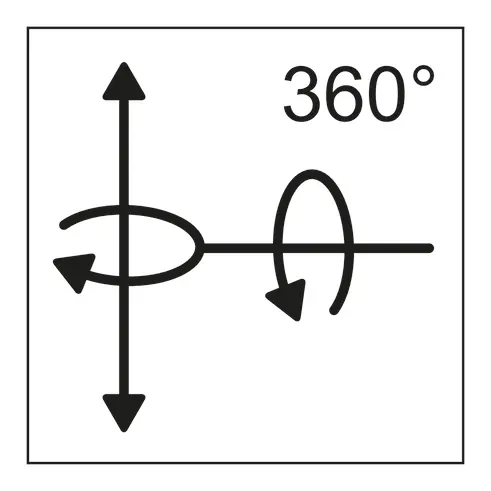

- Wenglor OPT317 Mounting for 54,5 × 27 × 16 mm (M) Alignment possibilities (55 KB)

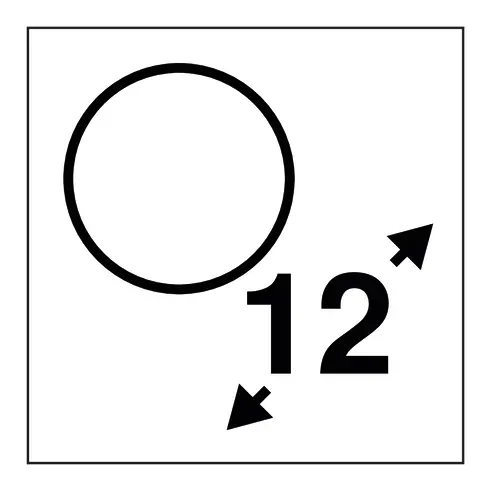

- Wenglor OPT317 Mounting for 54,5 × 27 × 16 mm (M) Contour types (28 KB)

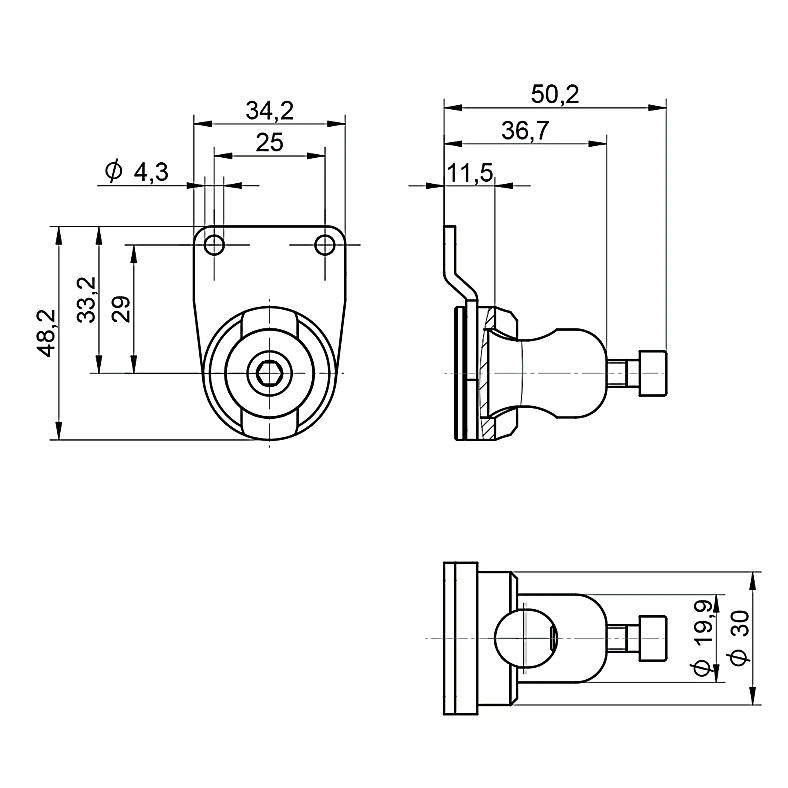

- Wenglor OPT317 Mounting for 54,5 × 27 × 16 mm (M) Dimensioned Picture-1 (29 KB)

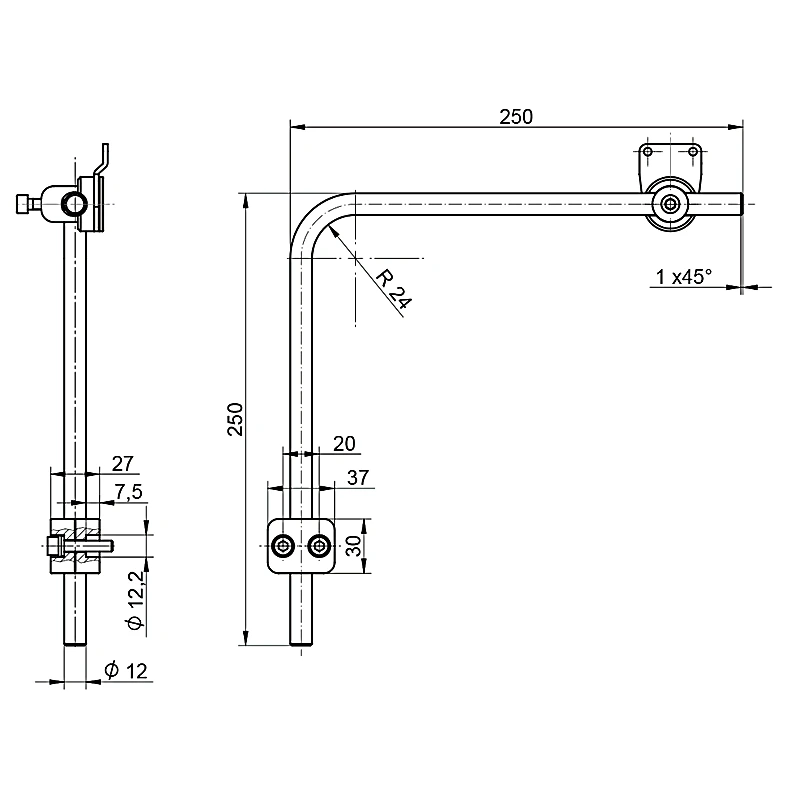

- Wenglor OPT317 Mounting for 54,5 × 27 × 16 mm (M) Dimensioned Picture-2 (24 KB)
