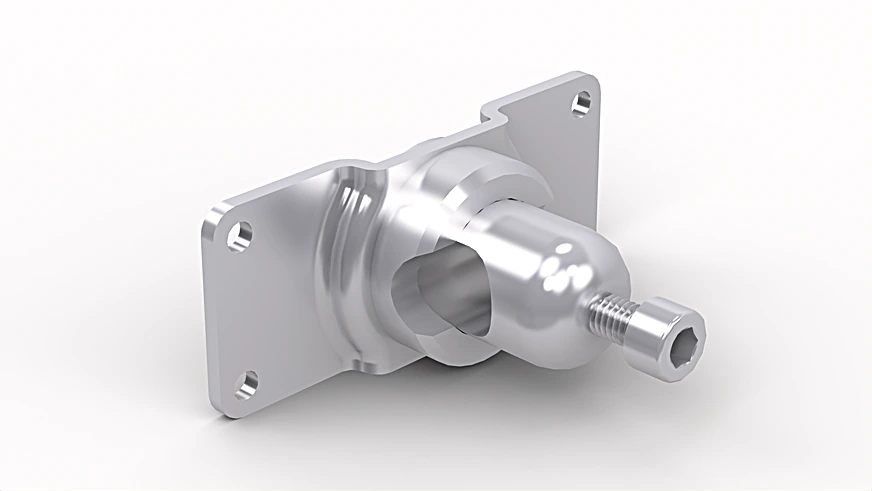

Wenglor OPT316 Mounting for 76 × 32,5 × 18 mm (N)

Mounting for 76 × 32,5 × 18 mm (N).

$63.30
Part Number
  • OPT316
Highlights...

Features

  • Aluminum
  • Simple installation
  • Flexible alignment options
  • Mounting type, device-side: Screwable to mounting plate
  • Mounting type, system-side: Mounting bar
  • Material Mounting Head: Aluminum, anodised
  • Material Mounting Plate: Stainless steel, V2A (1.4301/304)

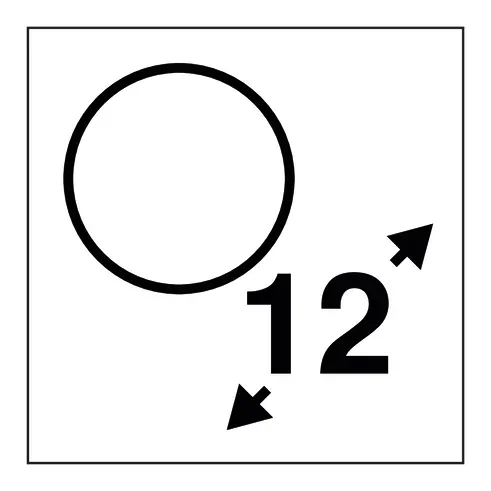

  • for Round Profile Diameter: 8 to 13 mm
  • Rod length: 500 mm
  • Weight: 559 g
  • Scope of delivery: 1 × WNS12AL mounting, 1 × bent mounting bar, 1 × ZMSBS0001 mounting clamp
  • Packaging unit: 1 Piece
  • Use: for square housing

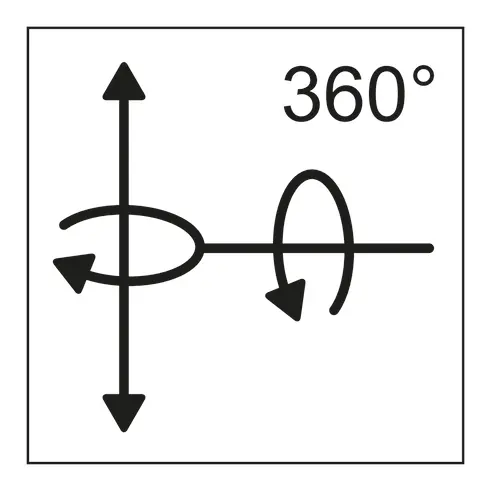

The mounting allows wenglor sensors and reflectors to be easily adjusted and rotated 360° on the vertical and horizontal planes.
