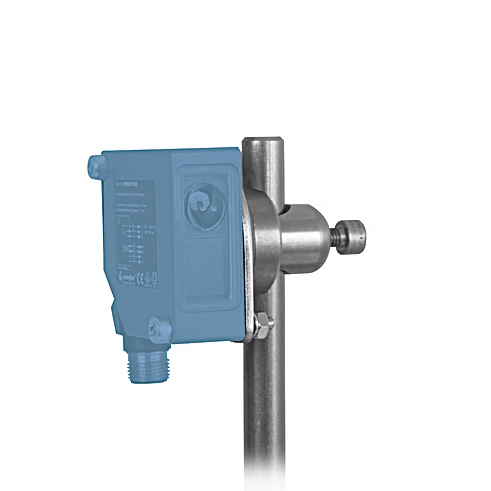

Wenglor OPT315 Mounting for 50 × 50 × 20...30 mm (P)

Mounting for 50 × 50 × 20...30 mm (P).

$63.30
Part Number
  • OPT315
Highlights...

Features

  • Aluminum
  • Simple installation
  • Flexible alignment options
  • For 50 × 50 × 20 to 30 mm
  • Mounting type, device-side: Screwable to mounting plate
  • Mounting type, system-side: Mounting bar
  • Material: Aluminum, anodised
  • Material Mounting Head: Aluminum, anodised
  • Material Mounting Plate: Stainless steel, V2A (1.4301/304)

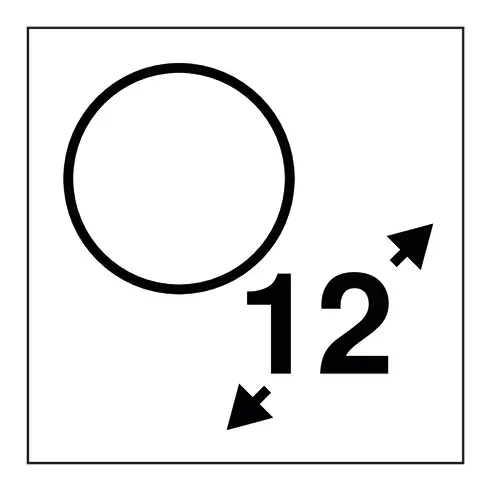

  • for Round Profile Diameter: 8 to 13 mm

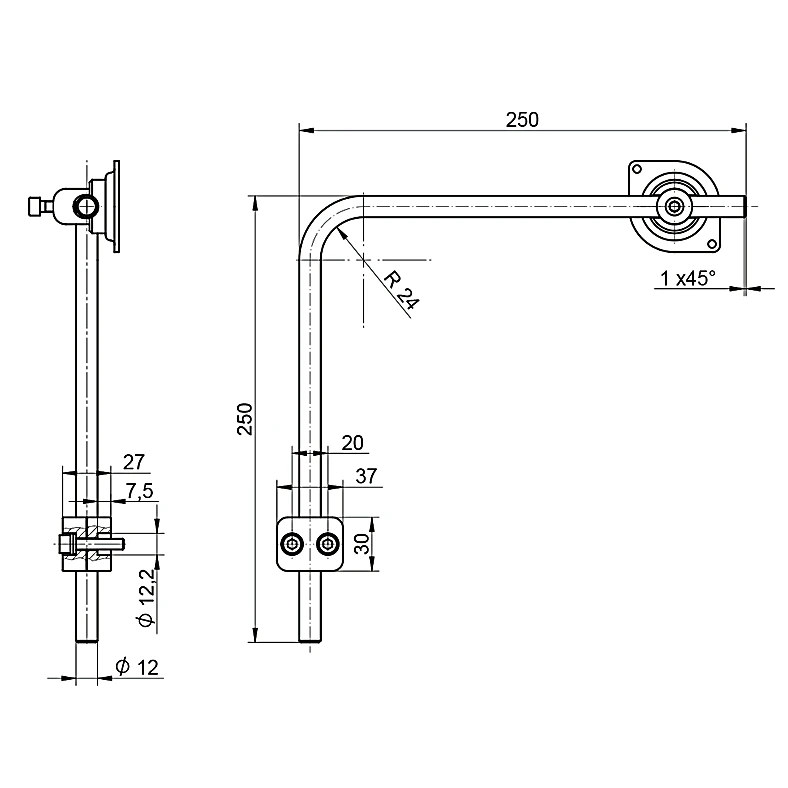

  • Rod length: 500 mm
  • Weight: 565 g
  • Scope of delivery: 1 × WPS12AL mounting, 1 × bent mounting bar, 1 × ZMSBS0001 mounting clamp
  • Packaging unit: 1 Piece
  • Use: for square housing

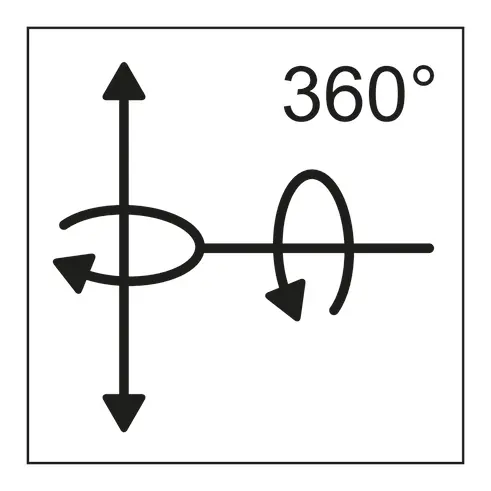

The mounting allows wenglor sensors and reflectors to be easily adjusted and rotated 360° on the vertical and horizontal planes.
