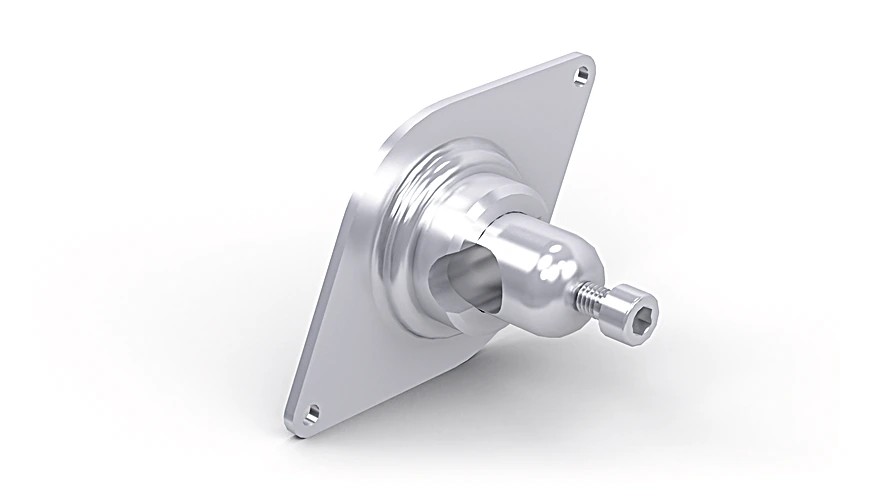

Wenglor OPT314 Mounting For 81 × 55 × 30…47 mm (TA)

Mounting For 81 × 55 × 30…47 mm (TA).

$63.30
Part Number
  • OPT314
Highlights...

Features

  • Simple installation
  • Flexible alignment options
  • Aluminum

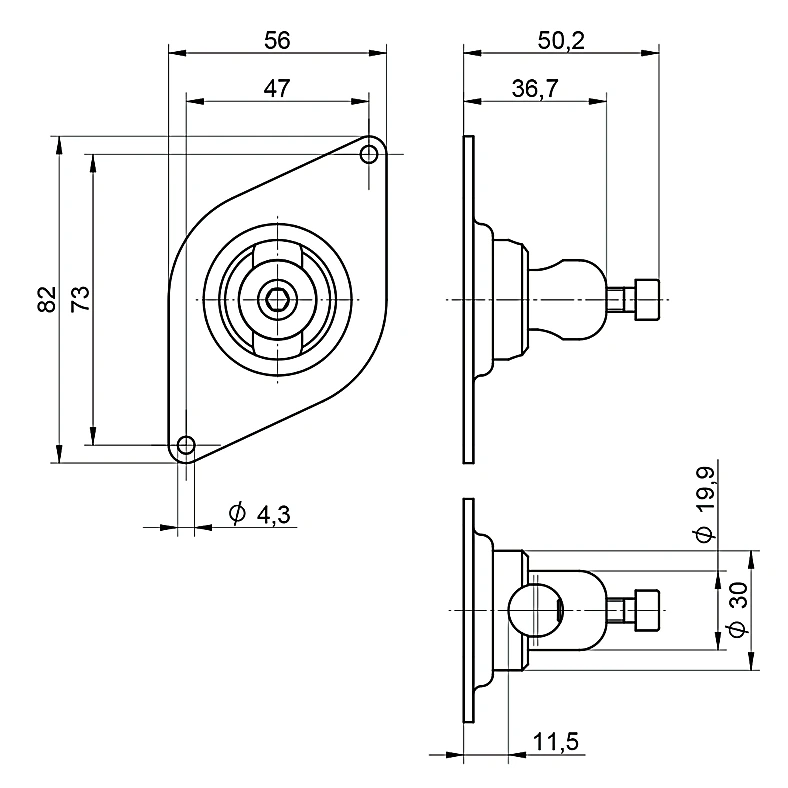

  • For 81 × 55 × 30 to 47 mm
  • Mounting type, device-side: Screwable to mounting plate
  • Mounting type, system-side: Mounting bar
  • Material: Aluminum, anodised
  • Material Mounting Head: Aluminum, anodised
  • Material Mounting Plate: Stainless steel, V2A (1.4301/304)

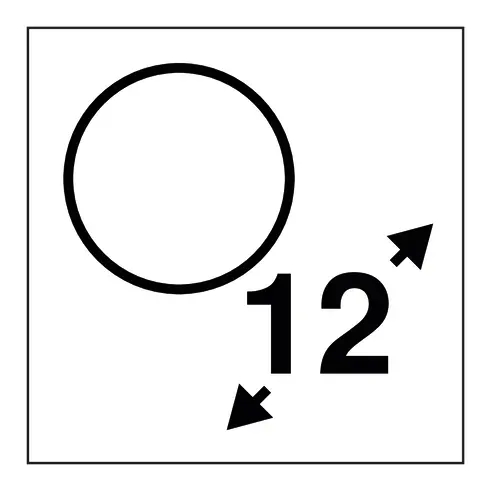

  • for Round Profile Diameter: 8 to 13 mm

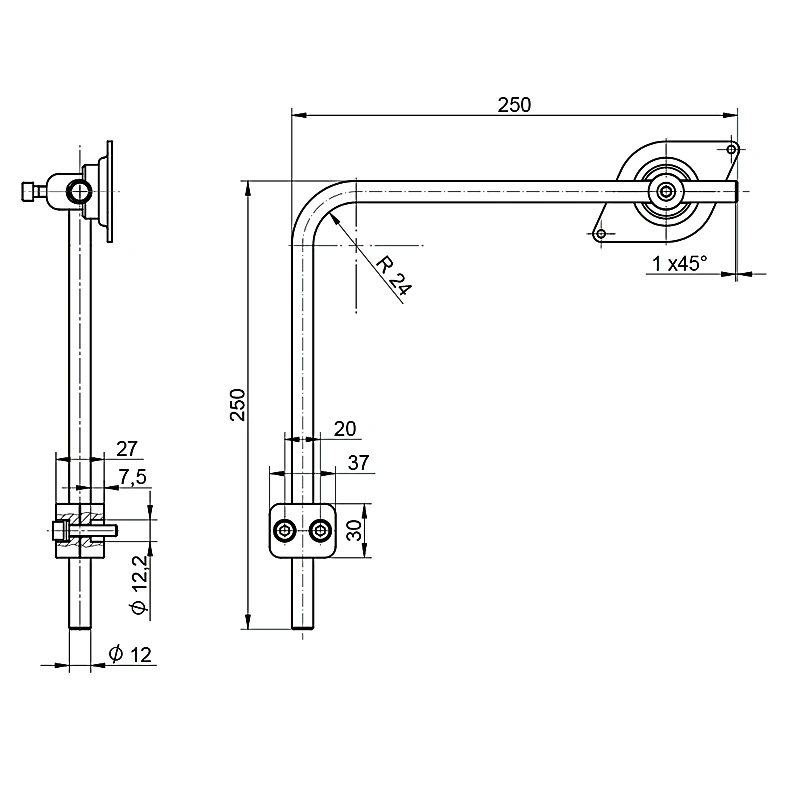

  • Rod length: 500 mm
  • Weight: 582 g
  • Scope of delivery: 1 × WTAS12AL mounting, 1 × bent mounting bar, 1 × ZMSBS0001 mounting clamp
  • Packaging unit: 1 Piece
  • Use: for square housing

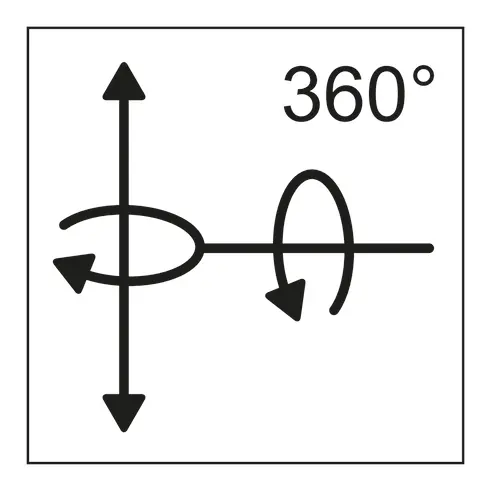

The mounting allows wenglor sensors and reflectors to be easily adjusted and rotated 360° on the vertical and horizontal planes.
