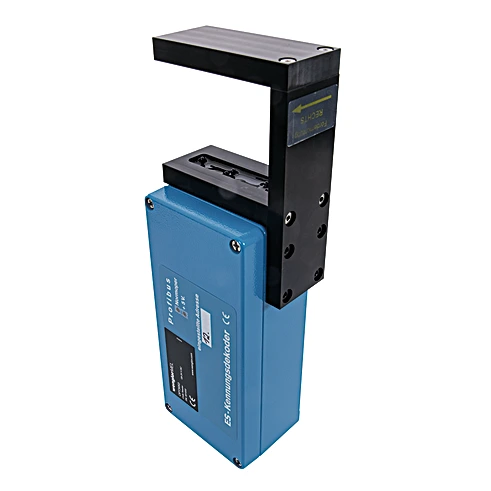

Wenglor OPT3053 Identifier decoder

Identifier decoder.

$6,693.00
Part Number
  • OPT3053
Highlights...

Features

  • Fork Width: 58 mm
  • Horizontal track accuracy: ± 25 mm
  • Vertical track accuracy: ± 7.5 mm
  • Transport direction: right
  • Supply Voltage: 24 V DC
  • Current Consumption (Ub = 24 V): ≤ 350 mA
  • Temperature Range: 32°F to 149°F
  • Interface: PROFIBUS DP
  • Degree of Protection: IP67
  • Connection: M12 × 1; 5-pin
  • Weight: 2,153 g
