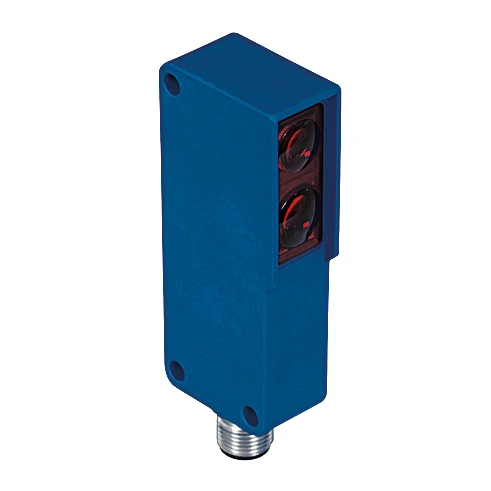

Wenglor OPT292 Reflex Sensor with background suppression electronic

Features

• Stainless steel plug (V2A)
• Switching frequency: 1 kHz
• With foreground suppression
• Range: 300 mm
• Setting Range: 65 to 300 mm
• Switching Hysteresis: < 1 %
• Light Source: Laser (red)
• Wavelength: 655 nm
• Service Life (T = 77°F): 100,000 h
• Laser Class (EN 60825-1): 2
• Max. Ambient Light: 10,000 Lux
• Light Spot Diameter: see table 1
• Principle: Triangulation
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 20 mA
• Switching Frequency: 1 kHz
• Response Time: 500 µs
• Temperature Drift: < 2 %
• Temperature Range: -13°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• PNP Switching Output/Switching Current: 200 mA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: III

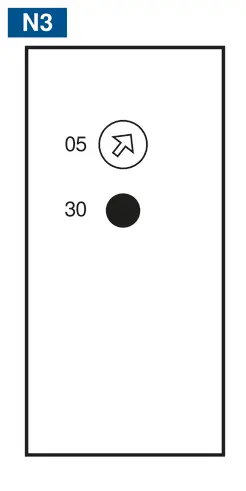

• Setting Method: Potentiometer
• Housing Material: Plastic, PBT
• Degree of Protection: IP67
• Connection: M12 × 1; 4-pin
• Weight: 38 g
• MTTFd (EN ISO 13849-1): 1,930.46 a
• Scope of delivery: 1 × BEF-SET-02 mounting set, 1 × initial start-up instructions, 1 × laser warning sign, 1 × sensor
• PNP NC, PNP NO: yes
• Circuit: NC, NC+NO, NO
• Detection Range: 60 mm, 150 mm, 300 mm
• Light Spot Diameter: 3 mm, 2 mm, 3 mm
• Complementary Products: Dust Extraction Tube STAUBTUBUS-03, PNP-NPN Converter BG2V1P-N-2M
