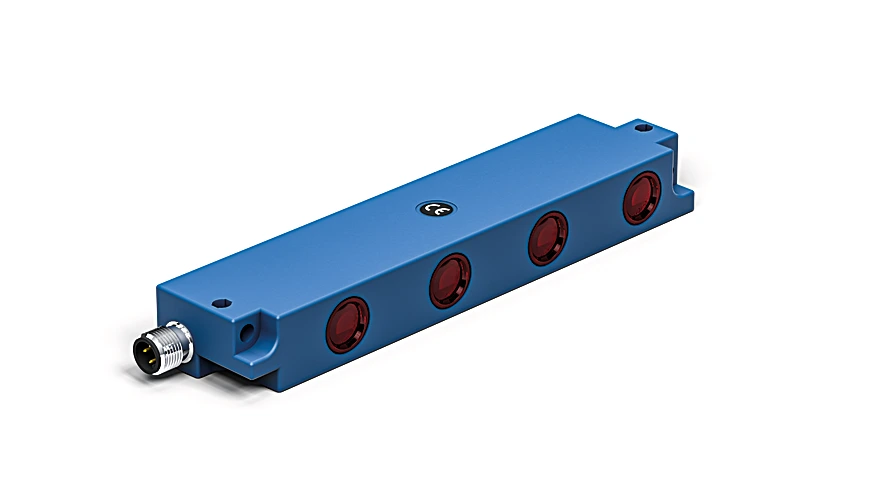

Wenglor OPT282 Retro-Reflex Sensor for Transparent Objects

Features

• Teach-in, external teach-in
• Recognition of clear glass
• Dynamic readjustment of the switching threshold
• Range: 4,000 mm
• Reference Reflector/Reflector Foil: 2 × RQ100BA
• Clear Glass Recognition: yes
• Switching Hysteresis: < 5 %
• Light Source: Red Light
• Polarization Filter: yes
• Service Life (T = 77°F): 100,000 h
• Max. Ambient Light: 10,000 Lux
• Opening Angle: 5 °
• Optics: Single-Lens Optic
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 60 mA
• Switching Frequency: 2 kHz
• Response Time: 250 µs
• Temperature Drift: < 5 %
• Temperature Range: 14°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• PNP Switching Output/Switching Current: 200 mA
• Residual Current Switching Output: < 50 µA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Lockable: yes
• Protection Class: III
• Setting Method: Teach-In
• Housing Material: Plastic, ABS-GF
• Full Encapsulation: yes
• Degree of Protection: IP67
• Connection: M12 × 1; 4-pin
• Weight: 149 g
• Scope of delivery: 1 × initial start-up instructions, 1 × sensor
• PNP NC: yes
• Circuit: NC, NC/NO, NO
• RQ100BA: 0 to 4 m
• RE18040BA: 0 to 1.7 m
• RQ84BA: 0 to 3 m
• RE9538BA: 0 to 0.9 m
• RE6151BM: 0 to 2 m
• RE6040BA: 0 to 2.3 m
• ZRAE02B01: 0 to 1 m
• ZRME03B01: 0 to 1.7 m
• RF505: 0 to 0.8 m
• ZRAF08K01: 0 to 0.8 m
• ZRDF10K01: 0 to 2.5 m
• Complementary Products: Reflector, Reflector Foil, PNP-NPN Converter BG2V1P-N-2M
