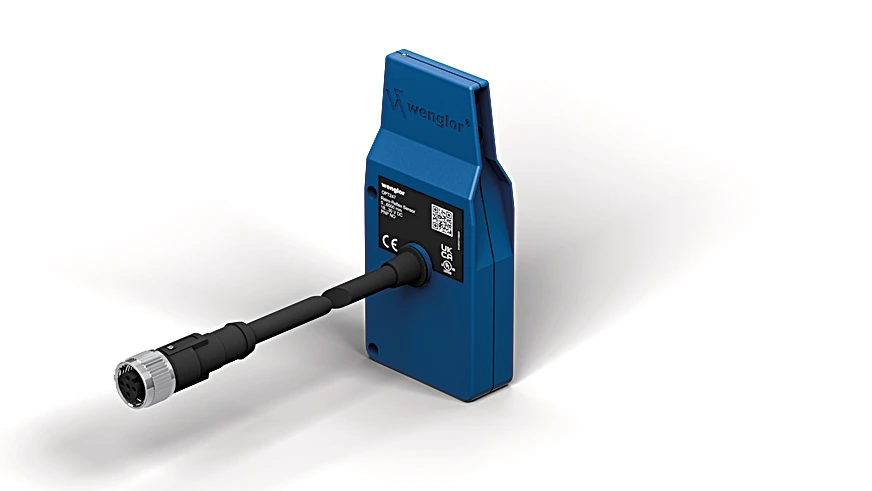

Wenglor OPT247 Retro-Reflex Sensor

Features

• Large working range
• Recognition of high-gloss and jet black objects
• Integrated logic
• Fully encapsulated
• Range: 6,500 mm
• Reference Reflector/Reflector Foil: RQ100BA
• Min. Distance to Reflector: 100 mm
• Switching Hysteresis: < 15 %
• Light Source: Red Light
• Polarization Filter: yes
• Service Life (T = 77°F): 100,000 h
• Max. Ambient Light: 10,000 Lux
• Opening Angle: 5 °
• Optics: Two-Lens Optic
• Supply Voltage: 18 to 30 V DC
• Current Consumption Sensor (Ub = 24 V): < 30 mA
• Switching Frequency: 100 Hz
• Response Time: 5 ms
• Temperature Drift: < 10 %
• Temperature Range: 5°F to 122°F
• Number of Switching Outputs: 1
• Switching Output Voltage Drop: < 0.8 V
• PNP Switching Output/Switching Current: 200 mA
• Valve or Motor Output/Switching Current: 200 mA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Logic: yes
• Single Discharge: yes
• Block Forwarding: yes
• Output Magnetic Valve/Engine: yes
• Protection Class: III
• Housing Material: Plastic
• Full Encapsulation: yes
• Degree of Protection: IP54
• Connection: M12 × 1; 4-pin
• Cable length (L): 880 mm
• Cable Jacket Material: PVC
• Weight: 222 g
• Scope of delivery: 1 × initial start-up instructions, 1 × sensor
• PNP NO: yes
• RQ100BA: 0.25 to 6.5 m
• RE18040BA: 0.1 to 4 m
• RQ84BA: 0.25 to 5 m
• RR84BA: 0.2 to 5 m
• RE9538BA: 0.15 to 2 m
• RR50_A: 0.15 to 3 m
• RE6040BR: 0.2 to 2.5 m
• RE8222BA: 0.25 to 1.8 m
• ZRAE02B01: 0.2 to 1.8 m
• ZRME03B01: 0.15 to 2 m
• RF505: 0.15 to 1.9 m
• RF508: 0.15 to 1.9 m
• RF258: 0.15 to 1.5 m
• ZRDF03K01: 0.1 to 3.5 m
• ZRDF10K01: 0.1 to 4.5 m
• Complementary Products: Reflector, Reflector Foil, Adapter OPT70N, OPT70S, OPT70P
