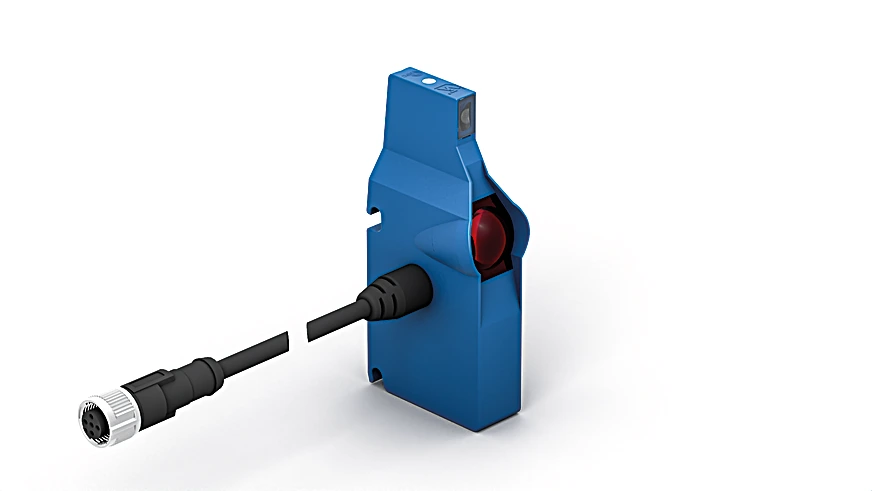

Wenglor OPT1544 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$360.00
Part Number
  • OPT1544
Highlights...

Features

  • Optimized performance
  • Wireless settings via NFC
  • Increased capacity thanks to intelligent functions
  • Time-saving initial start-up with fast-clip mounting system and quick wiring
  • Energy-saving
  • Range: 900 mm
  • Switching Hysteresis: < 5 %
  • Light Source: Infrared Light
  • Wavelength: 860 nm
  • Service Life (T = 77°F): 100,000 h
  • Risk Group (EN 62471): 1
  • Max. Ambient Light: 90,000 Lux
  • Opening Angle: 3 °
  • Principle: Triangulation
  • Supply Voltage: 12 to 30 V DC
  • Current Consumption Sensor (Ub = 24 V): < 16 mA
  • Switching Frequency: 100 Hz
  • Response Time: 5 ms
  • Temperature Drift: < 5 %
  • Temperature Range: -40°F to 140°F
  • Number of Switching Outputs: 2
  • Switching Output Voltage Drop: < 0.9 V
  • PNP Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Logic: yes
  • Single Discharge: yes
  • Block Forwarding: yes
  • Output Magnetic Valve/Engine: yes
  • Automatic Roller Shutdown: yes
  • Protection Class: III
  • Setting Method: NFC
  • Housing Material: Plastic, ABS-GF
  • Degree of Protection: IP67

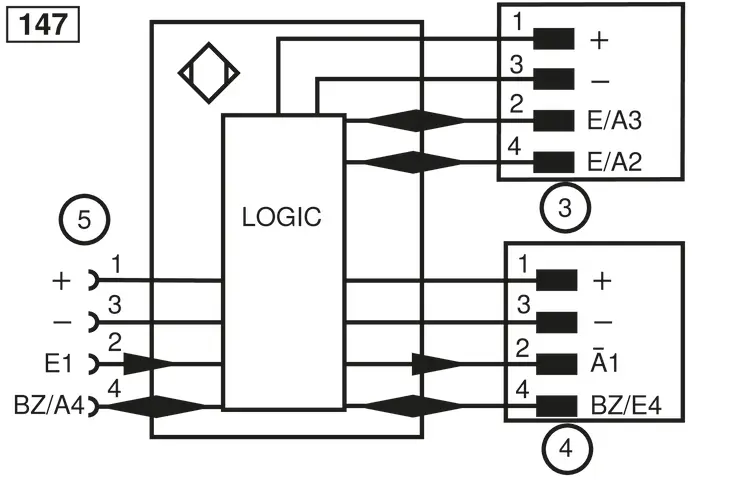

  • Connection: M12 × 1; 4-pin
  • Cable length (L): 1.5 m
  • Cable Jacket Material: PVC
  • Weight: 200 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • PNP NO/NC switchable: yes
  • NFC Receiver Category: yes
These sensors have been specially designed for use in accumulation roller conveyors. Their compact design allows for installation between rollers below the transport level. High-precision background suppression makes it possible to reliably detect even black objects at up to 900 mm. Settings are entered via wireless NFC, which is even possible in the de-energized state. Thanks to the innovative fast-clip mounting system and quick wiring, the sensors are installed and ready for use in no time flat.
