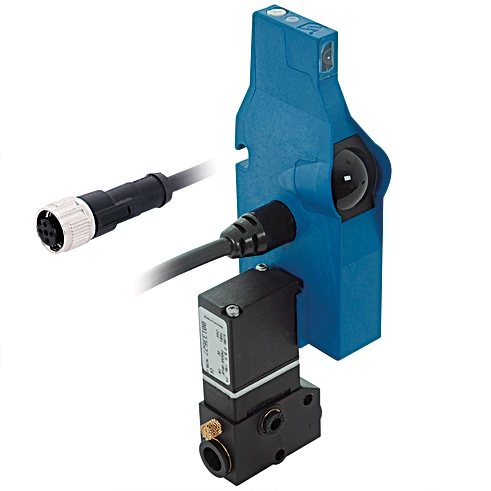

Wenglor OPT1504 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$539.00
Part Number
  • OPT1504
Highlights...

Features

  • Scaled switching distance adjuster
  • Energy savings thanks to EcoMode
  • Optimized performance
  • Quick wiring
  • Time-saving installation with fast-clip mounting system
  • Range: 900 mm
  • Switching Hysteresis: < 5 %
  • Light Source: Infrared Light
  • Wavelength: 860 nm
  • Service Life (T = 77°F): 100,000 h
  • Risk Group (EN 62471): 1
  • Max. Ambient Light: 90,000 Lux
  • Opening Angle: 3 °
  • Principle: Triangulation
  • Supply Voltage: 23 to 27.8 V DC
  • Current Consumption Sensor (Ub = 24 V): < 16 mA
  • EcoMode: yes
  • Switching Frequency: 100 Hz
  • Response Time: 5 ms
  • Temperature Drift: < 5 %
  • Temperature Range: -40°F to 140°F
  • Number of Switching Outputs: 1
  • Switching Output Voltage Drop: < 0.9 V
  • PNP Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Logic: yes
  • Single Discharge: yes
  • Block Forwarding: yes
  • Solenoid Valve: yes
  • Protection Class: III
  • Setting Method: Potentiometer
  • Housing Material: Plastic, ABS-GF
  • Degree of Protection: IP65
  • Connection: M12 × 1; 4-pin
  • Cable length (L): 1.5 m
  • Cable Jacket Material: PVC
  • Weight: 257 g
  • Scope of delivery: 1 × cover cap for M12 screw connector, 1 × molded seal, 1 × initial start-up instructions, 1 × VENTIL-K03 solenoid valve, 1 × O-ring ø 2.7 mm × 0.65 mm, 1 × M2.5 screw × 22 mm, 1 × sensor
  • Valve no.: K03
  • Supply Voltage Valve: 21.6 to 26.4 V
  • Current Consumption Valve: 42 mA
  • Valve temperature range: 14°F to 131°F
  • Operating Pressure: 0 to 8 bar
  • Nominal Width: 0.9 mm
  • Nominal flow rate 1 -> 2: 22 NL/min
  • Nominal flow rate 2 -> 3: 25 NL/min
  • Supply-Line Connector Pipe: 2× 8×1
  • Working-Line Connector Pipe: 4×1
  • Valve function: 3/2-Way
  • Switching function: NO
  • PNP NC: yes
These sensors have been specially designed for use in accumulation roller conveyors. Their compact design allows for installation between rollers below the transport level. High-precision background suppression makes it possible to reliably detect even black objects at up to 900 mm. The scaled switching-distance adjuster assures quick and simple adjustment to the desired distance. Thanks to the innovative fast-clip mounting system and quick wiring, the sensor are installed and ready for use in no time flat.
