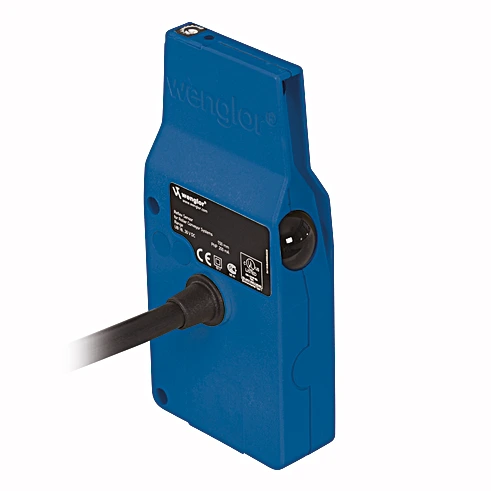

Wenglor OPT144-P06 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$400.00
Part Number
  • OPT144-P06
Highlights...

Features

  • Integrated logic
  • Electronic background suppression

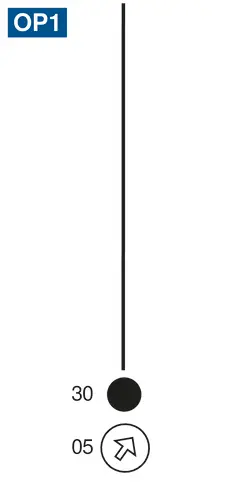

  • Scaled switching distance adjuster
  • Fully encapsulated
  • Range: 550 mm
  • Potentiometer min: 220 to 270 mm
  • Potentiometer center: 320 to 400 mm
  • Potentiometer max: 550 to 630 mm
  • Switching Hysteresis: < 15 %
  • Light Source: Infrared Light
  • Wavelength: 880 nm
  • Service Life (T = 77°F): 100,000 h
  • Risk Group (EN 62471): 1
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 5 °
  • Principle: Triangulation
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption Sensor (Ub = 24 V): < 30 mA
  • Switching Frequency: 100 Hz
  • Response Time: 5 ms
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Number of Switching Outputs: 2
  • Switching Output Voltage Drop: < 0.8 V
  • PNP Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Logic: yes
  • Block Forwarding: yes
  • Protection Class: III
  • Setting Method: Potentiometer
  • Housing Material: Plastic
  • Full Encapsulation: yes
  • Degree of Protection: IP65

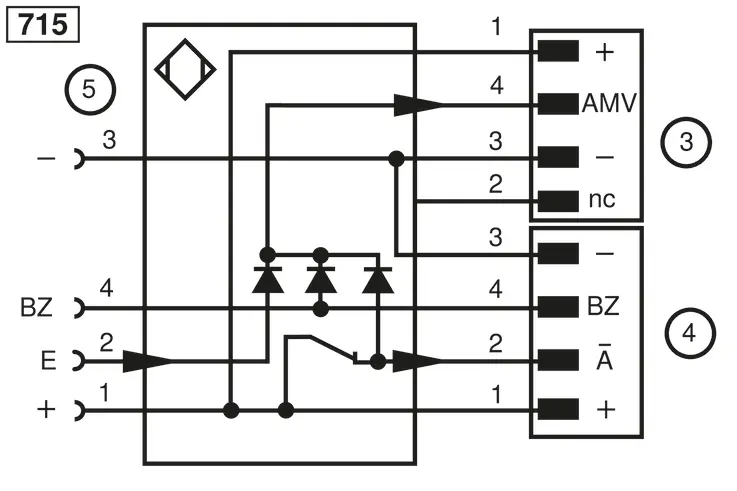

  • Connection: M12 × 1; 4-pin
  • Cable length (L): 1.5 m
  • Weight: 220 g
  • Scope of delivery: 1 × sensor
  • PNP NC: yes
These sensors have been specially designed for use in accumulation roller conveyors. Their compact design allows for installation between two rollers below the conveyor level. They are thus protected against mechanical damage.
