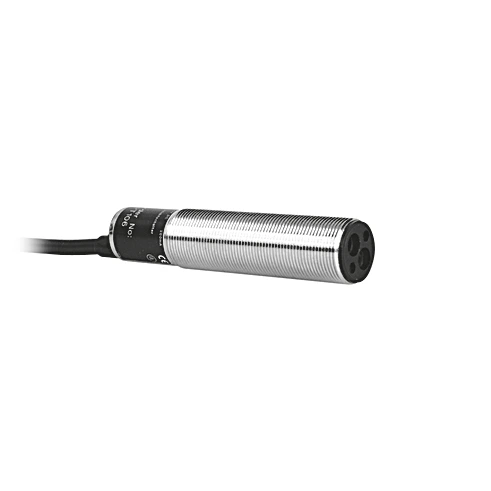

Wenglor OPT106 Fiber-optic amplifier Continuous Light Sensor

Fiber-optic amplifier Continuous Light Sensor.

$865.00
Part Number
  • OPT106
Highlights...

Features

  • Sensitivity adjustable
  • Adaptable for glass fiber-optic cable
  • Contamination warning
  • Minimum quantity of light: 10 Lux
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 15 mA
  • Switching Frequency: 300 Hz
  • Response Time: 1,660 µs
  • Temperature Drift: < 10 %
  • Temperature Range: 14°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Setting Method: Potentiometer
  • Housing Material: Brass, nickel-plated
  • Full Encapsulation: yes
  • Degree of Protection: IP65

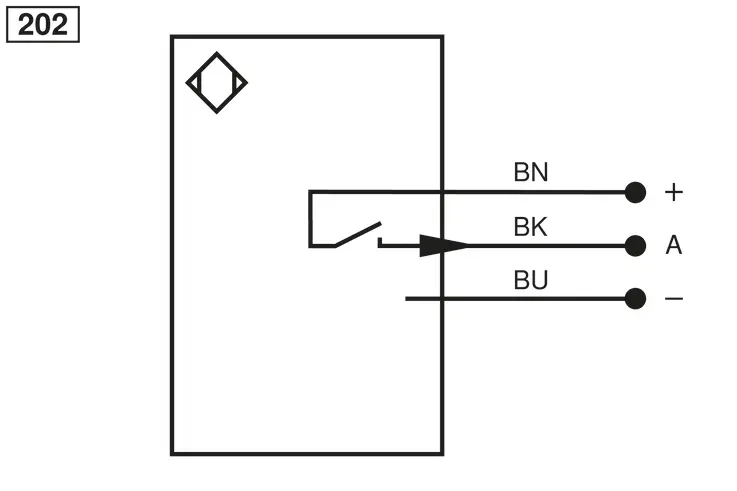

  • Connection: Cable; 3-wire
  • Cable length (L): 2 m
  • Wire cross-section: 0.5 mm²
  • Weight: 174 g
  • Scope of delivery: 1 × BEF-SET-10 mounting set, 1 × sensor
  • PNP NO: yes
  • Complementary Products: Glass Fiber-Optic Cable
wenglor's continuous light sensor detects whether light is emitted from a light source (flame, LED, lamp). This means that LEDs, for example, can be monitored.
