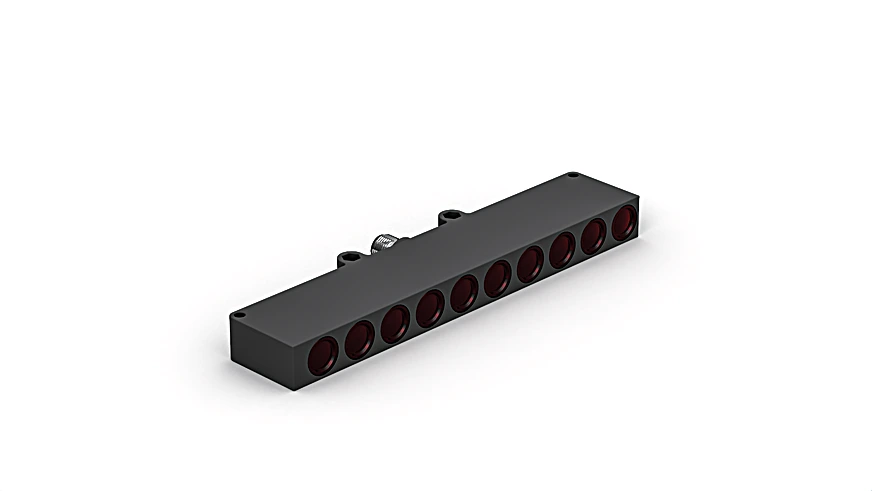

Wenglor OPT1012 Retro-Reflex Sensor for Transparent Objects

Retro-Reflex Sensor for Transparent Objects.

$694.00
Part Number
  • OPT1012
Highlights...

Features

  • Stainless steel plug (V2A)
  • Single-lens optic
  • External teach-in
  • Red light
  • Recognition of clear glass
  • Range: 4,000 mm
  • Reference Reflector/Reflector Foil: 3 × RQ100BA
  • Clear Glass Recognition: yes
  • Switching Hysteresis: < 15 %
  • Light Source: Red Light
  • Polarization Filter: yes
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Optics: Single-Lens Optic
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 70 mA
  • Switching Frequency: 400 Hz
  • Response Time: 1.25 ms
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • NPN Switching Output/Switching Current: 200 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Setting Method: Teach-in input
  • Housing Material: Plastic, ABS-GF
  • Full Encapsulation: yes
  • Degree of Protection: IP67

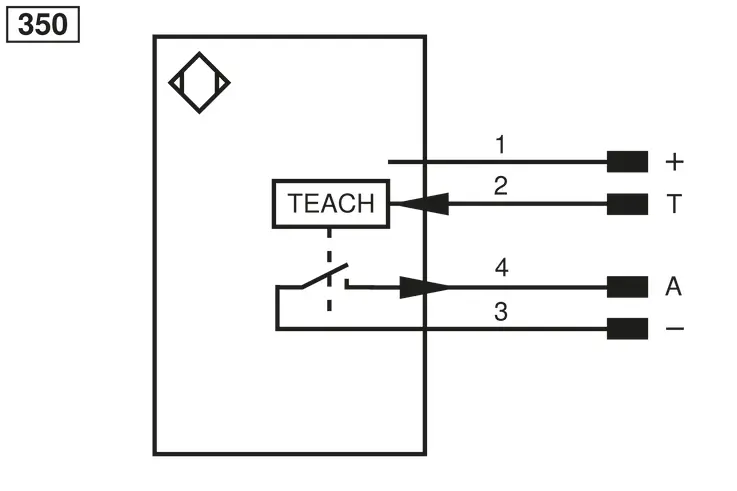

  • Connection: M12 × 1; 5-pin
  • Weight: 160 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • NPN NO: yes
  • RQ100BA: 0 to 4 m
  • RE6151BM: 0 to 3 m
  • RE6040BA: 0 to 3.7 m
  • Z90R006: 0 to 1.4 m
  • ZRAE02B01: 0 to 0.5 m
  • ZRME03B01: 0 to 1 m
  • RF505: 0 to 0.8 m
  • ZRAF08K01: 0 to 0.8 m
  • ZRDF10K01: 0 to 1.5 m
  • Complementary Products: PNP-NPN Converter BG2V1P-N-2M, Reflector, Reflector Foil
A reflector is required for the operation of retro-reflex sensors. Ten sensors are accommodated in a single housing and are OR-linked to each other. The output is switched as soon as any of the light beams is interrupted, making it possible to monitor a broader field. Even crystal-clear objects, films and sheet products are reliably detected.
