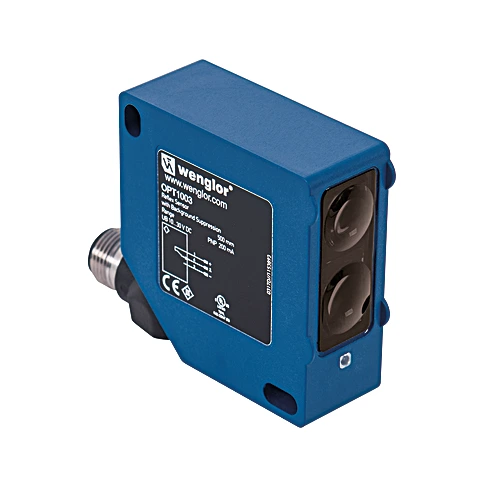

Wenglor OPT1008 Reflex Sensor with background suppression electronic

Features

• Precision background suppression
• Plug can be rotated
• Infrared light
• Fixed scanning range
• With aperture
• Range: 400 mm
• Switching Hysteresis: 5 %
• Light Source: Infrared Light
• Service Life (T = 77°F): 100,000 h
• Risk Group (EN 62471): 1
• Max. Ambient Light: 10,000 Lux
• Light Spot Diameter: see table 1
• Principle: Triangulation
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): 30 mA
• Switching Frequency: 250 Hz
• Response Time: 2 ms
• Temperature Drift: < 5 %
• Temperature Range: -13°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• PNP Switching Output/Switching Current: 200 mA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: III
• Housing Material: Plastic
• Degree of Protection: IP67
• Connection: M12 × 1; 4-pin
• Weight: 42 g
• Scope of delivery: 1 × initial start-up instructions, 1 × sensor
• PNP NO: yes
• Detection Range: 100 mm, 300 mm, 500 mm
• Light Spot Diameter: 12 mm, 22 mm, 36 mm
