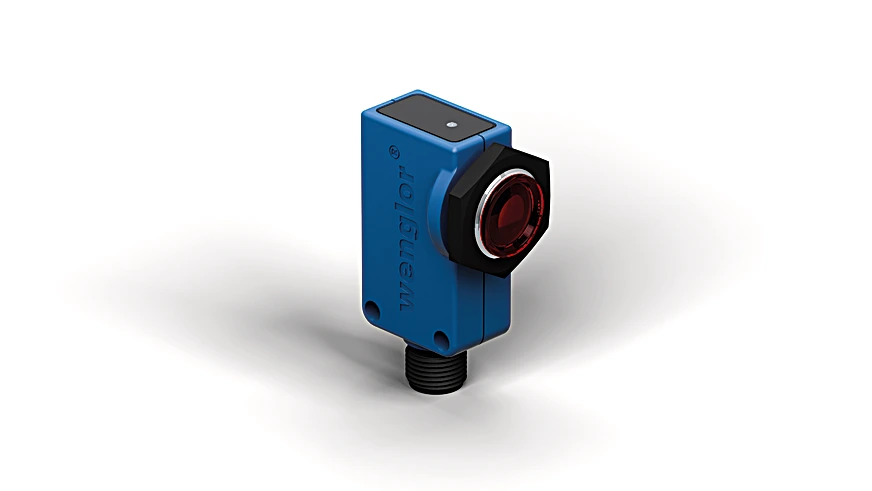

Wenglor OPT1004 Retro-Reflex Sensor for Transparent Objects

Retro-Reflex Sensor for Transparent Objects.

$234.00
Part Number
  • OPT1004
Highlights...

Features

  • Simple installation
  • Red light
  • Range: 1,200 mm
  • Reference Reflector/Reflector Foil: RR34SM
  • Switching Hysteresis: < 5 %
  • Light Source: Red Light
  • Polarization Filter: yes
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 5 °
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Switching Frequency: 2 kHz
  • Response Time: 250 µs
  • Temperature Drift: < 5 %
  • Temperature Range: 14°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Protection Class: III
  • Housing Material: Plastic, PBT, Stainless steel, V2A (1.4305/303)
  • Full Encapsulation: yes
  • Degree of Protection: IP67

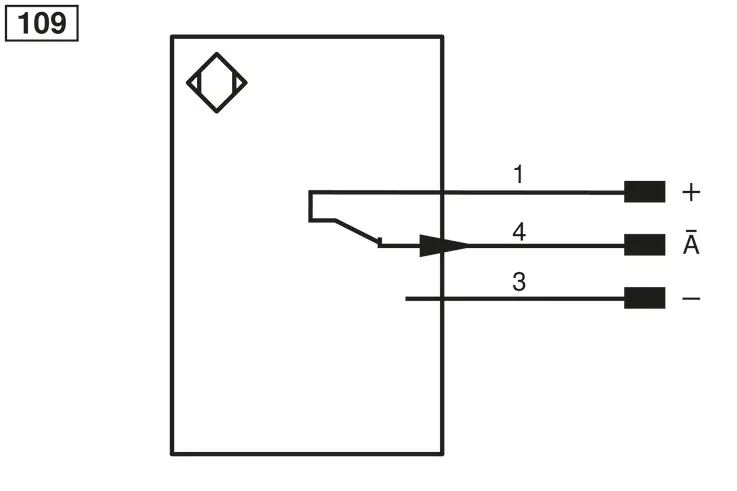

  • Connection: M12 × 1; 4-pin
  • Weight: 28 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M18-E012 hex nut, 1 × sensor
  • PNP NC: yes
  • External Information: Teach input deactivated , Normal mode preset, Flashing mode 3
  • Complementary Products: Reflector, Reflector Foil, Dust Extraction Tube STAUBTUBUS-01
A reflector must be used in combination with these sensors. They can be installed in all kinds of industrial environments thanks to ample functional reserve. Even reflective objects can be reliably recognized through the use of polarized light.
