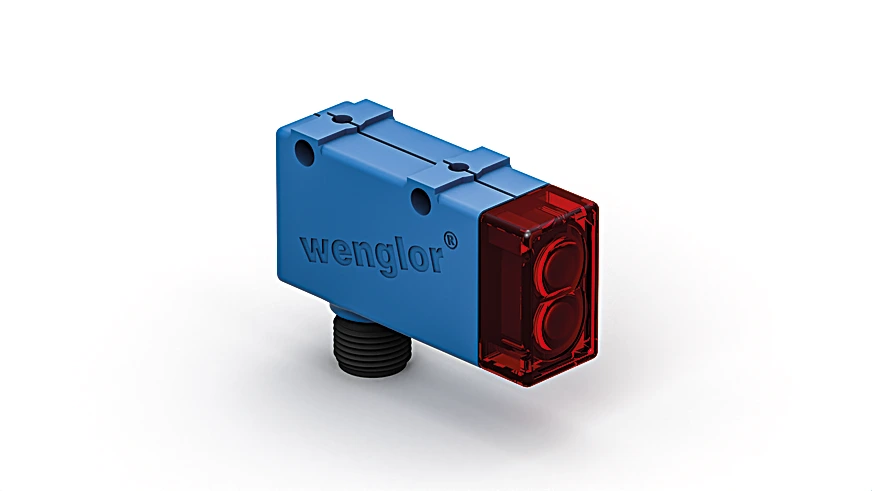

Wenglor OLM104A0002 Retro-Reflex Sensor Universal

Retro-Reflex Sensor Universal.

$370.00
Part Number
  • OLM104A0002
Highlights...

Features

  • Smallest recognizable part: 2,5 mm
  • Time delay
  • Special coated optics
  • Switching frequency: 500 Hz
  • Range: 10,000 mm
  • Reference Reflector/Reflector Foil: RQ100BA
  • Min. Distance to Reflector: 100 mm
  • Smallest Recognizable Part: > 2,500 µm
  • Switching Hysteresis: < 15 %
  • Light Source: Laser (red)
  • Wavelength: 670 nm
  • Polarization Filter: yes
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 0.6 °
  • Optics: Two-Lens Optic
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Switching Frequency: 500 Hz
  • Response Time: 1 ms
  • Off-Delay: 20 ms
  • Temperature Drift: < 10 %
  • Temperature Range: 14°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Protection Class: III
  • FDA Accession Number: 1120740-000

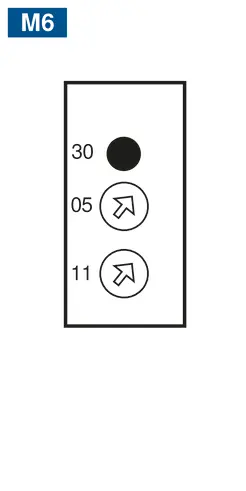

  • Setting Method: Potentiometer
  • Housing Material: Plastic, PBT
  • Coated Optics: yes
  • Full Encapsulation: yes
  • Degree of Protection: IP67
  • Connection: M12 × 1; 4-pin
  • Weight: 27 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • PNP NC, PNP NO: yes

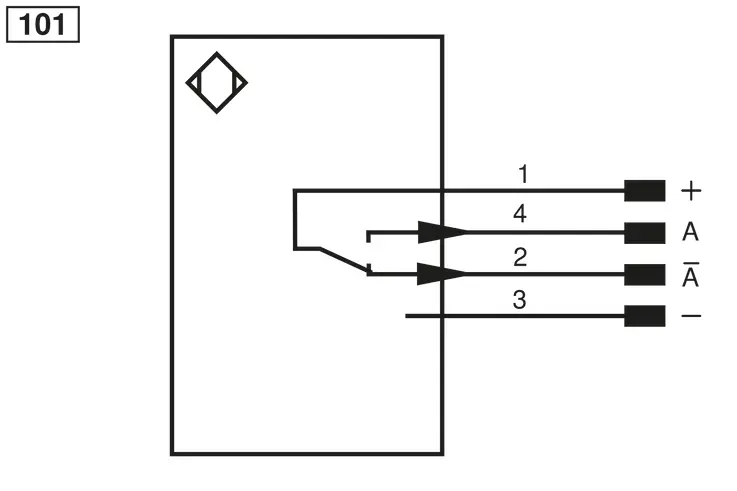

  • Circuit: NC, NC+NO, NO
  • Working Distance: 0,2 m, 5 m, 10 m
  • Light Spot Diameter: 5 mm, 35 mm, 70 mm
  • RQ100BA: 0.1 to 10 m
  • RE18040BA: 0.15 to 8 m
  • RQ84BA: 0.1 to 9 m
  • RR84BA: 0.1 to 9 m
  • RE9538BA: 0.1 to 4 m
  • RE6151BM: 0.15 to 9 m
  • RE6151BA: 0.1 to 3.5 m
  • RR50_A: 0.1 to 9 m
  • RE6040BA: 0.1 to 10 m
  • RE8222BA: 0.1 to 6 m
  • RR34_M: 0.2 to 6 m
  • RE3220BM: 0.2 to 4 m
  • RE6210BM: 0.25 to 3 m
  • RR25_M: 0.2 to 5 m
  • RR25KP: 0.15 to 2 m
  • RR21_M: 0.2 to 3 m
  • ZRAE02B01: 0.1 to 2.5 m
  • ZRME01B01: 0.1 to 1.5 m
  • ZRME03B01: 0.15 to 5.5 m
  • ZRMR02K01: 0.15 to 2 m
  • ZRMS02_01: 0.2 to 2.5 m
  • RF505: 0.2 to 1.7 m
  • RF255: 0.2 to 1.5 m
  • RF508: 0.2 to 1.7 m
  • RF258: 0.2 to 1.5 m
  • ZRAF07K01: 0.2 to 1.5 m
  • ZRAF08K01: 0.2 to 1.7 m
  • ZRDF__K01: 0.15 to 8 m
  • Complementary Products: Reflector, Reflector Foil, Protective Housing ZSV-0x-01, Set Protective Housing ZSM-NN-02, PNP-NPN Converter BG2V1P-N-2M
A reflector must be used in combination with these sensors. They can be installed in all kinds of industrial environments thanks to ample functional reserve. Even reflective objects can be reliably recognized through the use of polarized light.
