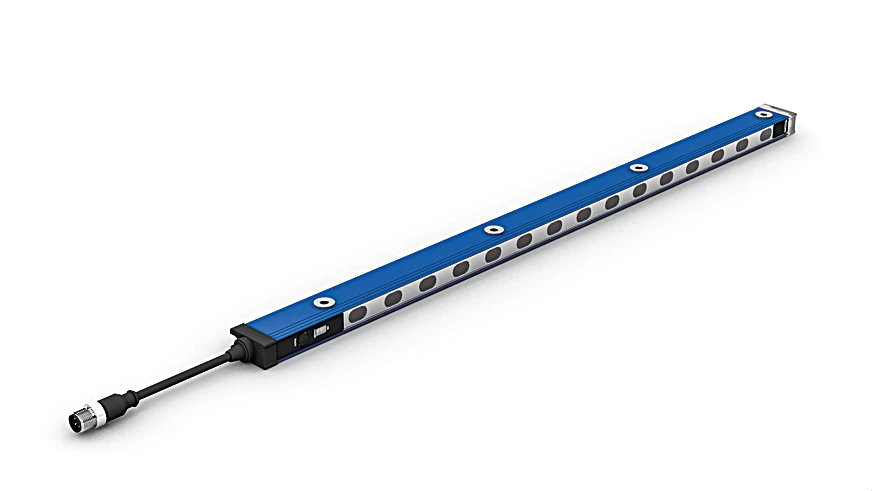

Wenglor OLEB422C0102 Light Curtain Pick-to-Light

Features

• Error prevention during partial picking processes in shelves and storage locations
• Low mounting thanks to integrated reflector
• Rugged aluminium housing
• 360° visible, two-color job display
• Range: 2,000 mm
• Min. Distance to Reflector: 100 mm
• Measurement Field Height (MFH): 420 mm
• Beam Distance: 30 mm
• Switching Hysteresis: < 15 %
• Light Source: Red Light
• Polarization Filter: yes
• Service Life (T = 77°F): 100,000 h
• Max. Ambient Light: 10,000 Lux
• Opening Angle: 2.5 °
• Optics: Two-Lens Optic
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 70 mA
• Switching Frequency: 40 Hz
• Response Time: 12 ms
• Temperature Drift: < 10 %
• Temperature Range: -13°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• PNP Switching Output/Switching Current: 200 mA
• Residual Current Switching Output: < 50 µA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: III
• Setting Method: Teach-In

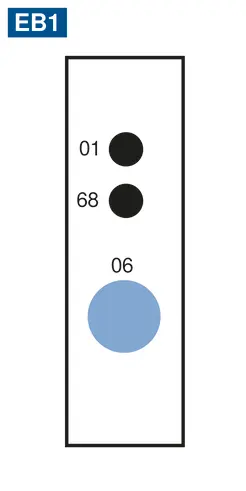

• Display: Illuminated cap
• Housing Material: Aluminum, powder-coated, Plastic, PC
• Optic Cover: Plastic, PMMA
• Degree of Protection: IP65

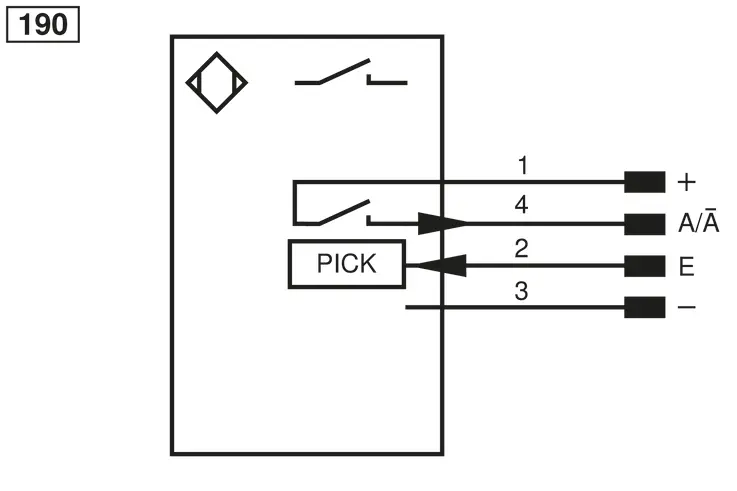

• Connection: M12 × 1; 4-pin
• Cable length (L): 250 mm

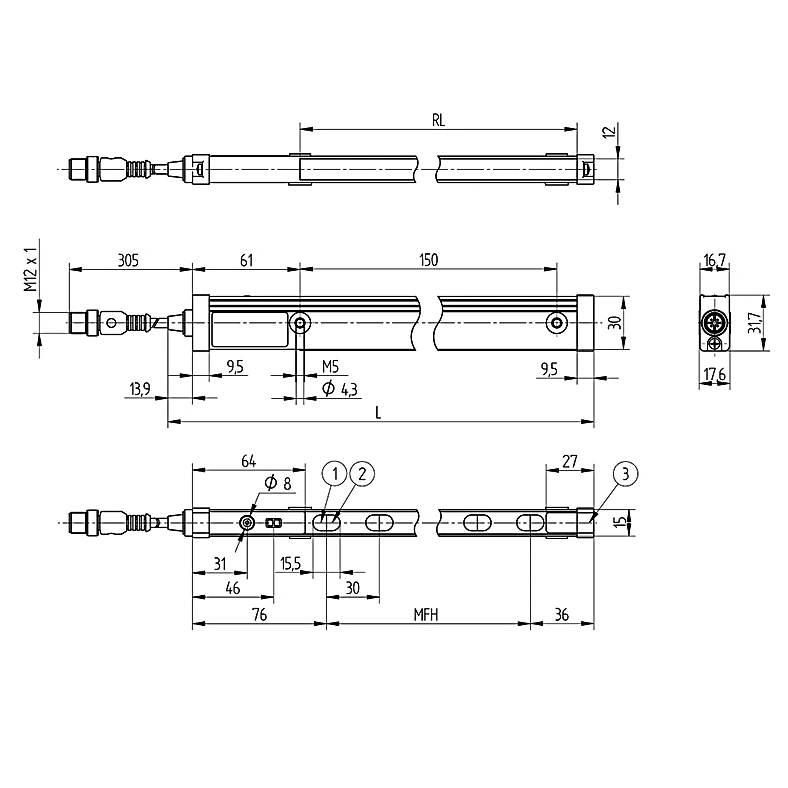

• Housing Length (L): 546 mm
• Reflector Length (RL): 486 mm
• Weight: 270 g
• Scope of delivery: 1 × initial start-up instructions, 1 × sensor
• PNP NO/NC switchable: yes
• Circuit: NC, NC/NO, NO
• Complementary Products: Reflector ZRDE12B03, Reflector Foil ZRDF10K01, PNP-NPN Converter BG2V1P-N-2M
