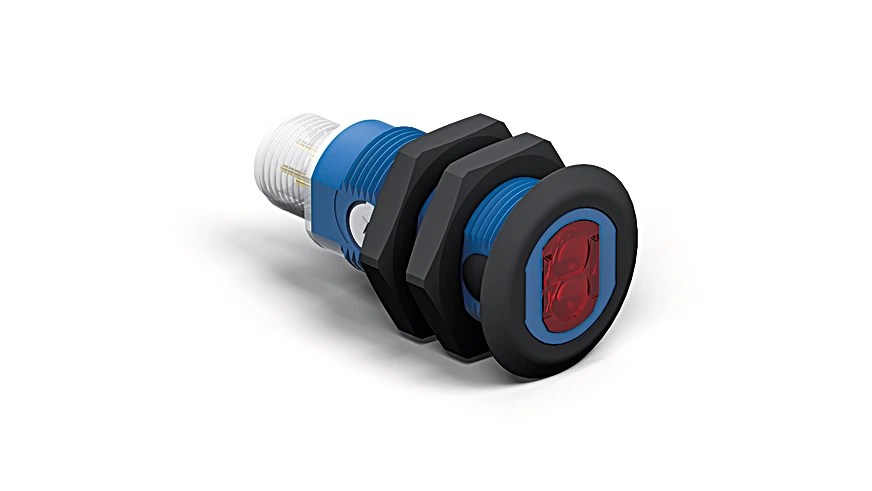

Wenglor OLDK503A0002 Retro-Reflex Sensor Universal

Retro-Reflex Sensor Universal.

$82.20
Part Number
  • OLDK503A0002
Highlights...

Features

  • Clever inclusive mounting technology
  • Simple installation
  • Glossy objects can be detected
  • IO-Link 1.1
  • Minimal installation space
  • Range: 5,000 mm
  • Reference Reflector/Reflector Foil: RQ100BA
  • Switching Hysteresis: < 15 %
  • Light Source: Red Light
  • Polarization Filter: yes
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 5 °
  • Light Spot Diameter: see table 1
  • Optics: Two-Lens Optic
  • Supply Voltage: 10 to 30 V DC
  • Supply Voltage with IO-Link: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Switching Frequency: 700 Hz
  • Switching frequency (speed mode): 900 Hz
  • Response Time: 0.7 ms
  • Response time (speed mode): 0.6 ms
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Interface: IO-Link V1.1
  • Protection Class: III

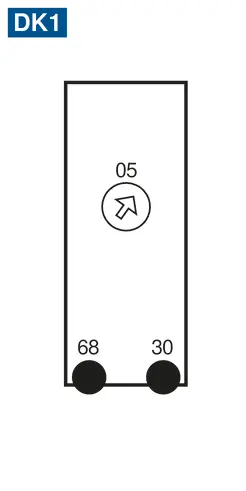

  • Setting Method: Potentiometer
  • Housing Material: Plastic, ABS-GF
  • Degree of Protection: IP67

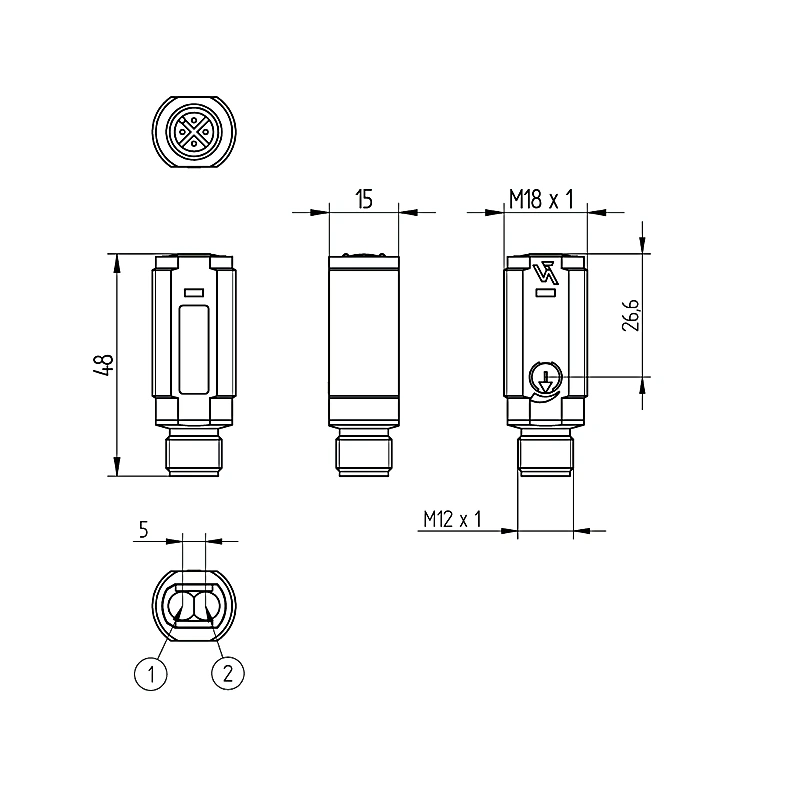

  • Connection: M12 × 1; 4-pin
  • Weight: 17 g
  • MTTFd (EN ISO 13849-1): 2,953.75 a
  • Scope of delivery: 1 × Z0008 mounting console, 1 × initial start-up instructions, 1 × MUTTER-M8-E002 hex nut, 1 × sensor
  • Packaging unit: 1 Piece
  • IO-Link: yes

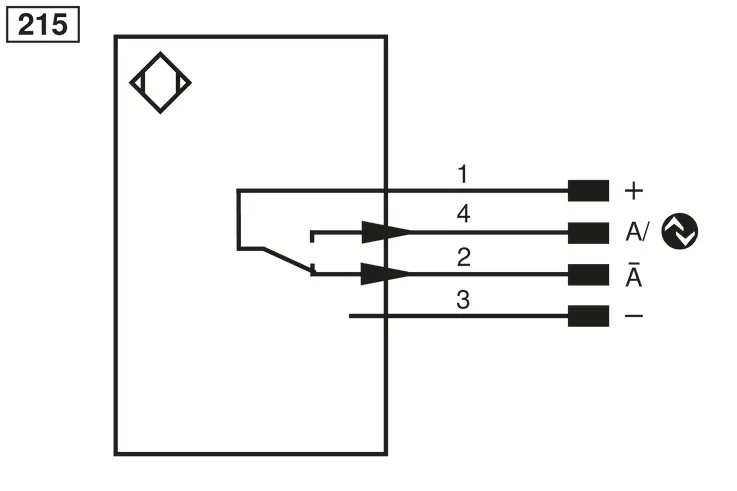

  • PNP NC, PNP NO: yes
  • Output: Push-pull, NPN, PNP
  • Circuit: NC, NC+NO, NO
  • Other parameters: Off-delay, On-delay, Mode of operation, Error output, Switching hysteresis, Emitted light
  • Working Distance: 0,2 m, 0,5 m, 5 m
  • Light Spot Diameter: 17 mm, 35 mm, 330 mm
  • RQ100BA: 0.01 to 5 m
  • RE18040BA: 0.01 to 4.5 m
  • RQ84BA: 0.01 to 4.5 m
  • RR84BA: 0.01 to 4.5 m
  • RE9538BA: 0.01 to 2.2 m
  • RE6151BM: 0.01 to 4.3 m
  • RR50_A: 0.01 to 3.5 m
  • RE6040BA: 0.01 to 4 m
  • RE8222BA: 0.01 to 2.6 m
  • RR34_M: 0.01 to 2.5 m
  • RE3220BM: 0.01 to 1.5 m
  • RE6210BM: 0.01 to 1 m
  • RR25_M: 0.01 to 1.3 m
  • RR25KP: 0.04 to 0.8 m
  • RR21_M: 0.01 to 1.1 m
  • ZRAE02B01: 0.01 to 2.2 m
  • ZRDS01R01: 0.05 to 0.8 m
  • ZRME01B01: 0.01 to 0.5 m
  • ZRME03B01: 0.01 to 2.5 m
  • ZRMR02K01: 0.01 to 0.7 m
  • ZRMS02_01: 0.01 to 1 m
  • RF505: 0.05 to 1.5 m
  • RF255: 0.05 to 1.1 m
  • RF508: 0.05 to 1.5 m
  • RF258: 0.05 to 1.1 m
  • RF4050: 0.05 to 1 m
  • ZRAF07K01: 0.05 to 1.1 m
  • ZRAF08K01: 0.05 to 1.5 m
  • ZRDF03K01: 0.04 to 3.4 m
  • ZRDF10K01: 0.04 to 4.5 m
  • Complementary Products: IO-Link Master, Reflector, Reflector Foil, Software, Dust Extraction Tube STAUBTUBUS-01
The retro-reflex sensor works with red light and a reflector. It also reliably detects objects with reflective or glossy surfaces at high speeds. Thanks to its great range, the sensor can, for example, be used to manage feed and presence controls as well as to detect objects on wide feed belts. The IO-Link interface can be used to configure retro-reflective barriers (PNP/NPN, NC/NO, switching distance), as well as for reading out switching statuses and signal values.
