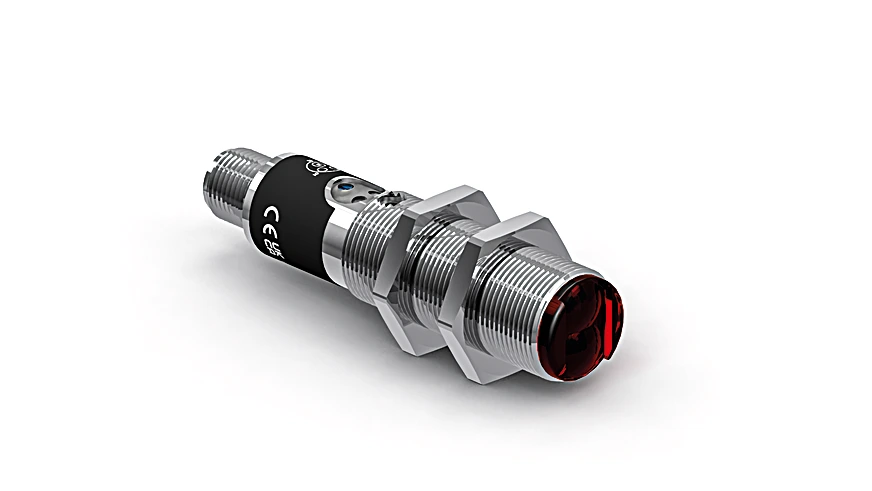

Wenglor OLD104C0003 Retro-Reflex Sensor Universal

Retro-Reflex Sensor Universal.

$370.00
Part Number
  • OLD104C0003
Highlights...

Features

  • Stainless steel housing
  • Smallest recognizable part: 0,1 mm
  • Special coated optics
  • Range: 10,000 mm
  • Reference Reflector/Reflector Foil: RQ100BA
  • Smallest Recognizable Part: 100 µm
  • Switching Hysteresis: > 15 %
  • Light Source: Laser (red)
  • Wavelength: 655 nm
  • Polarization Filter: yes
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 1 °
  • Beam Divergence: < 15 mrad
  • Light Spot Diameter: see table 1
  • Focus Distance: 350 mm
  • Optics: Two-Lens Optic
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Switching Frequency: 500 Hz
  • Response Time: 1 ms
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • FDA Accession Number: 1120739-000

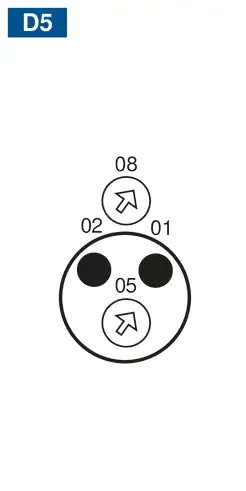

  • Setting Method: Potentiometer

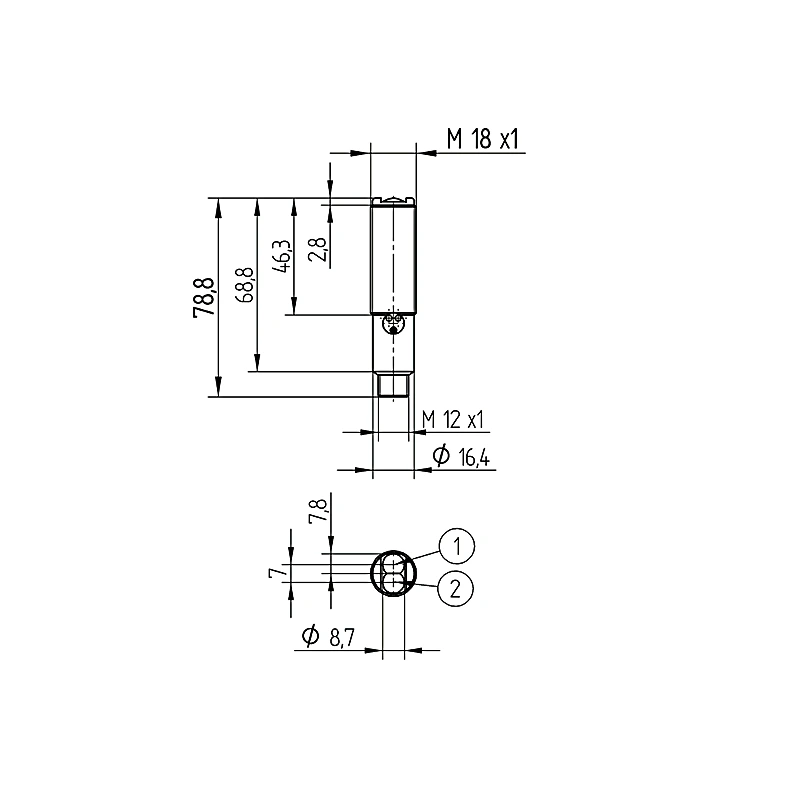

  • Housing Material: Stainless steel, V2A (1.4305/303)
  • Coated Optics: yes
  • Full Encapsulation: yes
  • Degree of Protection: IP67

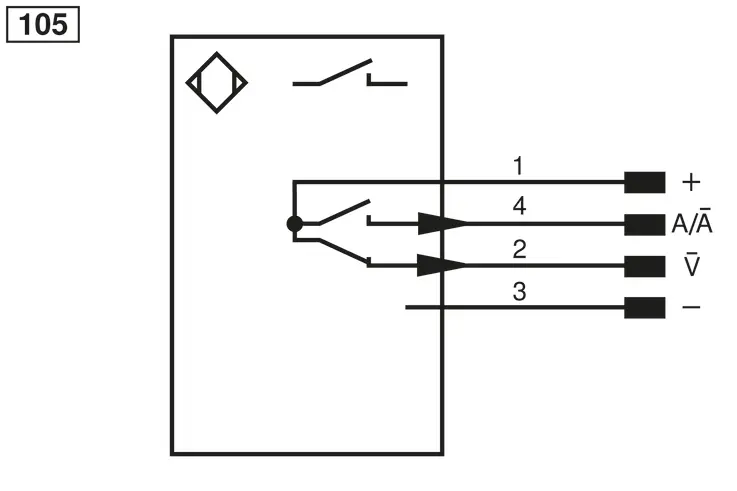

  • Connection: M12 × 1; 4-pin
  • Weight: 80 g
  • MTTFd (EN ISO 13849-1): 2,153.46 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M18-E003 hex nut, 1 × sensor
  • Contamination Output: yes
  • PNP NO: yes
  • Circuit: NC, NC/NO, NO
  • Working Distance: 0,2 m, 5 m, 10 m
  • Light Spot Diameter: 2 mm, 42,5 mm, 85 mm
  • RQ100BA: 0.65 to 10 m
  • RE18040BA: 0.65 to 6.5 m
  • RQ84BA: 0.8 to 8.5 m
  • RR84BA: 0.7 to 9 m
  • RE9538BA: 0.65 to 3.3 m
  • RE6151BM: 0.55 to 8 m
  • RE6151BA: 0.6 to 3.2 m
  • RR50_A: 0.8 to 6.5 m
  • RE6040BA: 0.65 to 9 m
  • RE8222BA: 0.75 to 4.5 m
  • RR34_M: 0.65 to 4 m
  • RE3220BM: 0.65 to 2.5 m
  • RE6210BM: 0.65 to 2.3 m
  • RR25_M: 0.5 to 3 m
  • RR25KP: 0.4 to 2 m
  • RR21_M: 0.5 to 2.3 m
  • ZRAE02B01: 0.8 to 4 m
  • ZRME01B01: 0.5 to 1.5 m
  • ZRME03B01: 0.5 to 3.5 m
  • ZRMR02K01: 0.55 to 1.5 m
  • ZRMS02_01: 0.85 to 2 m
  • RF505: 0.7 to 1.3 m
  • RF255: 0.7 to 1.3 m
  • RF508: 0.55 to 1 m
  • RF258: 0.55 to 1.5 m
  • ZRAF07K01: 0.7 to 1.3 m
  • ZRAF08K01: 0.7 to 1.3 m
  • ZRDF__K01: 0.6 to 5 m
  • Complementary Products: Reflector, Reflector Foil, Dust Extraction Tube STAUBTUBUS-01, PNP-NPN Converter BG2V1P-N-2M
A reflector must be used in combination with these sensors. They can be installed in all kinds of industrial environments thanks to ample functional reserve. Even reflective objects can be reliably recognized through the use of polarized light.
