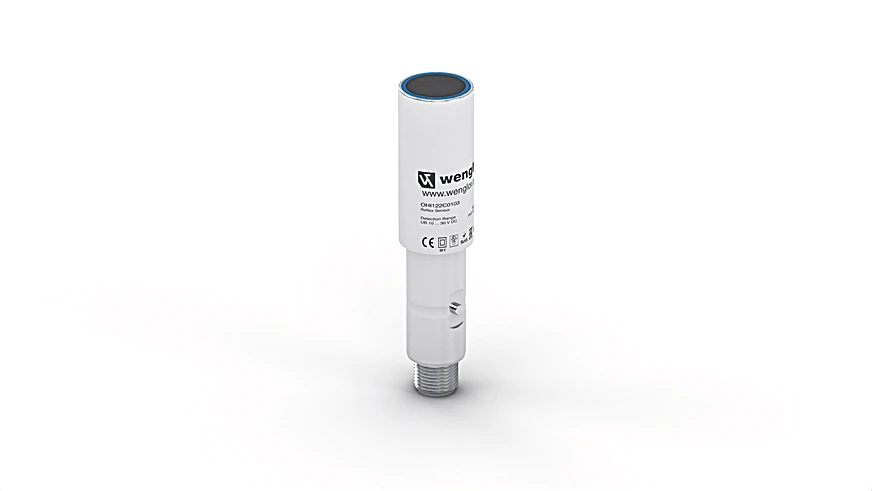

Wenglor OKI403C0103 Retro-Reflex Sensor for Transparent Objects

Retro-Reflex Sensor for Transparent Objects.

$264.00
Part Number
  • OKI403C0103
Highlights...

Features

  • Made with food safe materials that are FDA approved
  • Hygienic design makes it easy to clean
  • Waterproof (IP68/IP69K)
  • External teach-in
  • Range: 4,000 mm
  • Reference Reflector/Reflector Foil: RQ100BA
  • Clear Glass Recognition: yes
  • Switching Hysteresis: < 5 %
  • Light Source: Red Light
  • Polarization Filter: yes
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 3 °
  • Optics: Single-Lens Optic
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Switching Frequency: 1,600 Hz
  • Response Time: 313 µs
  • On-/Off-Delay (RS-232): 0 to 5 s
  • Temperature Drift: < 5 %
  • Temperature Range: 14°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Teach Mode: NT, MT, XT
  • Protection Class: III
  • Setting Method: Teach-In
  • Housing Material: Stainless steel, V4A (1.4404/316L)
  • Degree of Protection: IP69K, IP68
  • Connection: M12 × 1; 4-pin
  • Optic Cover: Plastic, PMMA (FDA)
  • Weight: 82 g
  • Approvals: FDA compliant
  • PNP NC: yes
  • External teach-in input: yes
  • RS-232 with Adapterbox: yes
  • Circuit: NC, NC/NO, NO
  • RQ100BA: 0 to 4 m
  • RE18040BA: 0 to 2.5 m
  • RQ84BA: 0 to 3.5 m
  • RR84BA: 0 to 4 m
  • RE9538BA: 0 to 1.5 m
  • RE6151BM: 0 to 3.4 m
  • RR50_A: 0 to 2.6 m
  • RE6040BA: 0 to 3.2 m
  • RE8222BA: 0 to 1.9 m
  • RR34_M: 0 to 1.6 m
  • RE3220BM: 0 to 0.8 m
  • RE6210BM: 0 to 0.7 m
  • RR25_M: 0 to 1 m
  • RR25KP: 0 to 0.55 m
  • RR21_M: 0 to 0.9 m
  • Z90R001: 0 to 0.7 m
  • ZRAE02B01: 0 to 1.6 m
  • ZRDS01R01: 0 to 0.7 m
  • ZRME01B01: 0 to 0.4 m
  • ZRME03B01: 0 to 1.6 m
  • ZRMR02K01: 0 to 0.5 m
  • ZRMS02_01: 0 to 0.7 m
  • Z90R012: 0 to 1 m
  • Z90R013: 0 to 2.43 m
  • Z90R014: 0 to 2.1 m
  • Z90R015: 0 to 1.2 m
  • Complementary Products: Adapterbox A232, Reflector, Reflector Foil, Reflector in Stainless Steel Protective Housing, PNP-NPN Converter BG2V1P-N-2M, Software

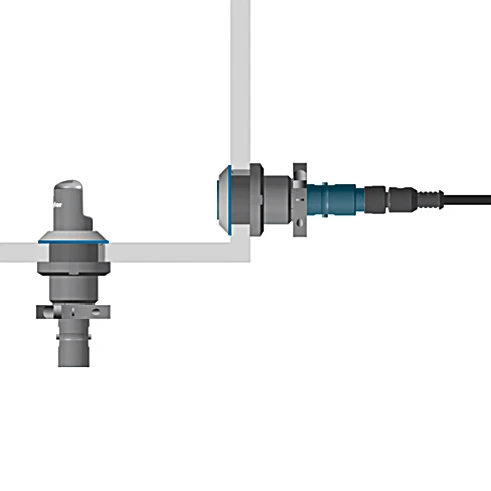

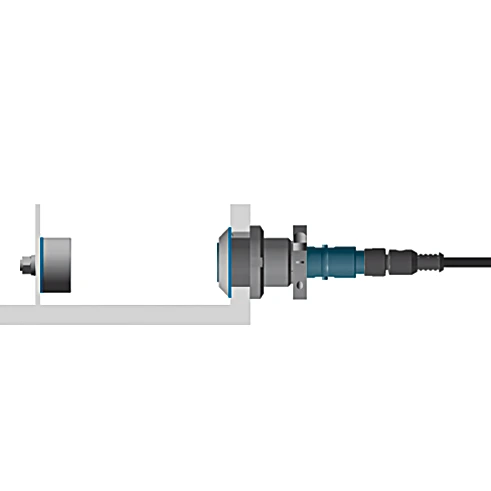

The sensors are distinguished by their innovative format, which allows dirt and cleaning agents to flow off them. A large number of components form a complete system that integrates seamlessly into the machine. The laser-welded 316L stainless steel housing (1.4404/V4A) is corrosion-free and resistant to cleaning agents. Mounted flush with a bayonet lock and fitted with undetachable optics, it is also ideal for environments that require a great deal of cleaning. Setting is performed by external teach-in.
