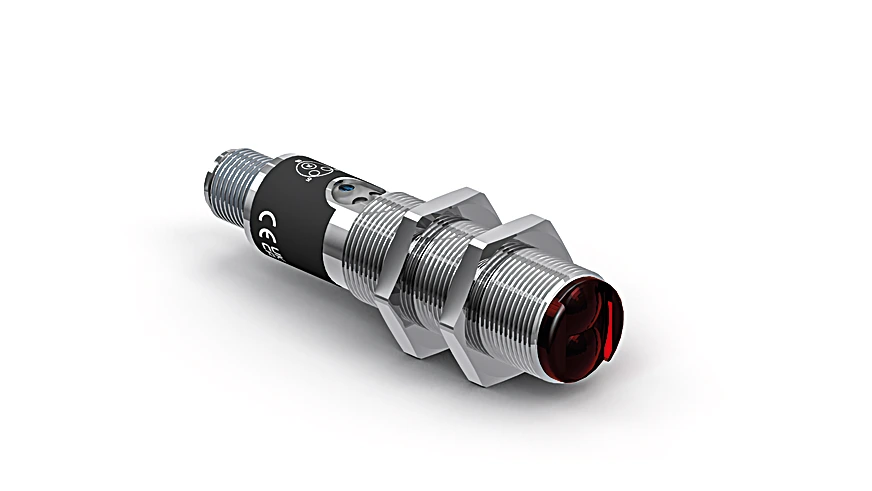

Wenglor OHD202A0103 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$203.00
Part Number
  • OHD202A0103
Highlights...

Features

  • Stainless steel housing
  • Adjustable switching distance
  • Electronic background suppression
  • Red light
  • Range: 200 mm
  • Setting Range: 35 to 200 mm
  • Switching Hysteresis: < 5 %
  • Light Source: Red Light
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Principle: Triangulation
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Switching Frequency: 1,000 Hz
  • Response Time: 500 µs
  • Temperature Drift: < 5 %
  • Temperature Range: -13°F to 140°F
  • Number of Switching Outputs: 2
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III

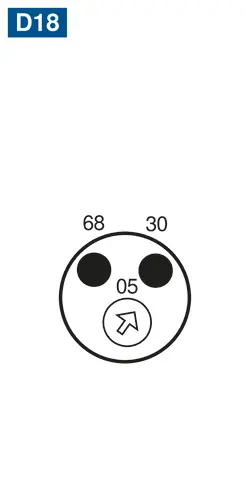

  • Setting Method: Potentiometer
  • Housing Material: Stainless steel, V2A (1.4305/303)
  • Full Encapsulation: yes
  • Degree of Protection: IP67
  • Connection: M12 × 1; 4-pin
  • Weight: 36 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M18-E003 hex nut, 1 × sensor
  • PNP NC, PNP NO: yes
  • Circuit: NC, NC+NO, NO
  • Detection Range: 100 mm, 200 mm
  • Light Spot Diameter: 5 mm, 12 mm
  • Complementary Products: Dust Extraction Tube STAUBTUBUS-01, PNP-NPN Converter BG2V1P-N-2M
These sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape and surface characteristics of the object have practically no influence on sensor switching performance.
