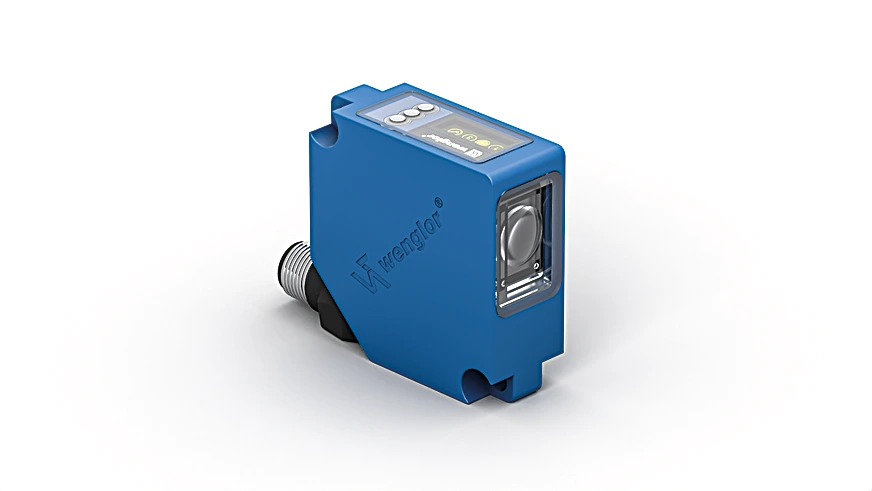

Wenglor OFP401P0189 Color Sensor

Color Sensor.

$1,229.00
Part Number
  • OFP401P0189
Highlights...

Features

  • Extremely fine color nuances can be recognized
  • Reflex mode operation
  • Teach-in, external teach-in
  • Working Range: 30 to 40 mm
  • Working Distance: 35 mm
  • Light Source: White Light
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: 3 mm
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 80 mA
  • Switching Frequency: 1.8 kHz
  • Response time: ~ 1.8/1,000 μs × filter
  • Temperature Range: -13°F to 140°F
  • Number of Switching Outputs: 3
  • Switching Output Voltage Drop: 1.5 V
  • PNP Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Teach Mode: FT
  • Interface: RS-232
  • Number of Digital Inputs: 2
  • Protection Class: III
  • Setting Method: Menu (OLED)
  • Housing Material: Plastic, ABS, Plastic, PC
  • Optic Cover: Plastic, PMMA
  • Degree of Protection: IP68
  • Connection: M12 × 1; 8-pin
  • Weight: 44 g
  • MTTFd (EN ISO 13849-1): 425.77 a
  • Scope of delivery: 1 × BEF-SET-44 mounting set, 1 × initial start-up instructions, 1 × sensor
  • RS-232 Interface: yes
  • Error Output: yes
  • Contamination Output: yes
  • Push-Pull: yes
  • NO: yes
  • External teach-in input: yes
  • Output: Error Output, Push-pull, NPN, PNP, Contamination Output
  • Circuit: NC, NC/NO, NO
  • Other parameters: Teach-in mode
  • Complementary Products: Interface Cable S232W3, Protective Housing ZSV-0x-01, Set Protective Housing ZSP-NN-02, Fieldbus Gateway ZAGxxxN01, EPGG001, Software, Dust extraction tube
This color sensor is capable of evaluating up to three colors simultaneously. A small spot and a large working range are made possible thanks to single-lens optics. All sensor settings can be selected by means of teach-in, as well as via the RS-232 interface. Values generated by the sensor can be read out via the interface or digital switching outputs. The sensor has 3 switching outputs and supplies RGB, XYZ and HSL color values via the interface.
