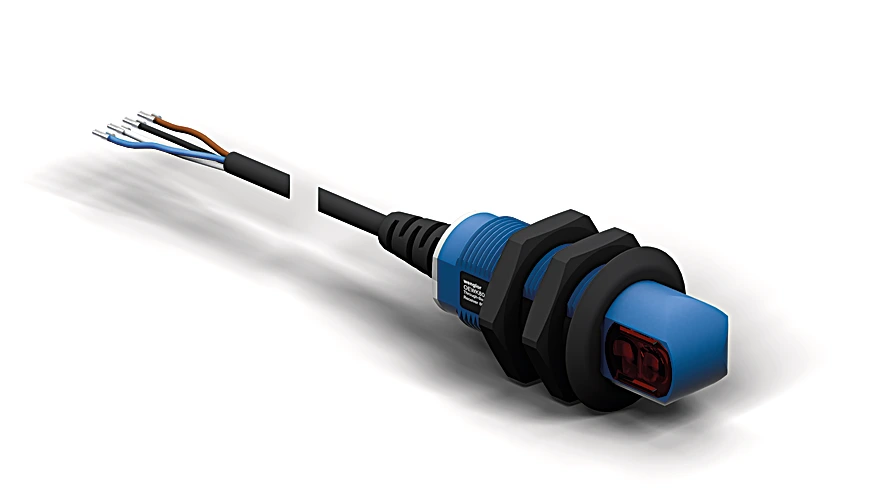

Wenglor OEWK803A0091 Through-Beam Sensor

Features

• Switching distance adjuster
• Clever inclusive mounting technology
• Simple installation
• Large working range
• Minimal installation space
• Range: 8,000 mm
• Switching Hysteresis: < 15 %
• Light Source: Red Light
• Service Life (T = 77°F): 100,000 h
• Max. Ambient Light: 10,000 Lux
• Opening Angle: 4 °
• Sensor Type: Receiver
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 20 mA
• Switching Frequency: 600 Hz
• Response Time: 833 µs
• Temperature Drift: < 10 %
• Temperature Range: -13°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• PNP Switching Output/Switching Current: 100 mA
• Residual Current Switching Output: < 50 µA
• Short Circuit and Overload Protection: yes
• Reverse Polarity Protection: yes
• Protection Class: III

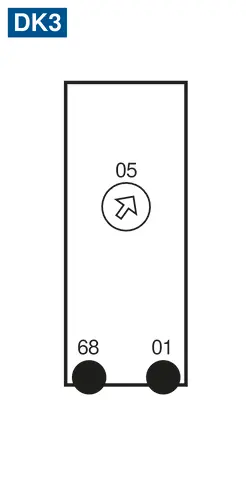

• Setting Method: Potentiometer
• Housing Material: Plastic, ABS-GF
• Degree of Protection: IP67

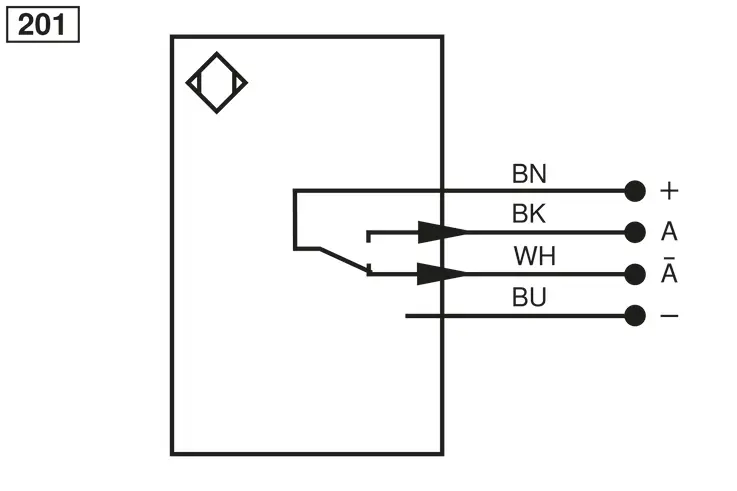

• Connection: Cable; 4-wire
• Cable length (L): 2 m
• Cable Jacket Material: PVC
• Weight: 59 g
• Scope of delivery: 1 × mounting console, 1 × initial start-up instructions, 1 × MUTTER-M18-E012 hex nut, 1 × sensor
• Packaging unit: 1 Piece
• PNP NC, PNP NO: yes
• Circuit: NC, NC+NO, NO
