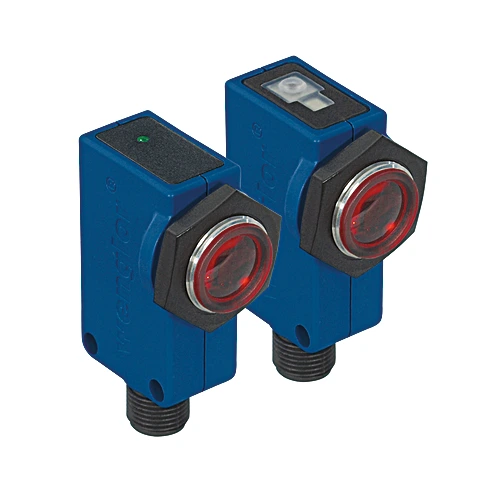

Wenglor OERS947 Through-Beam Sensor for PET Selection

Through-Beam Sensor for PET Selection.

$325.00
Part Number
  • OERS947
Highlights...

Features

  • Compact housing
  • Teach-in and external teach-in
  • Polarization filter
  • Simple installation
  • Coded output
  • Range: 300 mm
  • Light Source: Red Light
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 4 °
  • Sensor Type: Receiver
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 20 mA
  • Switching Frequency: 150 Hz
  • Response Time: 1.8 ms
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Number of Switching Outputs: 2
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Setting Method: Teach-In
  • Housing Material: Plastic, PBT, Stainless steel, V2A (1.4305/303)
  • Full Encapsulation: yes
  • Degree of Protection: IP67
  • Connection: M12 × 1; 5-pin
  • Weight: 28 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M18-E012 hex nut, 1 × sensor
  • PNP NO: yes
  • External teach-in input: yes
  • Complementary Products: Dust Extraction Tube STAUBTUBUS-01

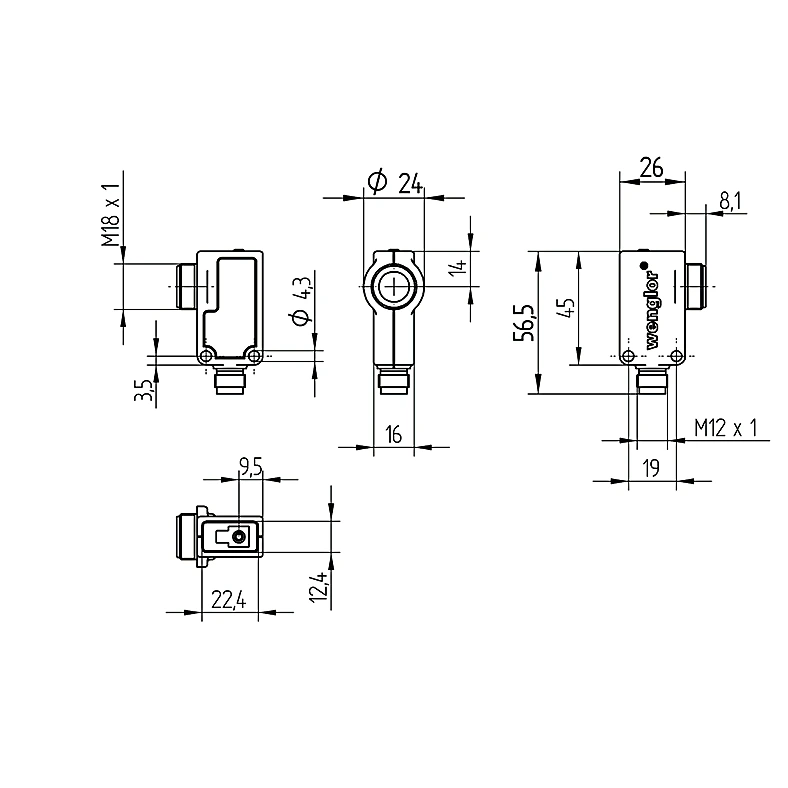

These through-beam sensors distinguish transparent PET from other transparent materials such as glass and opaque objects. They have two switch outputs for representing these two states. The sensor can be tested for its function by means of the test input. Furthermore, several transmitters can be synchronized whereby close sensors do not affect each other. The M18 threaded mounting enables the Sensor to be easily mounted and protected mechanically.
