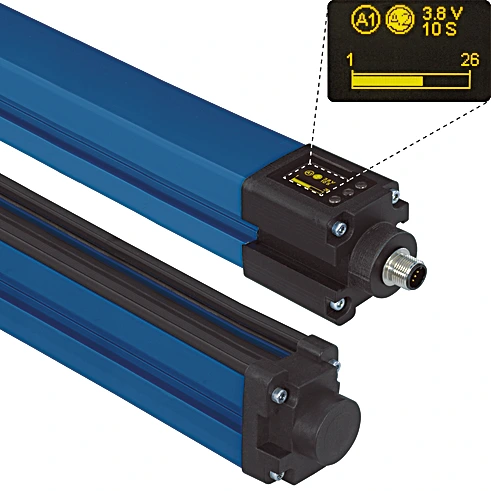

Wenglor OEEI501U0135 Light Curtain for Measuring Tasks

Light Curtain for Measuring Tasks.

$548.00
Part Number
  • OEEI501U0135
Highlights...

Features

  • Graphical display for easy operation
  • Integrated evaluation unit
  • Recognition of small parts
  • Object detection and measurement
  • Range: 2,000 mm
  • Measurement Field Height (MFH): 50 mm
  • Beam Distance: 2 mm
  • Light Source: Infrared Light
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 10 °
  • Sensor Type: Receiver
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 60 mA
  • Switching Frequency: 150 Hz
  • Response Time: 3 ms
  • On-/Off-Delay: 0 to 10 s
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Number of Switching Outputs: 2
  • Switching Output Voltage Drop: < 2.5 V
  • Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 50 µA
  • Analog Output: 0 to 10 V
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Interface: IO-Link V1.0
  • Protection Class: III
  • Setting Method: Menu (OLED)
  • Housing Material: Aluminum, powder-coated, Plastic, PA, Plastic, PBT
  • Optic Cover: Plastic, PC
  • Degree of Protection: IP65

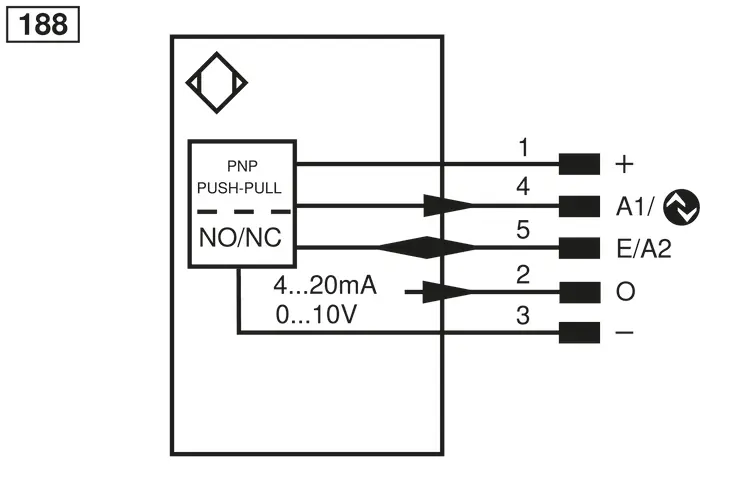

  • Connection: M12 × 1; 5-pin
  • Weight: 300 g
  • MTTFd (EN ISO 13849-1): 282.15 a
  • Scope of delivery: 1 × BEF-SET-33 mounting set, 1 × initial start-up instructions, 1 × sensor
  • PNP NC: yes
  • IO-Link: yes
  • External teach-in input: yes
  • Analog output: 0 to 10 V, 4 to 20 mA
  • Output: Error Output, Push-pull, PNP
  • Circuit: NC, NC/NO, NO
  • Other parameters: Off-delay, On-delay
  • Complementary Products: IO-Link Master, Analog Evaluation Unit AW02, Software
As these light curtains for measurement task are equipped with an integrated evaluation unit, external connection units are not needed. Objects are both recognized (via the digital output) and measured (via the analog output). The light curtains can be set up easily using the menu-controlled graphic display. Convenient parametrization and quick diagnosis is possible via the IO-Link interface. The adequate mounting angle BEF-SET-33 is included in the delivery.
