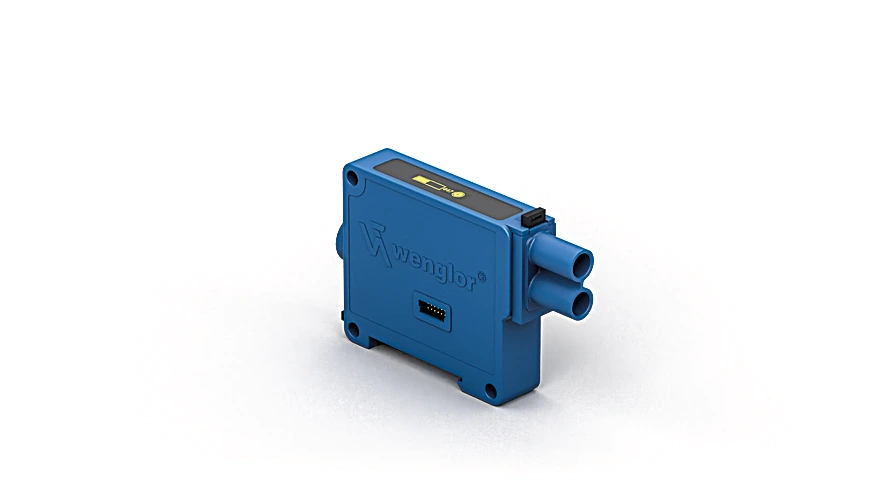

Wenglor ODXS960 Fiber-optic amplifier

Features

• Recognition of transparent objects
• No wiring required thanks to plug connector
• Mount for fiber optic cable adapter 3
• Increased light output
• Add-on module for ODXS959
• Switching Hysteresis: 15 %
• Light Source: Red Light
• Wavelength: 660 nm
• Service Life (T = 77°F): 100,000 h
• Max. Ambient Light: 10,000 Lux
• Current Consumption (Ub = 24 V): + 20 mA
• Response Time: + 70 µs
• On-/Off-Delay: 0 to 10,000 ms
• Temperature Drift: < 10 %
• Temperature Range: -13°F to 122°F
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Teach Mode: NT, MT, ZT, DT, FT, HT, TP
• Protection Class: III

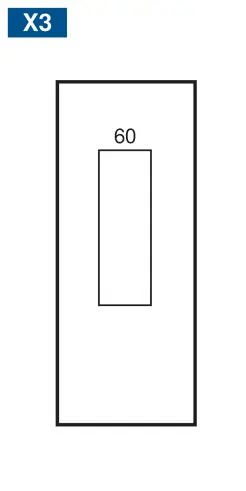

• Setting Method: Menu (OLED)
• Housing Material: Plastic, ABS, Plastic, PC
• Degree of Protection: IP50
• DIN-Rail mounting: 35 mm
• Weight: 37 g
• MTTFd (EN ISO 13849-1): 1,089 a
• Scope of delivery: 1 × sensor
• PNP NO: yes
• Output: NPN, PNP, Push-pull
• Circuit: NC, NC/NO, NO
• Complementary Products: Plastic Fiber-Optic Cable, Glass Fiber-Optic Cable
