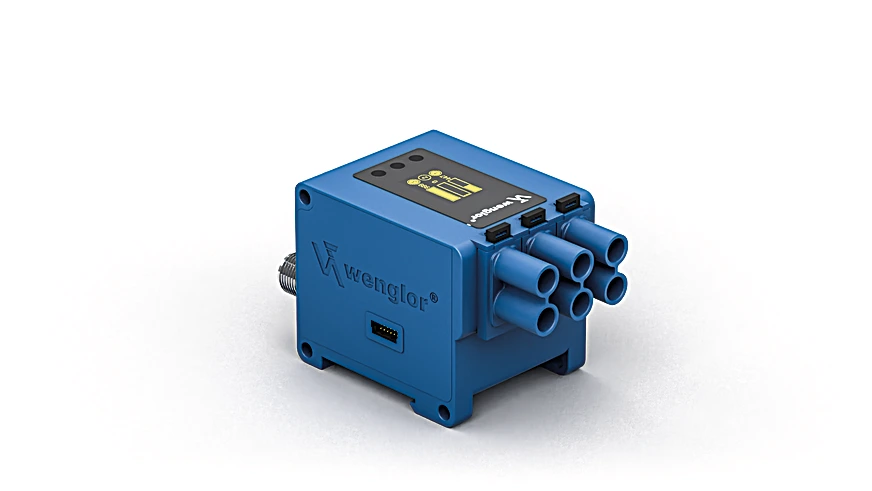

Wenglor ODXS959 Fiber-optic amplifier

Features

• Recognition of transparent objects
• Basic module
• Mount for fiber optic cable adapter 3
• Modular system – 12 add-on modules can be connected, ODXS960
• Menu-driven settings
• Increased light output
• Switching Hysteresis: < 15 %
• Light Source: Red Light
• Wavelength: 660 nm
• Service Life (T = 77°F): 100,000 h
• Max. Ambient Light: 10,000 Lux
• Supply Voltage: 18 to 30 V DC
• Current Consumption (Ub = 24 V): < 90 mA
• Switching Frequency: 2 kHz
• Response Time: 250 µs
• On-/Off-Delay: 0 to 10,000 ms
• Temperature Drift: < 10 %
• Temperature Range: -13°F to 122°F
• Switching Output Voltage Drop: < 2.5 V
• Switching Output/Switching Current: 100 mA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Teach Mode: NT, MT, ZT, DT, FT, HT, TP
• Interface: IO-Link V1.0
• IO-Link Parameter: > 12
• Protection Class: III
• Setting Method: Menu (OLED)
• Housing Material: Plastic, ABS, Plastic, PC
• Degree of Protection: IP50

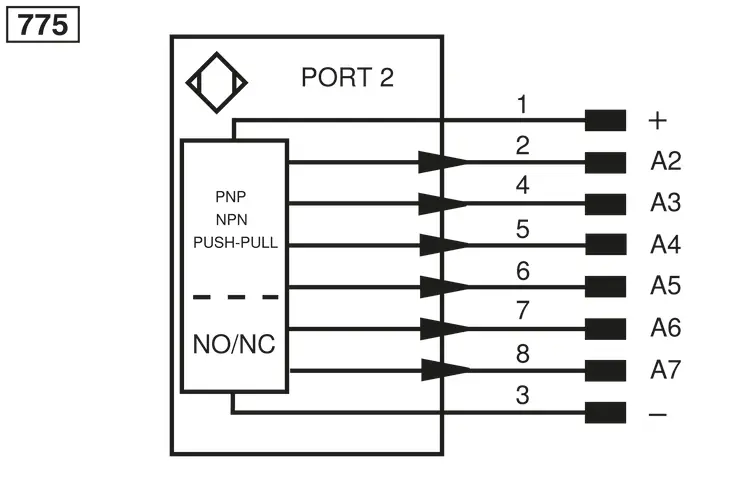

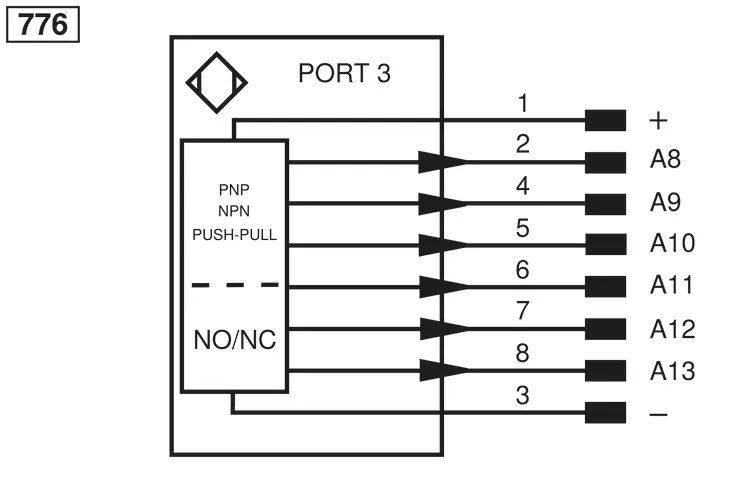

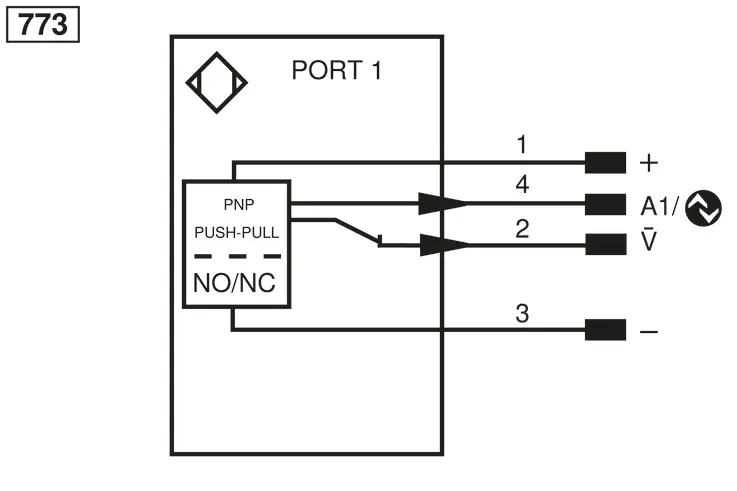

• Connection: M12 × 1; 4+8-pin
• DIN-Rail mounting: 35 mm
• Weight: 202 g
• MTTFd (EN ISO 13849-1): 347.83 a
• Speed Measurement: X
• Selectable menu language: X
• Password Protection: X
• Logic Output: AND / OR
• Scope of delivery: 1 × initial start-up instructions, 1 × sensor, 1 × locking screw
• Contamination Output: yes
• IO-Link: yes
• PNP NO: yes
• Output: Push-pull, NPN, PNP, Contamination Output
• Circuit: NC, NC/NO, NO
• Other parameters: Off-delay, On-delay, Teach-in mode
• Complementary Products: Plastic Fiber-Optic Cable, Glass Fiber-Optic Cable, IO-Link Master, Software, Add-on module ODXS960
