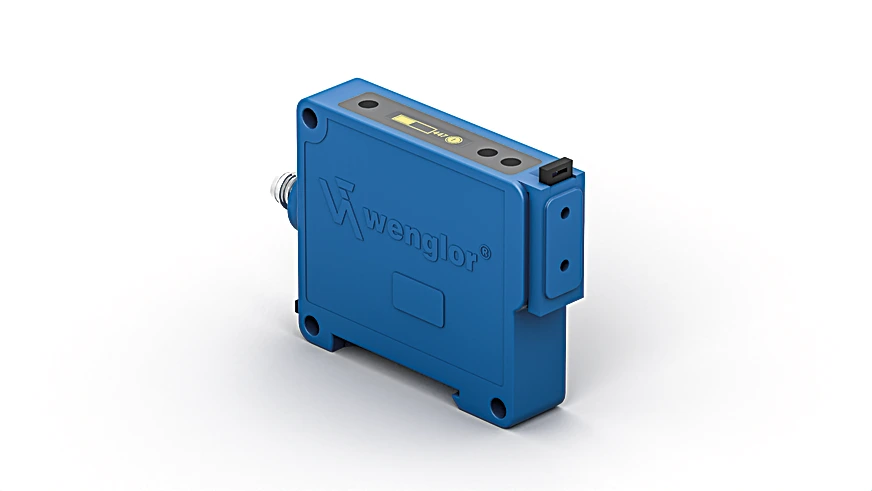

Wenglor ODX402P0007 Fiber-optic amplifier

Features

• Recognition of transparent objects
• Menu-driven settings
• External teach-in
• Teach-in
• Mount for fiber optic cable adapter 3
• Switching Hysteresis: < 15 %
• Light Source: Red Light
• Wavelength: 660 nm
• Service Life (T = 77°F): 100,000 h
• Max. Ambient Light: 10,000 Lux
• Supply Voltage: 18 to 30 V DC
• Current Consumption (Ub = 24 V): < 40 mA
• Switching Frequency: 4 kHz
• Response Time: 125 µs
• On-/Off-Delay: 0 to 10,000 ms
• Temperature Drift: < 10 %
• Temperature Range: -13°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• Switching Output/Switching Current: 100 mA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Teach Mode: NT, MT, ZT, DT, FT, HT, TP
• Interface: IO-Link V1.0
• IO-Link Parameter: > 12
• Protection Class: III

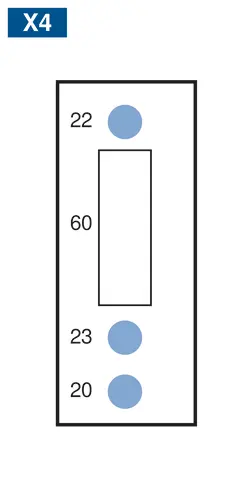

• Setting Method: Menu (OLED)
• Housing Material: Plastic, ABS, Plastic, PC
• Degree of Protection: IP65

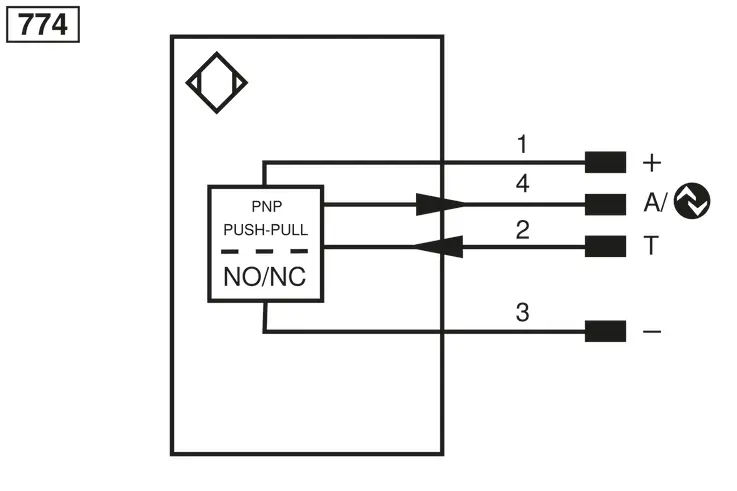

• Connection: M8 × 1; 4-pin
• DIN-Rail mounting: 35 mm
• Weight: 41 g
• MTTFd (EN ISO 13849-1): 849.77 a
• Selectable menu language: X
• Password Protection: X
• Scope of delivery: 1 × initial start-up instructions, 1 × sensor
• IO-Link: yes
• PNP NO: yes
• External teach-in input: yes
• Output: Push-pull, PNP
• Circuit: NC, NC/NO, NO
• Other parameters: Off-delay, On-delay, Teach-in mode
• Complementary Products: Plastic Fiber-Optic Cable, Glass Fiber-Optic Cable, IO-Link Master, Software
