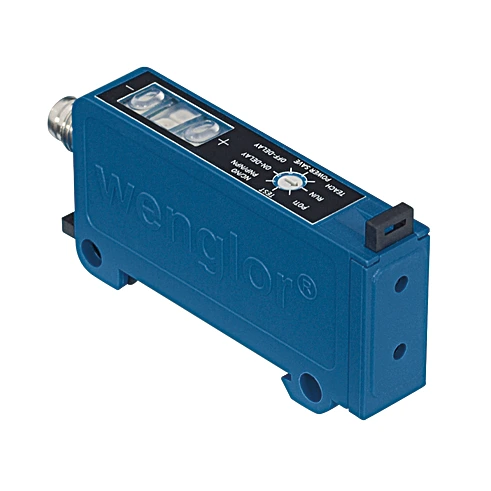

Wenglor ODX202P0007 Fiber-optic amplifier

Fiber-optic amplifier.

$201.00
Part Number
  • ODX202P0007
Highlights...

Features

  • Recognition of transparent objects
  • Large detection and working range
  • Reflex and through-beam operation mode are possible
  • External teach-in

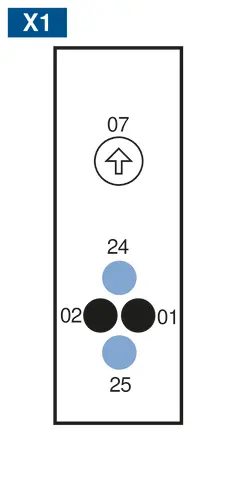

  • Key potentiometer, teach-in
  • Mount for fiber optic cable adapter 3
  • Switching Hysteresis: < 15 %
  • Light Source: Red Light
  • Wavelength: 660 nm
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Switching Frequency: 2 kHz
  • Response Time: 250 µs
  • On-/Off-Delay: 0 to 200 ms
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Teach Mode: NT, MT, ZT, DT, TP
  • Protection Class: III
  • Setting Method: Teach-In
  • Housing Material: Plastic, PBT
  • Full Encapsulation: yes
  • Degree of Protection: IP65

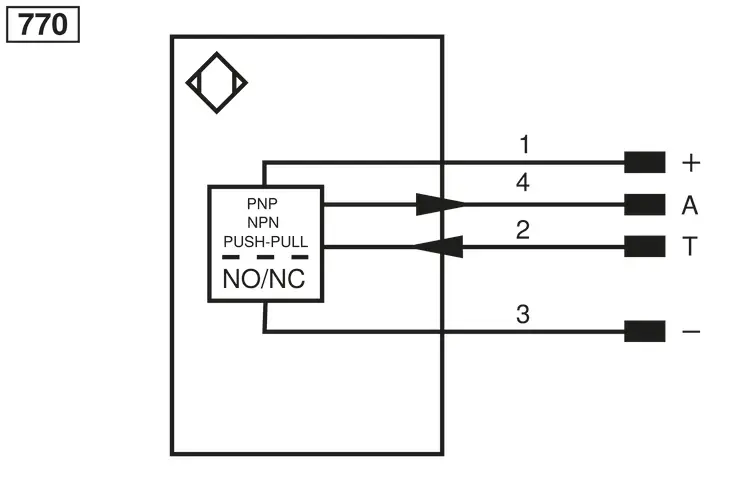

  • Connection: M8 × 1; 4-pin
  • DIN-Rail mounting: 35 mm
  • Weight: 25 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • Configurable as PNP/NPN/Push-Pull: yes
  • Switchable to NC/NO: yes
  • External teach-in input: yes
  • Output: Push-pull, NPN, PNP
  • Circuit: NC, NC/NO, NC+NO
  • Complementary Products: Plastic Fiber-Optic Cable, Glass Fiber-Optic Cable
wenglor fiber-optic cables are connected to these sensors. The easy to use teach-in function allows for fine sensor adjustment, so that even transparent objects can be reliably recognized in through-beam mode operation. The scanning width is automatically adapted to each individual application via external teach-in. The sensors can be easily mounted to standard DIN rails.
