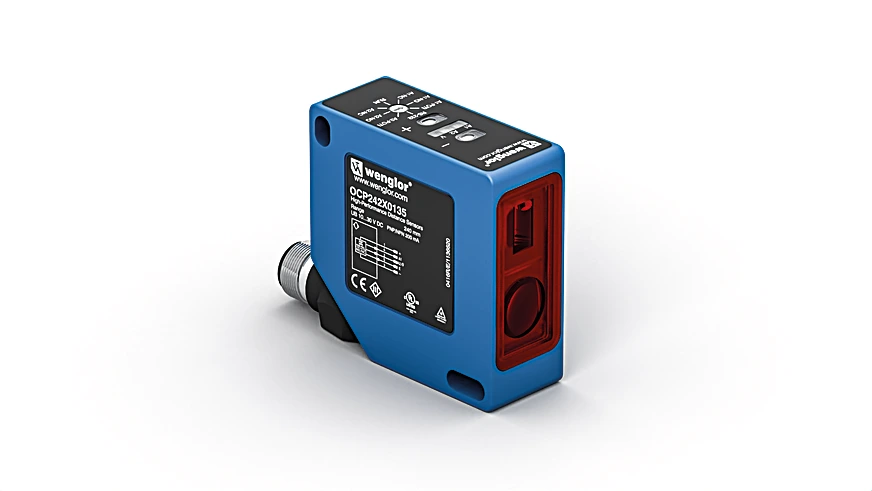

Wenglor OCP662X0135 Laser Distance Sensor Triangulation

Laser Distance Sensor Triangulation.

$814.00
Part Number
  • OCP662X0135
Highlights...

Features

  • CMOS line array
  • Highly accurate switching distance
  • Minimal switching hysteresis
  • Switching point independent of material, color and brightness
  • Range: 660 mm
  • Setting Range: 60 to 660 mm
  • Switching Hysteresis: < 1 %
  • Light Source: Laser (red)
  • Wavelength: 655 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: see table 1
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 50 mA
  • Switching Frequency: 100 Hz
  • Response Time: < 5 ms
  • On-/Off-Delay (RS-232): 0 to 1 s
  • Temperature Drift: < 50 µm/K
  • Temperature Range: -13°F to 140°F
  • Number of Switching Outputs: 2
  • Switching Output Voltage Drop: < 1.5 V
  • Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes

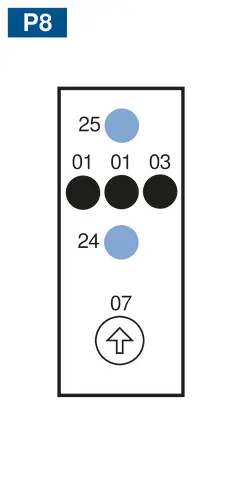

  • Teach Mode: HT, VT, FT, TP
  • Transmission rate: 9,600 Bd
  • Protection Class: III
  • FDA Accession Number: 1120728-000
  • Setting Method: Teach-In
  • Housing Material: Plastic, ABS, Plastic, PC
  • Degree of Protection: IP67
  • Connection: M12 × 1; 4-pin
  • Optic Cover: Plastic, PMMA
  • Weight: 43 g
  • MTTFd (EN ISO 13849-1): 918.59 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • Error Output: yes
  • PNP NO: yes
  • RS-232 with Adapterbox: yes
  • External teach-in input: yes

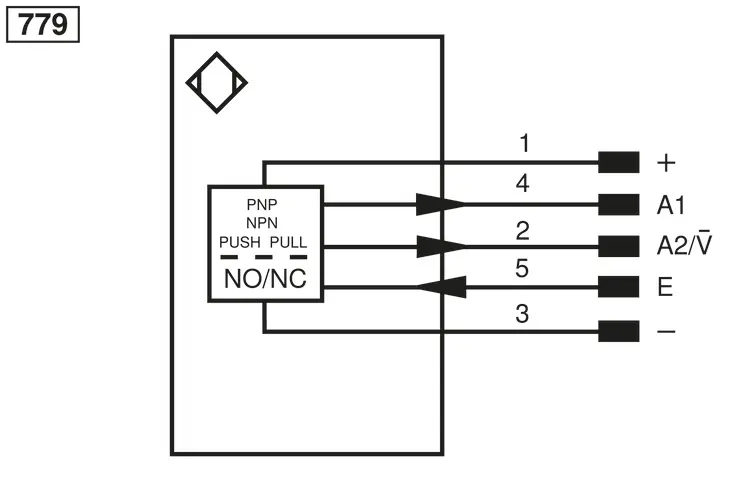

  • Output: Error Output, Push-pull, NPN, PNP
  • Circuit: NC, NC/NO, NO
  • Other parameters: Exposure time, Laser light, Switching hysteresis, Teach-in mode, Off-delay, On-delay
  • Detection Range: 60 mm, 660 mm
  • Spot Size: 0,5 x 1,2 mm, 2 x 5,5 mm
  • Complementary Products: Protective Housing ZSV-0x-01, Adapterbox A232, Set Protective Housing ZSP-NN-02, Software, Dust extraction tube

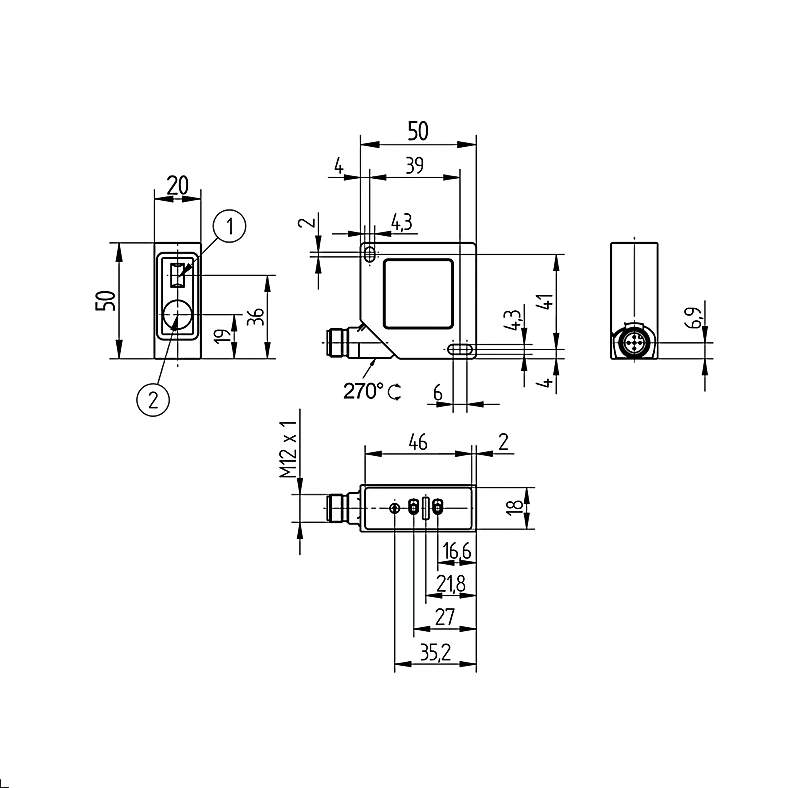

These sensors work with a high resolution CMOS line and DSP technology and calculate the distance via an angle measurement. This virtually eliminates switching point differences caused by material, color and brightness. Two independent switching outputs are available, at which two switching thresholds and one on-delay or off-delay time can be set in 10 ms increments. Sensor functions can be activated and values can be output via the RS-232 interface.
