Wenglor OCP662X0080 Laser Distance Sensor Triangulation

Laser Distance Sensor Triangulation.

$805.00
Part Number
  • OCP662X0080
Highlights...

Features

  • CMOS line array
  • Highly accurate switching distance
  • Minimal switching hysteresis
  • Special coated optics
  • Range: 660 mm
  • Setting Range: 60 to 660 mm
  • Switching Hysteresis: < 1 %
  • Light Source: Laser (red)
  • Wavelength: 655 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: see table 1
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 50 mA
  • Switching Frequency: 100 Hz
  • Response Time: < 5 ms
  • On-/Off-Delay (RS-232): 0 to 1 s
  • Temperature Drift: < 50 µm/K
  • Temperature Range: -13°F to 140°F
  • Number of Switching Outputs: 2
  • Switching Output Voltage Drop: < 1.5 V
  • Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Teach Mode: HT, VT, TP
  • Transmission rate: 38,400 Bd
  • Protection Class: III
  • FDA Accession Number: 1120728-000
  • Setting Method: Teach-In
  • Housing Material: Plastic, ABS, Plastic, PC
  • Coated Optics: yes
  • Degree of Protection: IP67

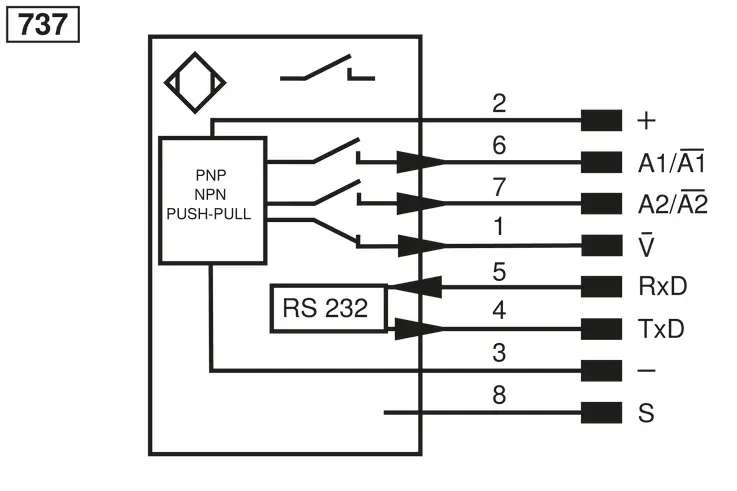

  • Connection: M12 × 1; 8-pin
  • Optic Cover: Plastic, PMMA
  • Weight: 74 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • Error Output: yes
  • PNP NO: yes
  • RS-232 Interface: yes
  • Output: Error Output, Push-pull, NPN, PNP
  • Circuit: NC, NC/NO, NO
  • Other parameters: Off-delay, On-delay, Exposure time, Switching hysteresis, Emitted light, Teach-in mode
  • Detection Range: 60 mm, 660 mm
  • Spot Size: 0,5 × 1,2 mm, 2 × 5,5 mm
  • Complementary Products: Interface Cable S232W3, Protective Housing ZSV-0x-01, Set Protective Housing ZSP-NN-02, Software, Dust extraction tube
These sensors work with a high resolution CMOS line and DSP technology and calculate the distance via an angle measurement. This virtually eliminates switching point differences caused by material, color and brightness. Two independent switching outputs are available, at which two switching thresholds and one on-delay or off-delay time can be set in 10 ms increments. Sensor functions can be activated and values can be output via the RS-232 interface.
