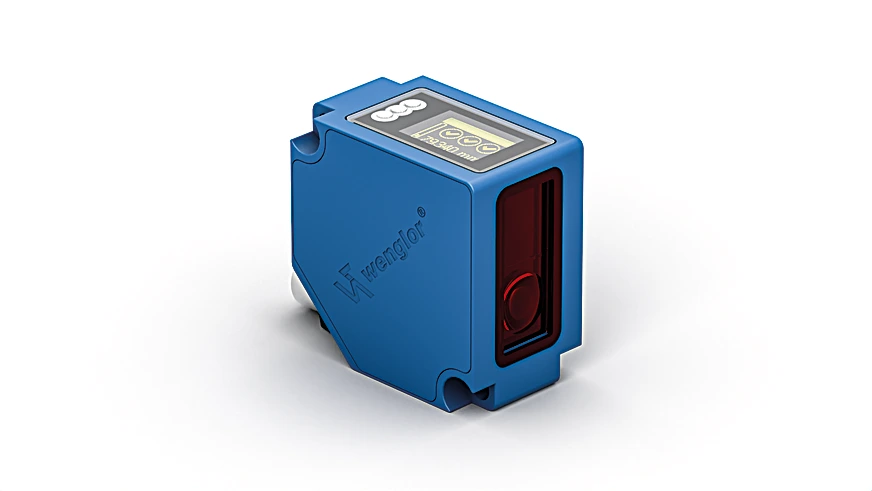

Wenglor OCP662P0150P Laser Distance Sensor Triangulation

Laser Distance Sensor Triangulation.

$1,395.00
Part Number
  • OCP662P0150P
Highlights...

Features

  • Industrial Ethernet
  • Measured value independent of material, color and brightness
  • Web server and graphic display for simple operation
  • CMOS line array
  • Working Range: 60 to 660 mm
  • Measuring Range: 600 mm
  • Reproducibility maximum: 70 to 1,000 µm
  • Linearity Deviation: 100 to 1,000 µm
  • Light Source: Laser (red)
  • Wavelength: 655 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: 3.6 × 0.9 mm
  • Port Type: 100BASE-TX
  • PoE Class: 1
  • Output rate: 330 /s
  • Temperature Drift: < 50 µm/K
  • Temperature Range: -13°F to 122°F
  • Reverse Polarity Protection: yes
  • Interface: PROFINET
  • Protection Class: III
  • Setting Method: Menu (OLED), Web server
  • Housing Material: Zinc diecasting, Plastic, PMMA
  • Degree of Protection: IP68

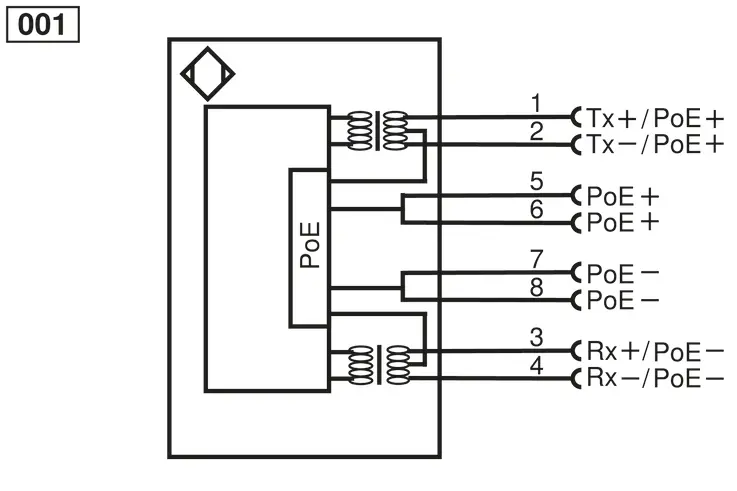

  • Connection: M12 × 1; 8-pin, X-cod.
  • Optic Cover: Plastic, PMMA
  • Weight: 259 g
  • MTTFd (EN ISO 13849-1): 350.69 a
  • Scope of delivery: 1 × BEF-SET-38 mounting set, 1 × initial start-up instructions, 1 × sensor
  • PROFINET-I/O, CC-B: yes
  • Other parameters: Resolution, Output rate, Exposure time, Filter, Laser light, Offset, Teach-in mode
  • Complementary Products: Midspan Adapter Z0029, Switch/Junction with PoE ZAC50xN0x, Protective Housing ZNNS001, ZNNS002
These sensors work with a high-resolution CMOS line and DSP technology and determine distance using angular measurement. Sensors with Industrial Ethernet make the analog and digital input cards at control units unnecessary, as all service and measurement data is read, analyzed and processed in the control unit in real time, without the need for conversion. Power over Ethernet connects data transfer and power supply in one cable and thus reduces the wiring effort.
